SEAT HEATER CONTROL (for Power Seat): Components

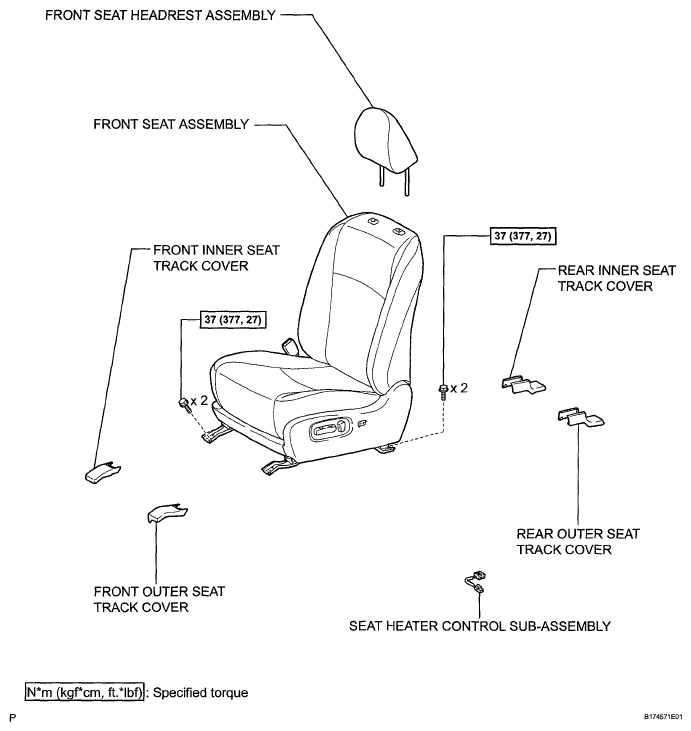

Fig 1: Seat Heater Control Replacement Components With Torque Specifications

G05422005

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
