Rear No. 2 Seat Assembly: Reassembly

1. Temporarily install the 2 bolts <C>, 2 washers and the No. 2 seat cushion frame sub-assembly.
2. Temporarily install the 2 bolts < b > and the 2 bushes.
3. Temporarily install the 2 nuts, 2 bolts <A>, 2 springs and the 2 E-rings.
4. Tighten the 2 nuts, 2 bolts < b > and the 2 bolts <C> to install the No. 2 seat cushion frame sub-assembly.

Fig 1: Identifying No. 2 Seat Cushion Frame Sub-Assembly And Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: Nut

18 N*m (184 kgf*cm, 13 ft.*lbf)

Bolt < b >, Bolt <C>

21 N*m (214 kgf*cm, 16 ft.*lbf)

1. Connect the 2 cable clamps to install the No. 1 rear seat lock cable assembly RH.

Fig 2: Identifying No. 1 Rear Seat Lock Cable Assembly RH And Cable Clamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the 2 cable clamps and install the No. 2 rear seat cushion lock cable assembly RH.
2. Install a new clamp.

Fig 3: Identifying No. 2 Rear Seat Cushion Lock Cable Assembly RH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the 2 cable clamps to install the No. 1 rear seat lock cable assembly LH.

Fig 4: Identifying No. 1 Rear Seat Lock Cable Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the 2 cable clamps and install the No. 2 rear seat cushion lock cable assembly LH.
2. Install a new clamp.

Fig 5: Identifying No. 2 Rear Seat Cushion Lock Cable Assembly LH And Clamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 8 claws to install the 4 rear seatback edge protectors.

Fig 6: Identifying Rear Seatback Edge Protectors And Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear No. 2 seat headrest assembly RH with the 3 nuts.

   Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

2. Connect the 2 cable clamps.
   Fig 7: Locating Rear No. 2 Seat Headrest Assembly RH And Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear No. 2 seat headrest cover RH with the 2 screws.

Fig 8: Identifying Rear No. 2 Seat Headrest Cover RH And Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear No. 2 seat headrest assembly LH with the 3 nuts.

   Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

2. Connect the 2 cable clamps.
   Fig 9: Identifying Rear No. 2 Seat Headrest Assembly LH And Cable Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear No. 2 seat headrest cover LH with the 2 screws.

Fig 10: Identifying Rear No. 2 Seat Headrest Cover LH And Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the guide.
2. Install the No. 2 rear seat reclining cover RH with the screw.

Fig 11: Identifying No. 2 Rear Seat Reclining Cover RH, Guide And Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the guide.
2. Install the No. 2 rear seat reclining cover LH with the screw.

Fig 12: Identifying No. 2 Rear Seat Reclining Cover LH And Guide

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

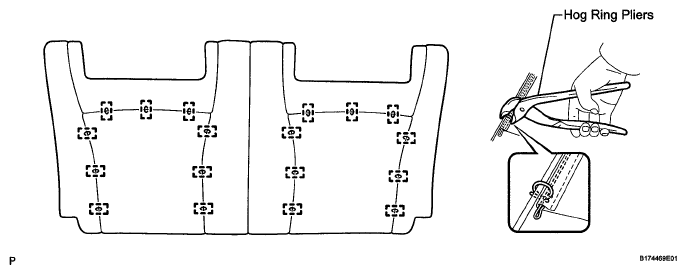

1. Using hog ring pliers, install the rear No. 2 seatback cover sub-assembly with 18 new hog rings.

Fig 13: Identifying Rear No. 2 Seatback Cover Sub-Assembly And Hog Rings

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Temporarily install the rear No. 2 seatback cover with pad to the rear No. 2 seatback frame sub-assembly.
2. Engage the 16 clips and install the rear No. 2 seatback cover.
   Fig 14: Identifying Rear No. 2 Seatback Cover Sub-Assembly And Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 15 hooks.
   Fig 15: Identifying Rear No. 2 Seatback Cover Sub-Assembly And Hooks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

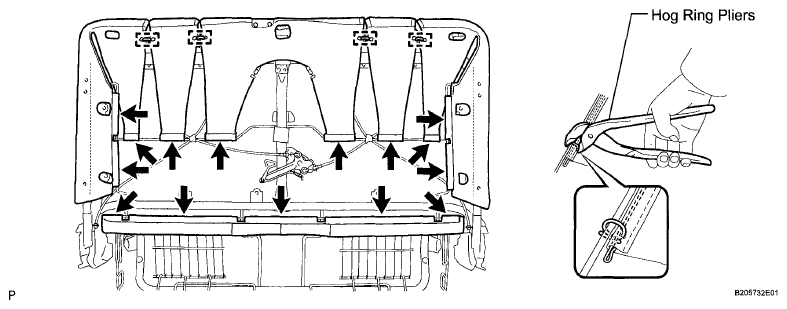

4. Using hog ring pliers, install the rear No. 2 seatback cover with pad with 4 new hog rings.

1. Install the No. 1 rear seat cover bezel to the No. 1 rear side seat band sub-assembly.
   Fig 16: Installing No. 1 Rear Seat Cover Bezel And No. 1 Rear Side Seat Band Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the hook.
3. Install the No. 1 rear seat cover bezel and the No. 1 rear side seat band sub-assembly with the 2 screws.
   Fig 17: Identifying Rear No. 2 Seat Handle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 3 hooks.
   Fig 18: Identifying No. 2 Seatback Board Sub-Assembly And Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 7 clips to install the No. 2 seatback board sub-assembly.

1. Connect the 2 cable clamps as shown in the illustration.
   Fig 19: Identifying Rear No. 2 Seat Handle And Hooks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new clamp.
   Fig 20: Identifying Rear No. 2 Seat Handle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear No. 2 seat handle with the 2 screws.

Fig 21: Identifying Rear No. 2 Seat Handle And Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 guides.
2. Engage the claw to install the rear seat lock striker cover.

Fig 22: Identifying Rear Seat Lock Striker Cover And Claw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Attach the fastener.
2. Install the seat track handle with the 2 new clips.
   Fig 23: Removing No. 1 Rear Side Seat Band Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

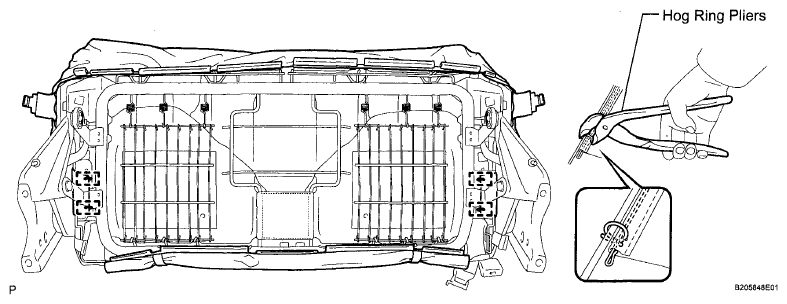

1. Using hog ring pliers, install the rear No. 2 seat cushion cover sub-assembly with 14 new hog rings.
   Fig 24: Identifying Rear No. 2 Seat Cushion Cover Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Be careful not to damage the cover.
   • When installing the hog rings, take care to minimize wrinkles as much as possible.

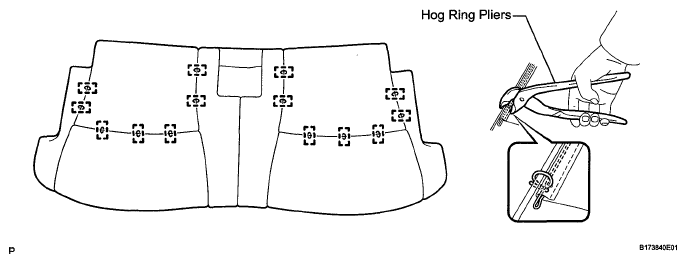

1. Using hog ring pliers, install 4 new hog rings.
   Fig 25: Installing Hog Rings

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Be careful not to damage the cover.
   • When installing the hog rings, take care to minimize wrinkles as much as possible.

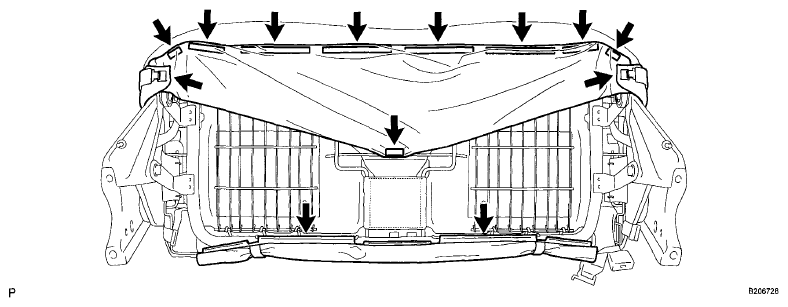

2. Engage the 13 hooks to install the rear No. 2 seat cushion cover with pad.

Fig 26: Installing No. 1 Rear Seat Cover Bezel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 2 seat hinge cover RH with the 2 screws.

Fig 27: Identifying Rear No. 2 Seat Cushion Cover And Pad

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the reclining cover protector RH with the 2 screws.

Fig 28: Identifying Reclining Cover Protector RH And Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 2 seat hinge cover LH with the 2 screws.

Fig 29: Identifying No. 2 Seat Hinge Cover LH And Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the reclining cover protector LH with the 2 screws.

Fig 30: Identifying Reclining Cover Protector LH And Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
