REAR NO. 1 SEAT ASSEMBLY (for RH Side): Reassembly

  1. INSTALL REAR SEATBACK STOPPER SUB-ASSEMBLY
    1. Temporarily install the rear seatback stopper sub-assembly with the nut.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      Fig 1: Identifying Rear Seatback Stopper Sub-Assembly
      G06113671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 4 cable clamps.
    Fig 2: Locating Rear Seatback Stopper Sub-Assembly And Cable Clamps
    G06113670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR SEATBACK LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Engage the guide.
    2. Install the rear seatback lock control lever sub-assembly with the 2 nuts.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

    Fig 3: Identifying Rear Seatback Lock Control Lever Sub-Assembly And Nuts
    G06113669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR SEAT CUSHION SPRING ASSEMBLY
    1. Using a T45 "TORX" socket, tighten the 4 "TORX" bolts, bushes and install the rear seat cushion spring assembly.

      Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

    Fig 4: Identifying Rear Seat Cushion Spring Assembly, Bolts And Bushes
    G06113668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY (w/o Rear No. 2 Seat)
    1. Connect the 4 cable clamps to install the No. 1 rear seat reclining control cable sub-assembly.
  5. INSTALL REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY (w/ Rear No. 2 Seat)
    1. Connect the 6 cable clamps to install the No. 1 rear seat reclining control cable sub-assembly.
      Fig 5: Identifying Rear Seat Reclining Control Cable Sub-Assembly
      G06113666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 6: Identifying Rear Seat Reclining Control Cable Sub-Assembly (w/ Rear No.2 Seat)
      G06113667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the clamp.
  6. INSTALL SEAT TRACK CONTROL CABLE ASSEMBLY
    1. Connect the 2 cable clamps to install the seat track control cable assembly.
    2. Install the 2 clamps.
    Fig 7: Locating Seat Track Control Cable Assembly And Claw
    G06113665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR SEAT HOOK
    1. Engage the claw to install the rear seat hook to the seat adjuster control cable assembly.
  8. INSTALL SEAT ADJUSTER CONTROL CABLE ASSEMBLY
    1. Engage the claw.
      Fig 8: Identifying Rear Seat Hook And Claw
      G06113664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 9: Identifying Seat Adjuster Control Cable Assembly With Rear Seat Hook
      G06113663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 cable clamps to install the seat adjuster control cable assembly.
    3. Engage the hook to install the rear seat hook to the rear seat cushion spring assembly.
  9. INSTALL NO. 1 REAR SEAT COVER
    1. Engage the hook to install the No. 1 rear seat cover.

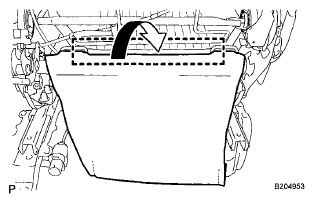

    Fig 10: Installing No. 1 Rear Seat Cover
    G06113681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 1 REAR SEAT RECLINING COVER
    1. Engage the 2 guides.
    2. Install the rear seat reclining cover with the screw.
    Fig 11: Identifying No. 1 Rear Seat Reclining Cover And Screw
    G06113661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL RECLINING ADJUSTER INSIDE COVER RH
    1. Engage the guide.
    2. Engage the claw to install the reclining adjuster inside cover RH.
    Fig 12: Identifying Reclining Adjuster Inside Cover RH, Claw, Screw And Guide
    G06113660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR SEATBACK INNER COVER
    1. Engage the claw.
    2. Install the rear seatback inner cover with the 2 screws.
    Fig 13: Identifying Rear Seatback Inner Cover And Screw
    G06113659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL REAR SEAT RECLINING INNER FRONT COVER
    1. Install the rear seat reclining inner front cover with the screw.
    Fig 14: Identifying Rear Seat Reclining Inner Front Cover And Screw
    G06113658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR SEAT RECLINING INNER REAR COVER
    1. Engage the claw.
    2. Install the rear seat reclining inner rear cover with the screw.

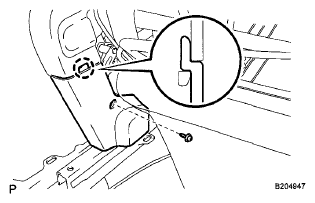

    Fig 15: Identifying Rear Seat Reclining Inner Rear Cover And Screw
    G06113686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR SEAT RECLINING INNER PROTECTOR
    1. Engage the claw to install the rear seat reclining inner protector.
    Fig 16: Identifying Rear Seat Reclining Inner Protector And Claw
    G06113656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL SEPARATE TYPE REAR NO. 1 SEATBACK COVER
    1. Using hog ring pliers, install the separate type rear No. 1 seatback cover with 10 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.

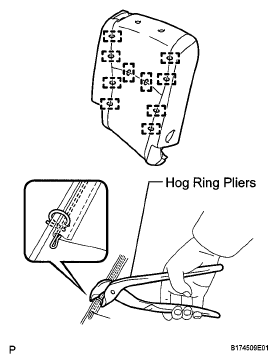

      Fig 17: Installing Separate Type Rear No. 1 Seatback Cover
      G05421787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL REAR NO. 1 SEATBACK COVER WITH PAD (w/o Rear No. 2 Seat)
    1. Engage the hook to install the rear No. 1 seatback cover with pad.
    Fig 18: Locating Rear No. 1 Seatback Cover With Pad
    G05421788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL REAR NO. 1 SEATBACK COVER WITH PAD (w/ Rear No. 2 Seat)
    1. Using hog ring pliers, install 2 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.
    2. Engage the hook to install the rear No. 1 seatback cover with pad.

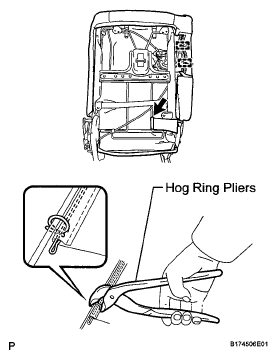

    Fig 19: Identifying Rear No. 1 Seatback Cover With Pad
    G05421789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY RH
    1. Engage the 2 claws to install the rear No. 1 seat headrest support assembly RH.
      Fig 20: Identifying Rear No. 1 Seat Headrest Support Assembly RH And Claws
      G05421771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY LH
    1. Engage the 2 claws to install the rear No. 1 seat headrest support assembly LH.
    Fig 21: Identifying Rear No. 1 Seat Headrest Support Assembly LH And Claws
    G05421770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY (w/o Rear No. 2 Seat)
    1. Engage the 2 guides.
    2. Engage the 2 clips.
    3. Engage the 20 claws to install the rear seatback board carpet assembly as shown in the illustration.

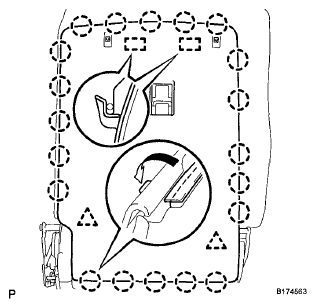

    Fig 22: Identifying Rear Seatback Board Carpet Assembly And Claws
    G06113693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY (w/ Rear No. 2 Seat)
    1. Engage the 2 guides.
    2. Engage the 2 clips.
    3. Engage the 18 claws to install the rear seatback board carpet assembly as shown in the illustration.
    Fig 23: Removing Rear Seatback Board Carpet Assembly (w/ Rear No.2 Seat)
    G05421769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Connect the rear seat lock control cable as shown in the illustration.

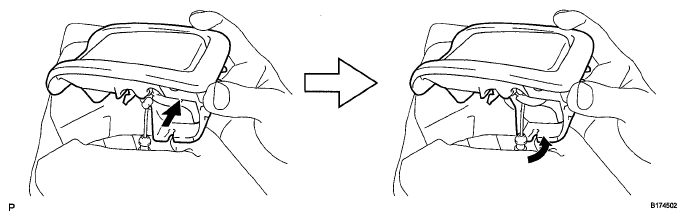

      Fig 24: Connecting Rear Seat Lock Control Cable
      G05421794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the guide.
    3. Install the rear seat lock control lever sub-assembly with the 2 screws.
    Fig 25: Identifying Rear Seat Lock Control Lever Sub-Assembly With Guide
    G05421766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL REAR SEAT LOCK STRIKER COVER
    1. Engage the guide.
    2. Engage the claw to install the rear seat lock striker cover.

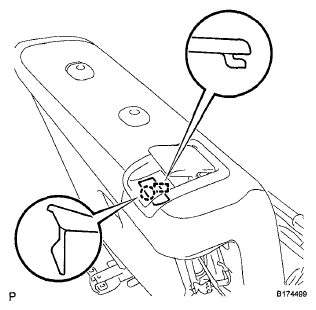

    Fig 26: Identifying Rear Seat Lock Striker Cover And Guide
    G06113697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL NO. 1 REAR SEAT BEZEL COVER (w/ Rear No. 2 Seat)
    1. Install the No. 1 rear seat bezel cover with the 3 screws.
    Fig 27: Identifying No. 1 Rear Seat Bezel Cover (w/ Rear No. 2 Seat)
    G05421764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL NO. 1 REAR SEATBACK LOCK STRIKER COVER (w/ Rear No. 2 Seat)
    1. Engage the 2 craws to install the No. 1 rear seatback lock striker cover.
    Fig 28: Identifying No. 1 Rear Seatback Lock Striker Cover And Claws
    G05421798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL REAR SEAT LOCK STRIKER COVER CAP (w/ Rear No. 2 Seat)
    1. Engage the 4 craws to install the 2 rear seat lock striker cover caps.
    Fig 29: Identifying Rear Seat Lock Striker Cover Caps And Claws
    G05421799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL RECLINING REMOTE CONTROL LEVER KNOB (w/ Rear No. 2 Seat)
    1. Install the remote control lever knob with the screw as shown in the illustration.
    Fig 30: Locating Reclining Remote Control Lever Knob (w/ Rear No. 2 Seat)
    G05421800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL REAR SEATBACK COVER
    1. Engage the 4 claws to install the rear seatback cover.
    Fig 31: Identifying Rear Seatback Cover And Claws
    G06113641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL TONNEAU COVER HOOK HOLDER
    1. Install the 2 tonneau cover hook holders with the 2 screws.
    Fig 32: Identifying Tonneau Cover Hook Holders And Screw
    G06113640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL REAR SEAT ARMREST ASSEMBLY
    1. Install the rear seat armrest assembly with the bolt, washer and wave washer.

      Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)

    Fig 33: Identifying Rear Seat Armrest Assembly, Washer And Bolt
    G05421803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL NO. 1 REAR SEAT ARMREST CAP
    1. Engage the 2 claws to install the No. 1 rear seat armrest cap.
    Fig 34: Identifying No. 1 Rear Seat Armrest Cap And Claws
    G05421804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL SEPARATE TYPE REAR NO. 1 SEAT CUSHION COVER
    1. Using hog ring pliers, install the separate type rear No. 1 seat cushion cover with 11 new hog rings.
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.

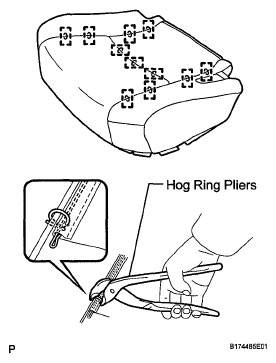

    Fig 35: Installing Rear No. 1 Seat Cushion Cover And Hog Rings
    G05421805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL NO. 2 REAR SEAT COVER
    1. Engage the 2 hooks to install the No. 2 rear seat cover.
    Fig 36: Locating No. 2 Rear Seat Cover And Hooks
    G06113636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL NO. 1 REAR SEAT COVER RH
    1. Engage the 4 hooks to install the No. 1 rear seat cover RH.
    Fig 37: Locating No. 1 Rear Seat Cover RH And Hooks
    G06113635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL NO. 1 REAR SEAT COVER LH
    1. Engage the 2 hooks to install the No. 1 rear seat cover LH.
    Fig 38: Locating No. 1 Rear Seat Cover LH And Hooks
    G06113634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL REAR NO. 1 SEAT CUSHION COVER WITH PAD
    1. Using hog ring pliers, install 4 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.
      Fig 39: Installing Hog Rings
      G06113710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 12 hooks.

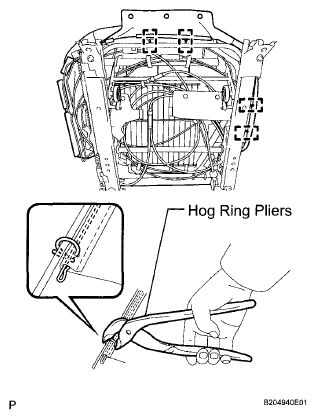

      Fig 40: Locating No. 1 Rear Seat Assembly And Hooks
      G06113711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 3 buttons.

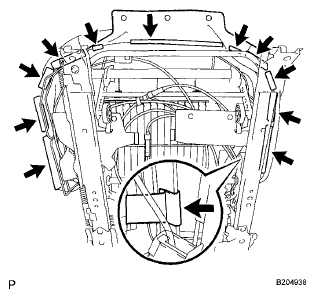

      Fig 41: Locating No. 1 Rear Seat Assembly And Buttons
      G06113631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using hog ring pliers, install 2 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.
    5. Engage the 2 hooks.

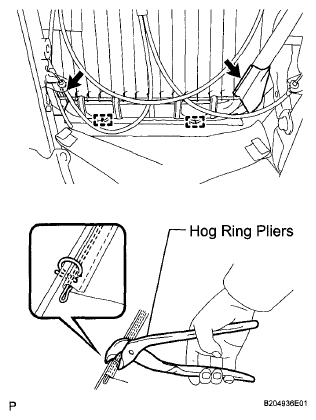

      Fig 42: Locating No. 1 Rear Seat Assembly And Hooks
      G06113713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Engage the 2 hooks to the rear No. 1 seat cushion cover with pad.
    Fig 43: Locating Rear No. 1 Seat Cushion Cover With Pad And Hooks
    G06113629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL REAR SEAT CUSHION MOULDING RH
    1. Engage the guide.
    2. Engage the 5 claws.
    3. Install the rear seat cushion moulding RH with the screw.
    Fig 44: Identifying Rear Seat Cushion Moulding RH And Screws
    G06113628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL REAR SEAT CUSHION MOULDING LH
    1. Engage the guide.
    2. Engage the 4 claws.
    3. Install the rear seat cushion moulding LH with the 2 screws.
    Fig 45: Installing Rear Seat Cushion Moulding LH And Guide
    G05421750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL SEAT ADJUSTER COVER CAP
    1. Engage the 2 claws to install the seat adjuster cover cap.
    Fig 46: Locating Seat Adjuster Cover Cap And Claw
    G05421812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE
    1. Install the No. 1 reclining adjuster release handle with the 3 screws.
    Fig 47: Identifying No. 1 Reclining Adjuster Release Handle And Screws
    G05421748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL REAR SEAT RECLINING UPPER COVER
    1. Engage the 3 claws to install the rear seat reclining upper cover.
  43. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY  (See REMOVAL )
Fig 48: Identifying Rear Seat Reclining Upper Cover And Claws
G05421814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
