REAR NO. 1 SEAT ASSEMBLY (for RH Side): Components

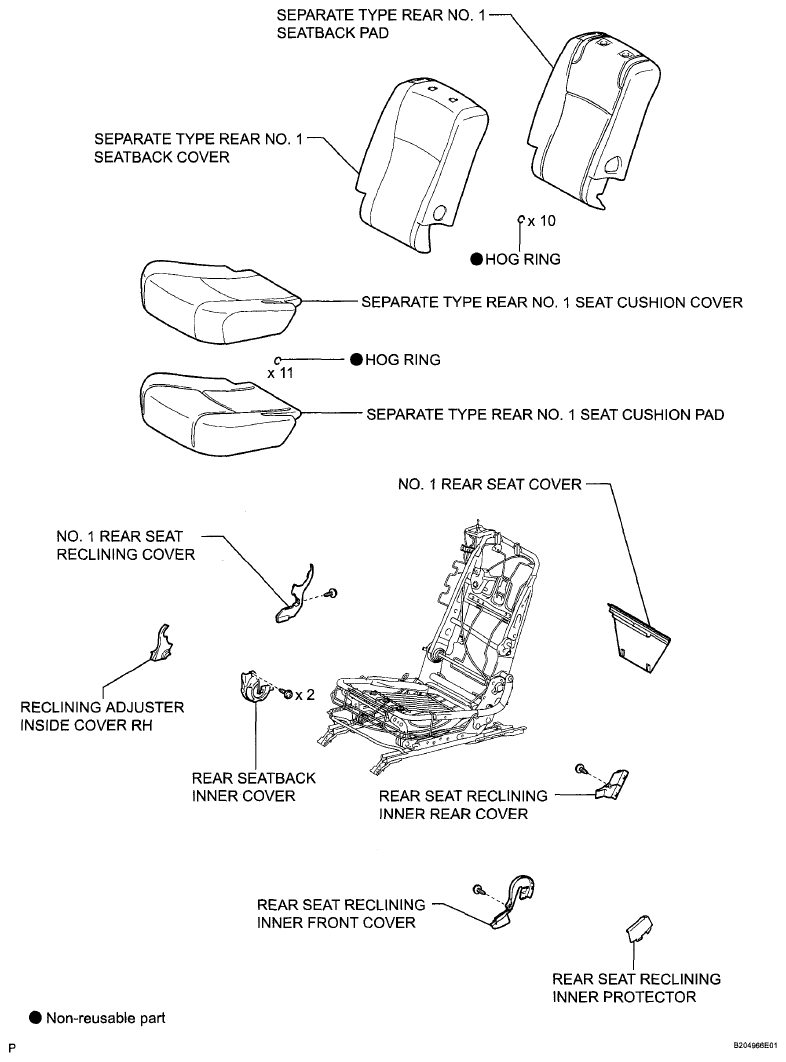

Fig 1: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

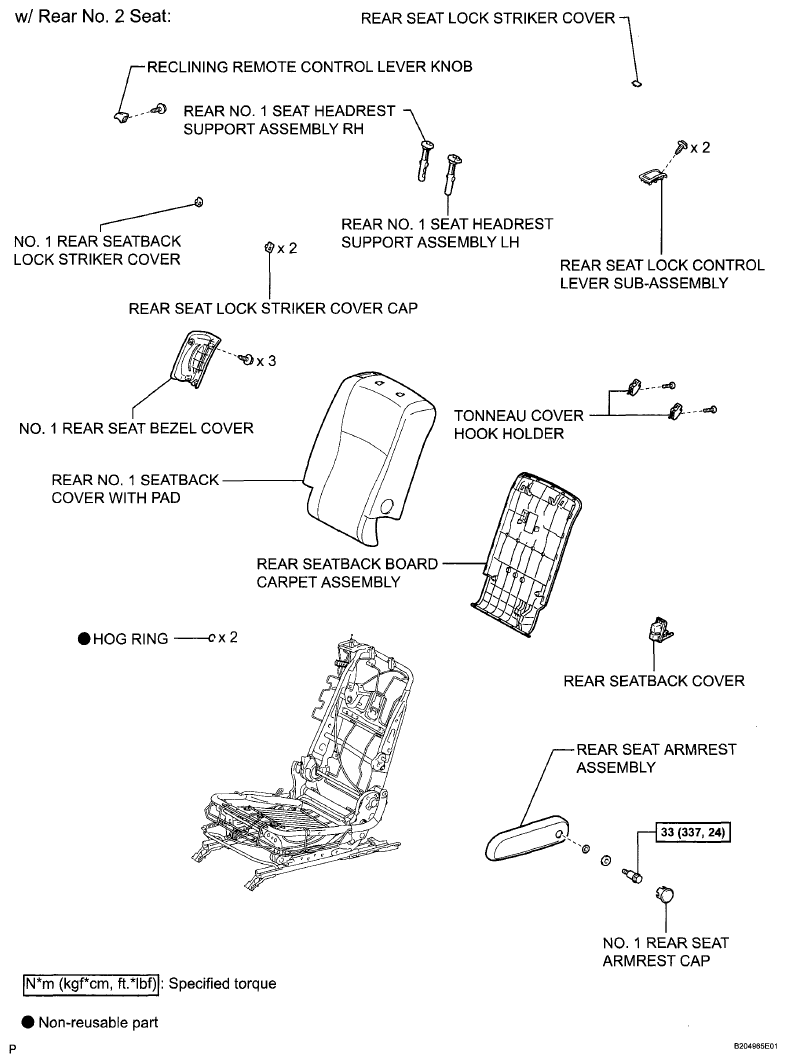

Fig 2: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

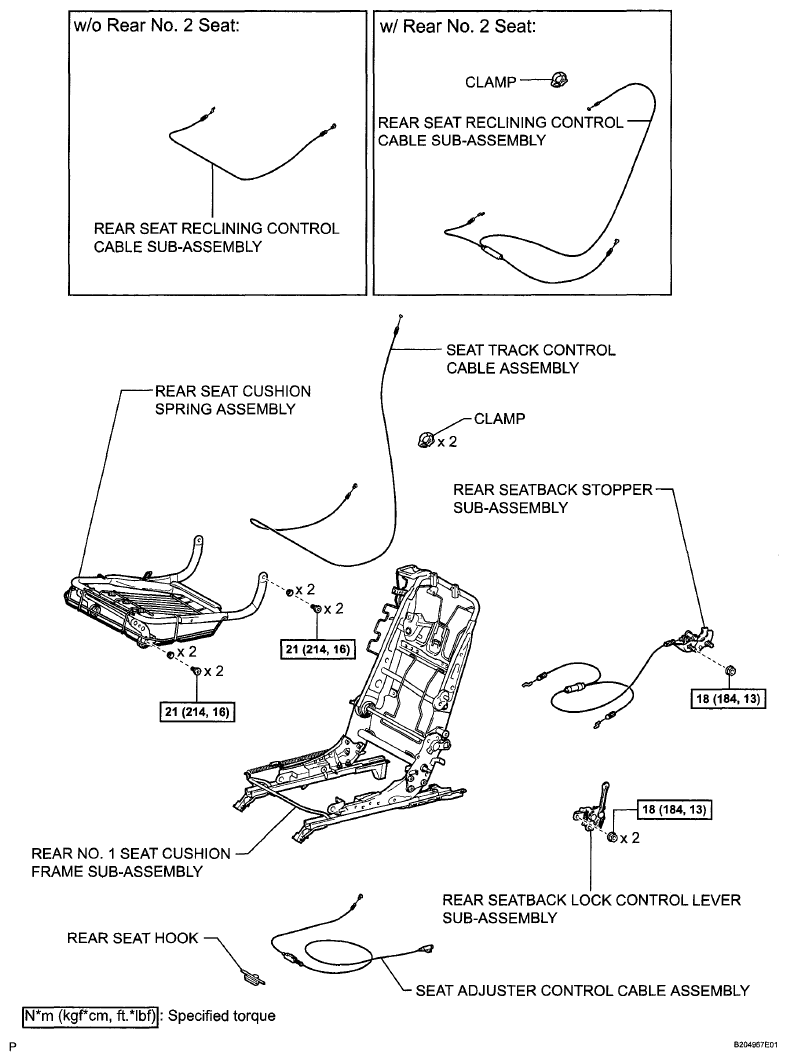

Fig 3: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

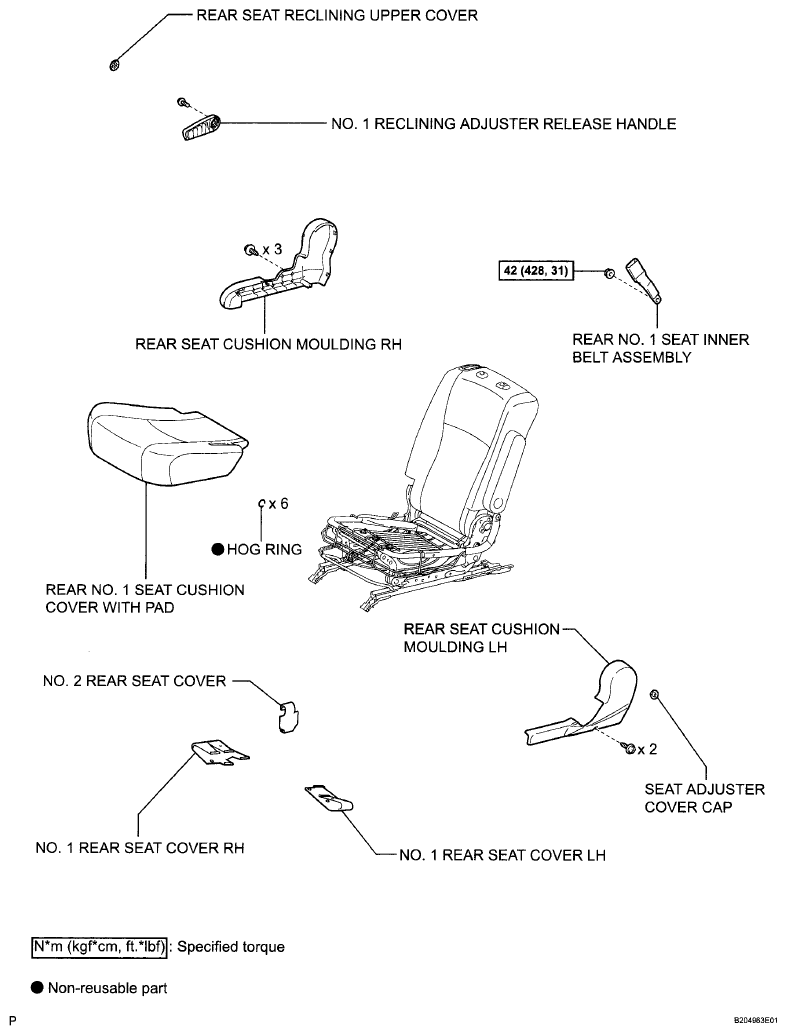

Fig 4: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (4 Of 6)

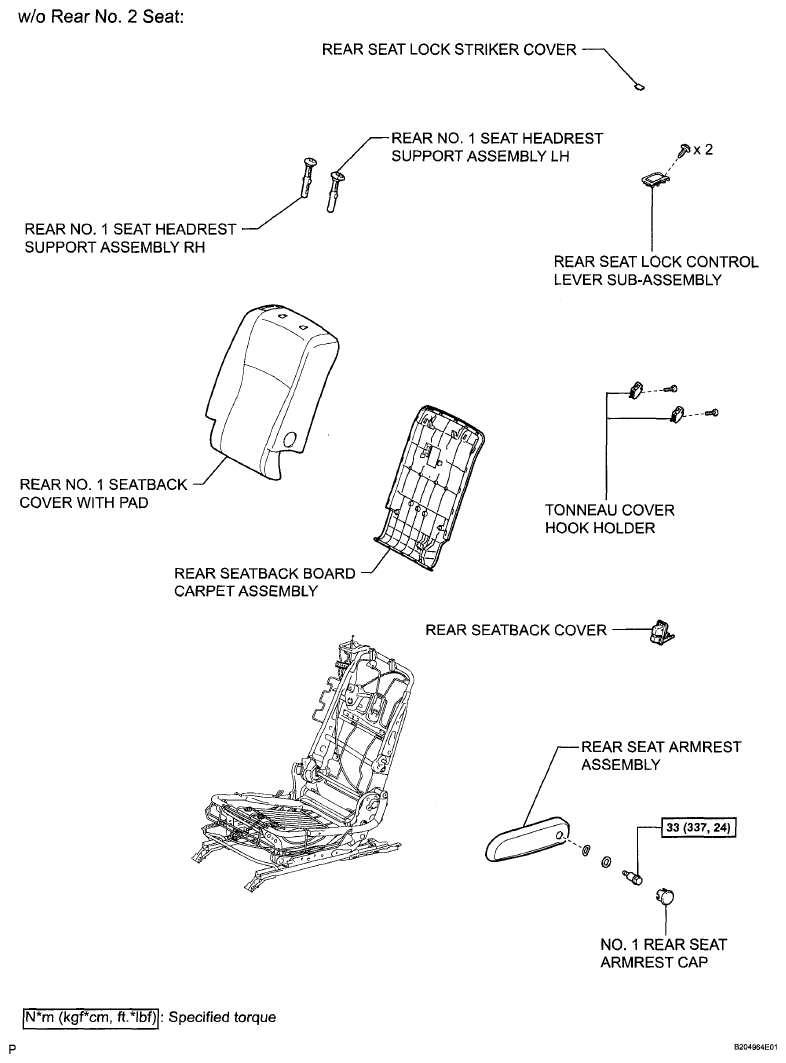

Fig 5: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (5 Of 6)

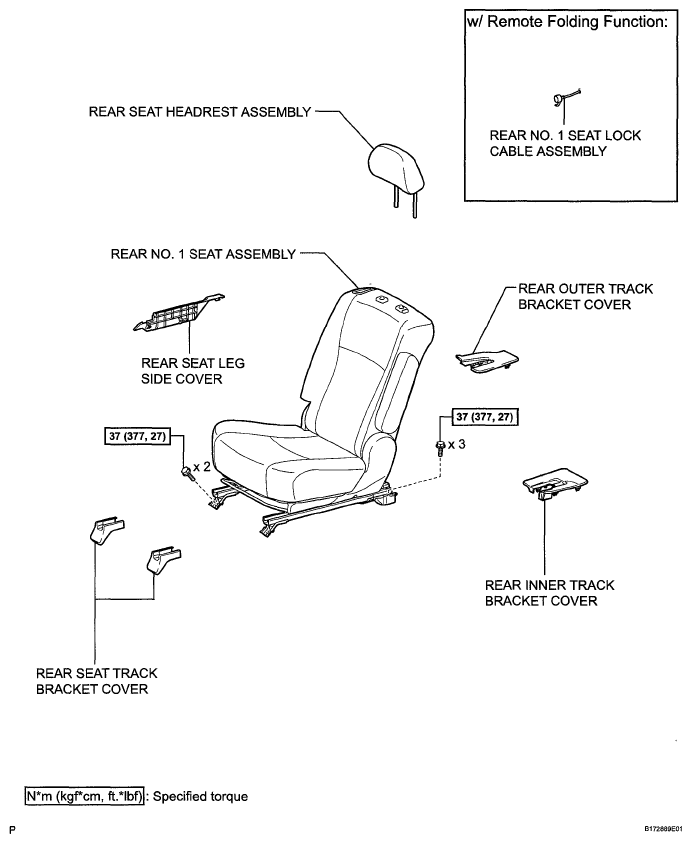

Fig 6: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (6 Of 6)
