REAR NO. 1 SEAT ASSEMBLY (for LH Side): Disassembly: Notes

  1. REMOVE REAR SEAT RECLINING UPPER COVER
    1. Using a screwdriver wrapped with protective tape, disengage the 3 claws and remove the rear seat reclining upper cover.
    Fig 1: Removing Rear Seat Reclining Upper Cover
    G05421639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE
    1. Remove the 3 screws and the No. 1 reclining adjuster release handle.
      Fig 2: Removing No. 1 Reclining Adjuster Release Handle And Screws
      G06113486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEAT CUSHION MOULDING LH
    1. Remove the screw.
    2. Disengage the 5 claws.
    3. Disengage the guide and remove the rear seat cushion moulding LH.
    Fig 3: Identifying Rear Seat Cushion Moulding LH, Claws And Screws
    G06113487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SEAT ADJUSTER COVER CAP
    1. Using a screwdriver wrapped with protective tape, disengage the 2 claws and remove the seat adjuster cover cap.
    Fig 4: Removing Seat Adjuster Cover Cap
    G05421642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT CUSHION MOULDING RH
    1. Remove the screw.
    2. Disengage the 6 claws and remove the rear seat cushion moulding RH.
    Fig 5: Removing Rear Seat Cushion Moulding RH And Claws
    G05421643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SEAT ADJUSTER COVER CAP
    1. Using a screwdriver wrapped with protective tape, disengage the 2 claws and remove the seat adjuster cover cap.
    Fig 6: Removing Seat Adjuster Cover Cap
    G06113490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SEAT ADJUSTER COVER CAP
    1. Using a screwdriver wrapped with protective tape, disengage the 2 claws and remove the seat adjuster cover cap.
    Fig 7: Removing Seat Adjuster Cover Cap
    G06113491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CENTER PROTECTOR COVER
    1. Remove the screw.
    2. Disengage the claw and guide.
      Fig 8: Identifying Claw And Guide
      G06113492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the screw and disconnect the rear side seat band sub-assembly.
    4. Remove the center protector cover.
    Fig 9: Identifying Rear Side Seat Band Sub-Assembly
    G06113493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEAT NO. 2 LEG SIDE COVER
    1. Disengage the 2 claws and remove the rear seat No. 2 leg side cover.
    Fig 10: Identifying Rear Seat No. 2 Leg Side Cover And Claws
    G06113494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 SEAT LEG COVER
    1. Remove the 5 screws and the No. 2 seat leg cover.
    Fig 11: Identifying No. 2 Seat Leg Cover And Screws
    G06113495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR SIDE SEAT BAND SUB-ASSEMBLY
    1. Remove the rear side seat band sub-assembly.
    Fig 12: Identifying Rear Side Seat Band Sub-Assembly
    G06113496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR SEAT 3 POINT TYPE COVER ASSEMBLY
    1. Disengage the 2 claws and remove the rear seat 3 point type cover assembly.
    Fig 13: Identifying Rear Seat 3 Point Type Cover Assembly And Claws
    G06113497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR SEAT CUSHION UNDER COVER
    1. Using a screwdriver wrapped with protective tape, disengage the claw.
    2. Disengage the guide and remove the rear seat cushion under cover.
    Fig 14: Identifying Rear Seat Cushion Under Cover And Guide
    G05421645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 REAR SEAT BEZEL COVER
    1. Remove the screw.
    2. Disengage the 2 guides and remove the No. 2 rear seat bezel cover as shown in the illustration.
    Fig 15: Identifying No. 2 Rear Seat Bezel Cover And Guides
    G05421646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR SEAT LOCK ASSEMBLY
    1. Remove the 2 bolts and the rear seat lock assembly.
    Fig 16: Identifying Rear Seat Lock Assembly And Bolts
    G06113500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR SEAT FRONT CUSHION MOULDING
    1. Remove the screw and the rear seat front cushion moulding.
    Fig 17: Identifying Rear Seat Front Cushion Moulding And Screws
    G06113501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR NO. 1 SEAT CUSHION COVER WITH PAD
    1. Disengage the 2 hooks.
      Fig 18: Identifying Rear No. 1 Seat Cushion Cover With Pad And Hooks
      G05421648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 hooks.
    3. Remove the 2 hog rings.
      Fig 19: Locating Hog Rings And Hooks
      G05421649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 3 buttons.
      Fig 20: Locating Rear No. 1 Seat Cushion Cover Buttons
      G06113504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 12 hooks.

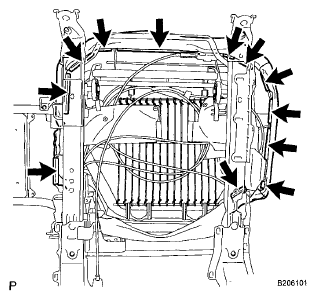

      Fig 21: Locating Rear No. 1 Seat Cushion Cover Hooks
      G06113505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 3 hog rings and the rear No. 1 seat cushion cover with pad.
      Fig 22: Locating Rear No. 1 Seat Cushion Cover Hog Rings
      G05421651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE SEPARATE TYPE REAR NO. 1 SEAT CUSHION COVER
    1. Remove the 11 hog rings and the separate type rear No. 1 seat cushion cover.
    Fig 23: Locating Rear No. 1 Seat Cushion Cover And Hog Ring
    G05421652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 1 REAR SEAT COVER (for LH Side)
    1. Disengage the 4 hooks and remove the No. 1 rear seat cover.

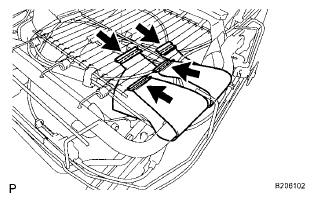

    Fig 24: Removing No. 1 Rear Seat Cover And Hooks
    G06113508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 1 REAR SEAT COVER (for RH Side)
    1. Disengage the 2 hooks and remove the No. 1 rear seat cover.
    Fig 25: Locating No. 1 Rear Seat Cover And Hooks
    G06113509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE NO. 1 REAR SEAT COVER (for Rear Side)
    1. Disengage the 2 hooks and remove the No. 1 rear seat cover.
    Fig 26: Locating No. 1 Rear Seat Cover And Hooks
    G06113510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR SEAT NO. 1 RECLINING COVER
    1. Remove the screw.
    2. Disengage the claw.
    3. Disengage the 2 guides and remove the rear seat No. 1 reclining cover.
    Fig 27: Identifying Rear Seat No. 1 Reclining Cover
    G06113511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE RECLINING ADJUSTER INSIDE COVER LH
    1. Disengage the guide and remove the reclining adjuster inside cover LH.

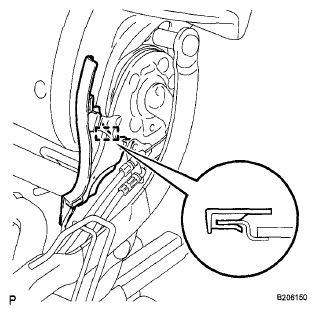

    Fig 28: Identifying Reclining Adjuster Inside Cover LH
    G06113512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE SEAT TRACK UPPER RAIL COVER
    1. Remove the screw.
    2. Disengage the claw and remove the seat track upper rail cover.
    Fig 29: Identifying Seat Track Upper Rail Cover And Claw
    G06113513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE REAR SEAT RECLINING INNER COVER
    1. Remove the screw.
    2. Disengage the guide and remove the rear seat reclining inner cover.
  26. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY  (See REMOVAL )

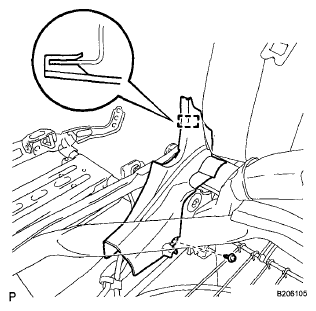

    Fig 30: Identifying Rear Seat Reclining Inner Cover And Guide
    G06113514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE NO. 1 SEAT ARMREST CAP
    1. Using a screwdriver wrapped with protective tape, disengage the 2 claws and remove the No. 1 seat armrest cap.
    Fig 31: Identifying No. 1 Seat Armrest Cap And Claws
    G05421657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE REAR SEAT ARMREST ASSEMBLY
    1. Remove the bolt and the rear seat armrest assembly.
    Fig 32: Identifying Rear Seat Armrest Assembly And Bolt
    G05421658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE TONNEAU COVER HOOK HOLDER
    1. Remove the 2 screws and the 2 tonneau cover hook holders.
    Fig 33: Identifying Tonneau Cover Hook Holders And Screws
    G06113517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REAR SEATBACK COVER
    1. Disengage the 4 claws and remove the rear seatback cover.
    Fig 34: Identifying Rear Seatback Cover And Claws
    G05421697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR SEAT LOCK STRIKER COVER
    1. Using a screwdriver wrapped with protective tape, disengage the claw.
    2. Disengage the guide and remove the rear seat lock striker cover.
    Fig 35: Removing Rear Seat Lock Striker Cover
    G06113519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Remove the 2 screws.
    2. Disengage the guide.
    3. Disconnect the rear seat lock control cable and remove the rear seat lock control lever sub-assembly as shown in the illustration.
    Fig 36: Identifying Rear Seat Lock Control Lever Sub-Assembly
    G06113520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

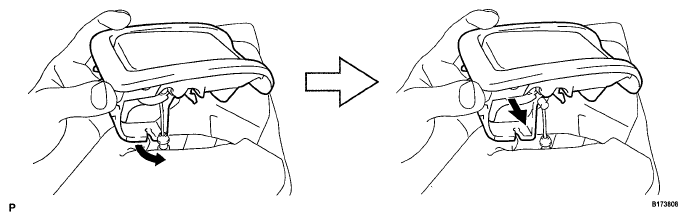

    Fig 37: Removing Rear Seat Lock Control Lever Sub-Assembly
    G05421663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY  (See INSTALLATION )
  34. REMOVE REAR SEATBACK LOWER LOCK BEZEL
    1. Remove the screw.
    2. Disengage the 4 claws and disconnect the rear center seat outer belt cover.
      Fig 38: Identifying Rear Center Seat Outer Belt Cover And Screw
      G06113522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the snap and remove the rear seat track handle as shown in the illustration.
      Fig 39: Removing Rear Seat Track Handle
      G06113523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 screws and the rear seatback lower lock bezel.
    Fig 40: Identifying Rear Seatback Lower Lock Bezel And Screws
    G06113524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE REAR SEATBACK LOCK ASSEMBLY
    1. Remove the 2 bolts and the rear seatback lock assembly.
      Fig 41: Identifying Rear Seatback Lock Assembly And Bolts
      G06113525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY
    1. Disengage the 19 claws as shown in the illustration.
    2. Disengage the 2 clips.
    3. Disengage the 2 guides and remove the rear seatback board carpet assembly.
    Fig 42: Removing Rear Seatback Board Carpet Assembly
    G06113526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY LH
    1. Disengage the 2 claws and remove the rear No. 1 seat headrest support assembly LH.
    Fig 43: Identifying Rear No. 1 Seat Headrest Support Assembly LH And Claws
    G06113527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY RH
    1. Disengage the 2 claws and remove the rear No. 1 seat headrest support assembly RH.
    Fig 44: Identifying Rear No. 1 Seat Headrest Support Assembly RH And Claws
    G06113528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE REAR NO. 1 SEATBACK COVER WITH PAD
    1. Disengage the 2 hooks and the remove rear No. 1 seatback cover with pad.
    Fig 45: Locating Rear No. 1 Seatback Cover With Pad
    G05421685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE SEPARATE TYPE REAR NO. 1 SEATBACK COVER
    1. Remove the 10 hog rings and the separate type rear No. 1 seatback cover.
    Fig 46: Identifying Separate Type Rear No. 1 Seatback Cover
    G05421673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE BELT SUPPORT PLATE
    1. Disengage the 3 claws and remove the belt support plate.
  42. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY  (See INSTALLATION )
    Fig 47: Identifying Belt Support Plate And Claws
    G06121942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE REAR NO. 1 SEAT SHOULDER BELT COVER
    1. Disengage the claw.
    2. Disengage the guide and remove the rear No. 1 seat shoulder belt cover.
    Fig 48: Identifying Rear No. 1 Seat Shoulder Belt Cover And Guide
    G06113532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE REAR NO. 2 SEATBACK COVER
    1. Remove the 2 screws.
    2. Disengage the claw and remove the rear No. 2 seatback cover.
    Fig 49: Locating Rear No. 2 Seatback Cover And Screws
    G05421676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE REAR SEAT CUSHION SIDE COVER
    1. Remove the 2 screws.
    2. Disengage the claw and remove the rear seat cushion side cover.
    Fig 50: Locating Rear Seat Cushion Side Cover And Screws
    G05421677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE NO. 2 REAR SEAT COVER
    1. Remove the No. 2 rear seat cover.

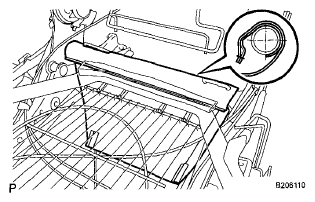

      Fig 51: Removing No. 2 Rear Seat Cover
      G06113535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE NO. 1 REAR SEAT RECLINING CONTROL CABLE
    1. Disengage the 6 control cable clamps and 2 clamps.
    2. Remove the clamp and the No. 1 rear seat reclining control cable.

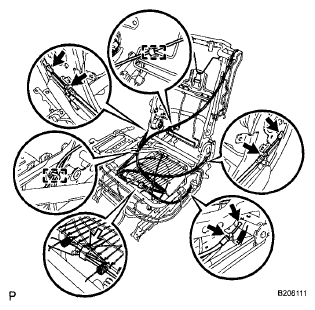

    Fig 52: Locating No. 1 Rear Seat Reclining Control Cable And Clamp
    G06113536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE NO. 2 REAR SEAT RECLINING CONTROL CABLE
    1. Disengage the 4 cable camps and rear seat hook.
    2. Disengage the rear seat hook.
    3. Disengage the claw and remove the No. 2 rear seat reclining control cable.

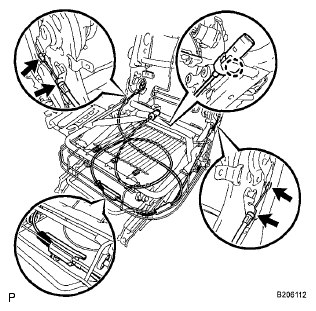

    Fig 53: Locating Cable Camps And Rear Seat Hook
    G06113537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE REAR SEAT HOOK
    1. Disengage the claw and remove the rear seat hook from the No. 2 rear seat reclining control cable.
    Fig 54: Locating No. 2 Rear Seat Reclining Control Cable And Claw
    G06113538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE REAR SEAT CUSHION SPRING ASSEMBLY
    1. Using a T45 "TORX" socket, remove the 4 "TORX" bolts, 2 bushes and the rear seat cushion spring assembly.
    Fig 55: Identifying Rear Seat Cushion Spring Assembly And Bolts
    G06113539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
