Lumbar Support Adjuster Assembly: Components

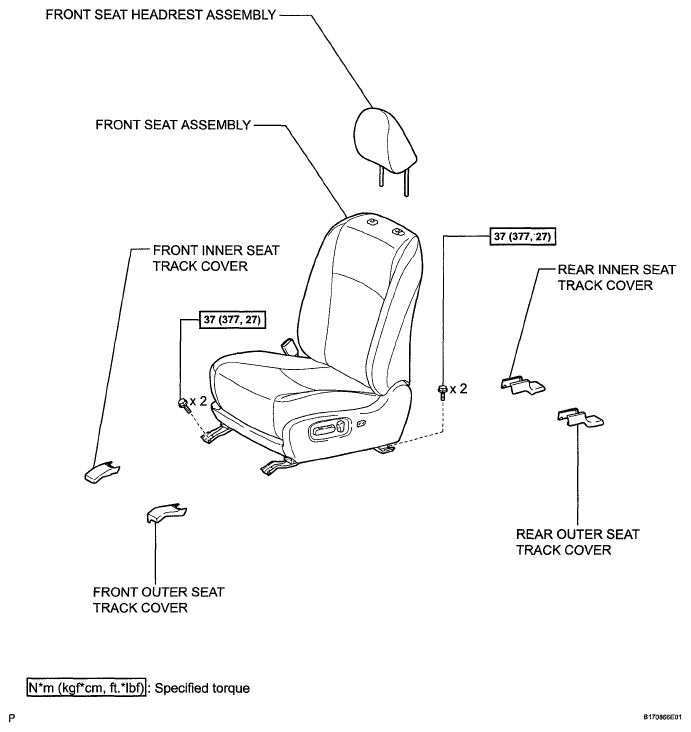

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (1 Of 6)
G05421514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Lumbar Support Adjuster Assembly Replacement Components With Torque Specifications (2 Of 2)
G05421918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
