Roof Drip Side Finish Moulding: Components

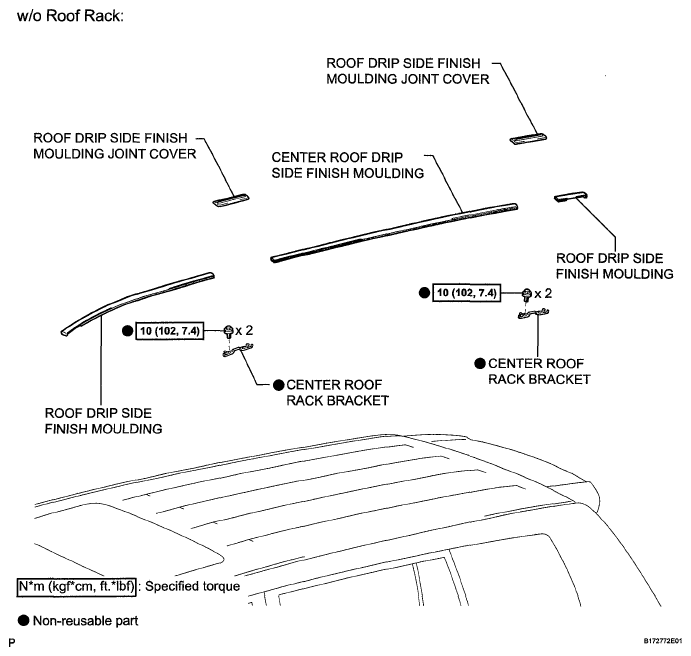

Fig 1: Roof Drip Side Finish Moulding Replacement Components With Torque Specifications (1 Of 2)
G05422495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

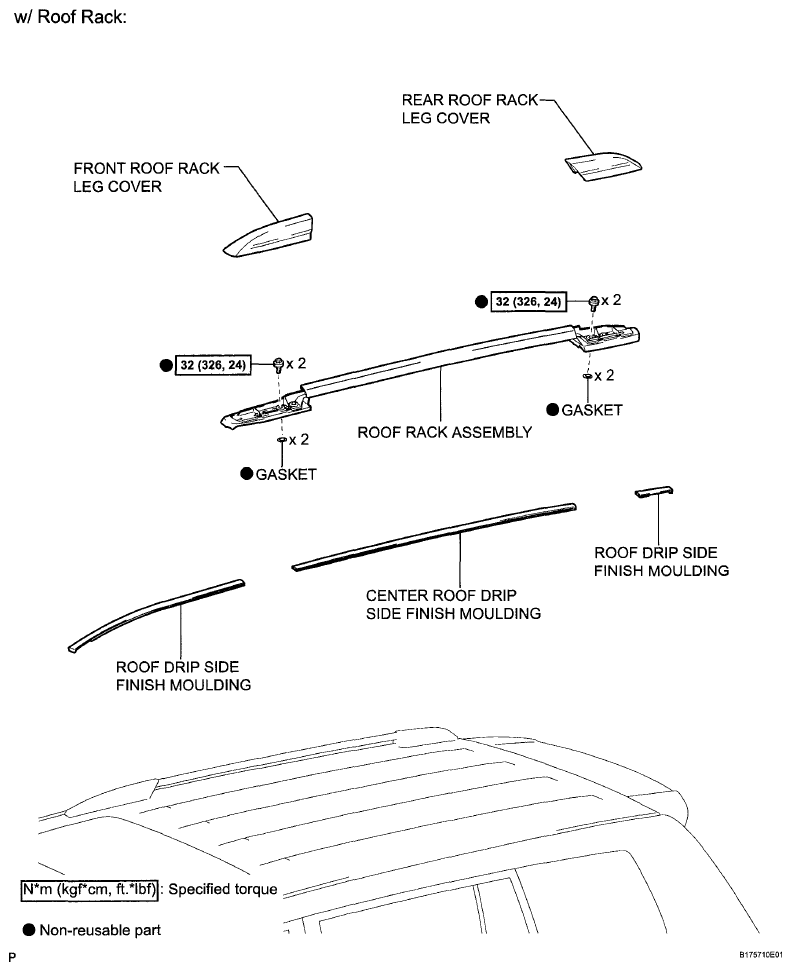

Fig 2: Roof Drip Side Finish Moulding Replacement Components With Torque Specifications (2 Of 2)
G06114438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
