Rear Bumper: Components

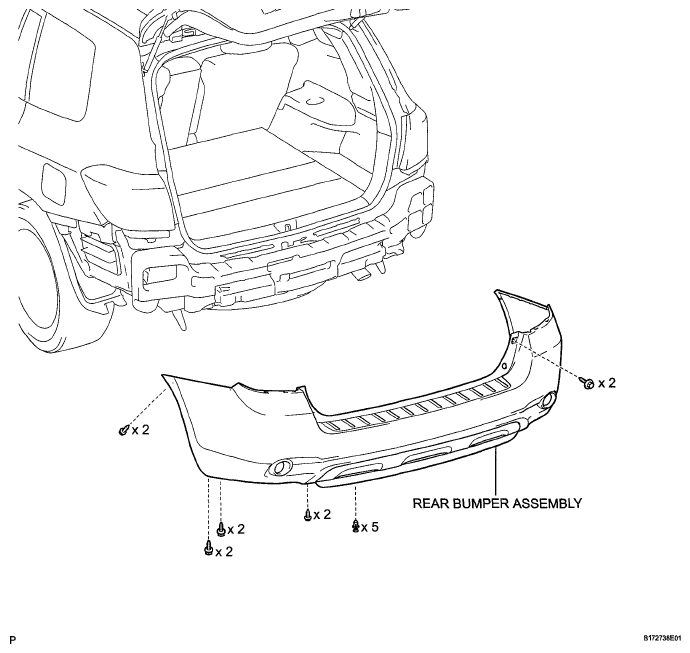

Fig 1: Identifying Rear Bumper Components (1 Of 3)
G05419811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

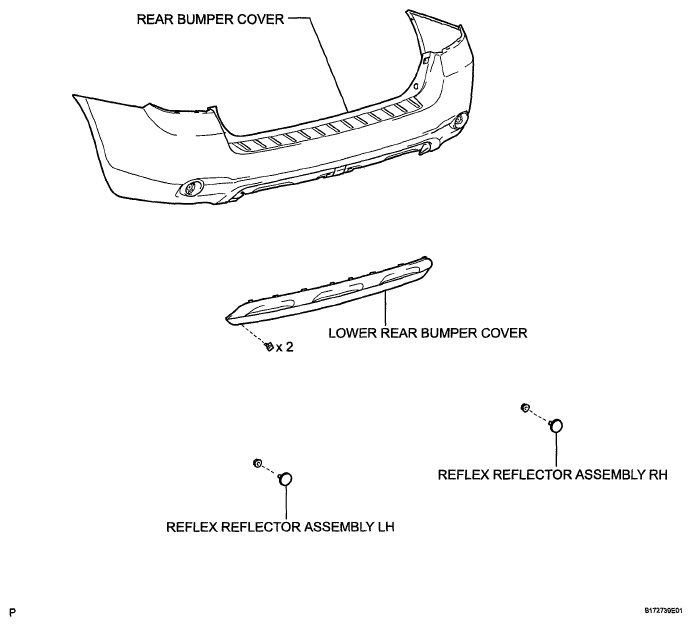

Fig 2: Identifying Rear Bumper Components (2 Of 3)
G05422390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

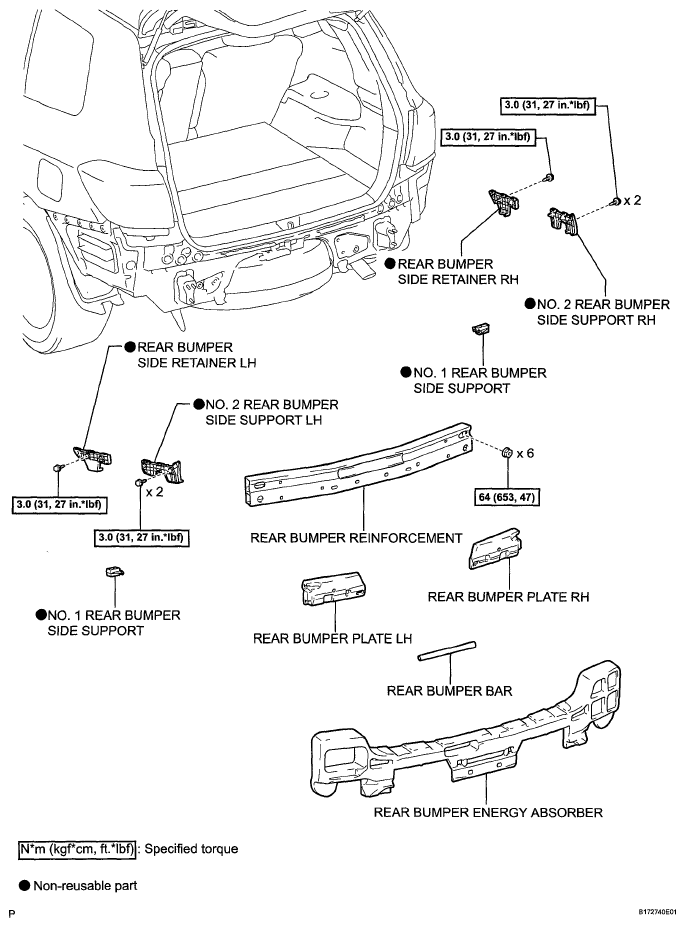

Fig 3: Rear Bumper Replacement Components With Torque Specifications (3 Of 3)
G05422391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
