Home >> Toyota >> 2009 >> Highlander Limited, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Exterior (Except Hybrid) >> Radiator Grille >> Components

Radiator Grille: Components

Fig 1: Identifying Radiator Grille Components (1 Of 2)
G05422069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

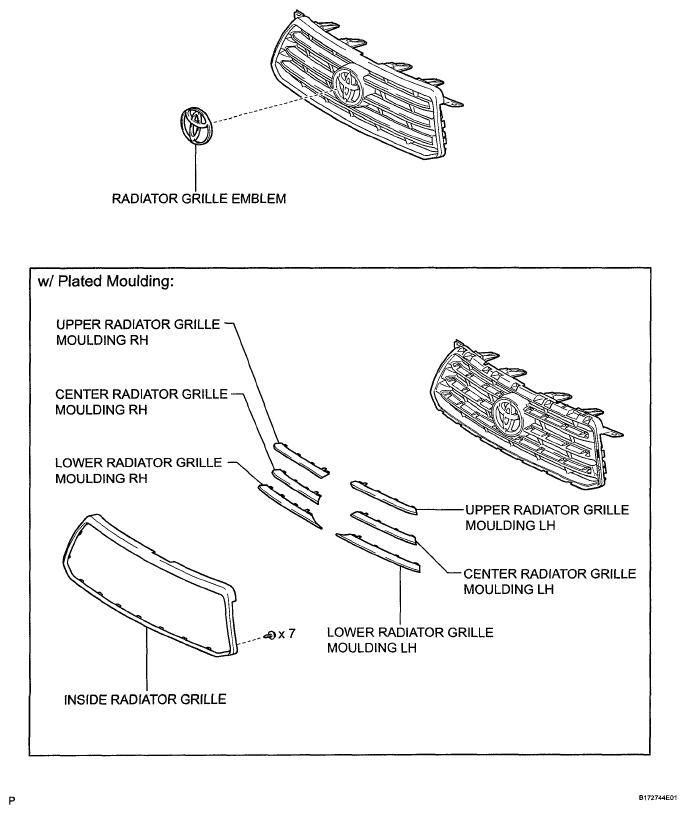

Fig 2: Identifying Radiator Grille Components (2 Of 2)
G05422416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
