Front Bumper: Components

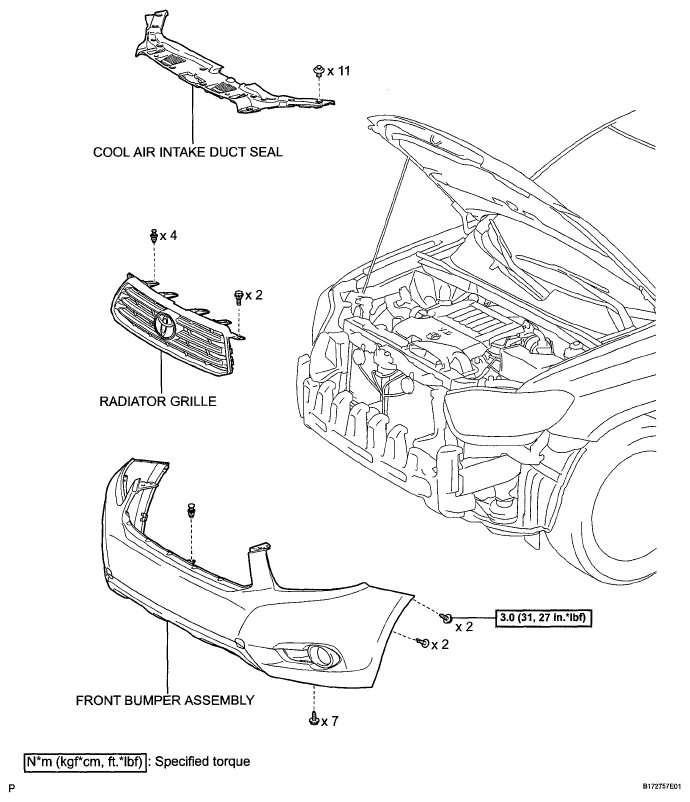

Fig 1: Front Bumper Replacement Components With Torque Specifications (1 Of 3)
G05422362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

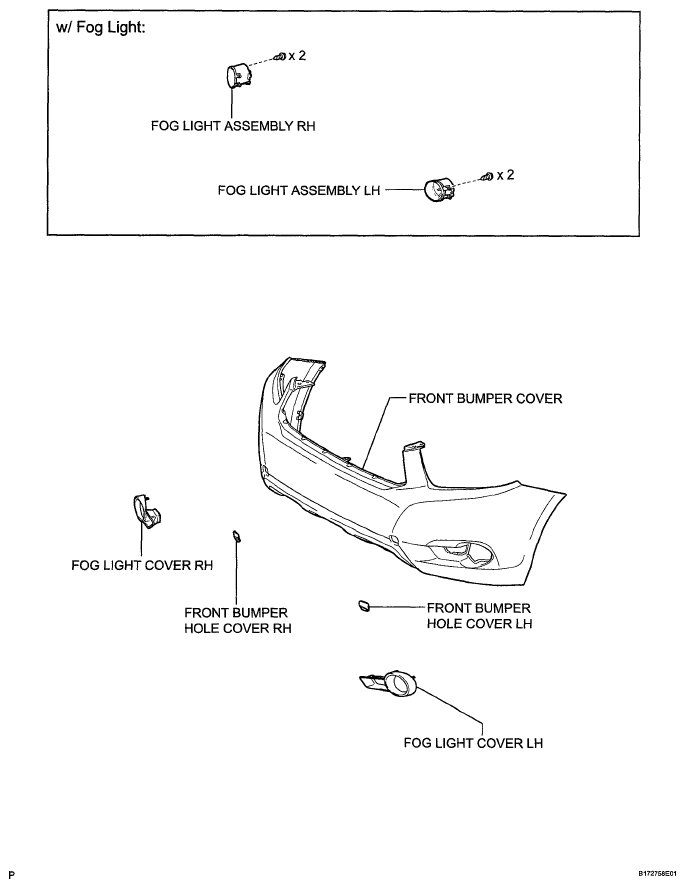

Fig 2: Front Bumper Replacement Components With Torque Specifications (2 Of 3)
G05422363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

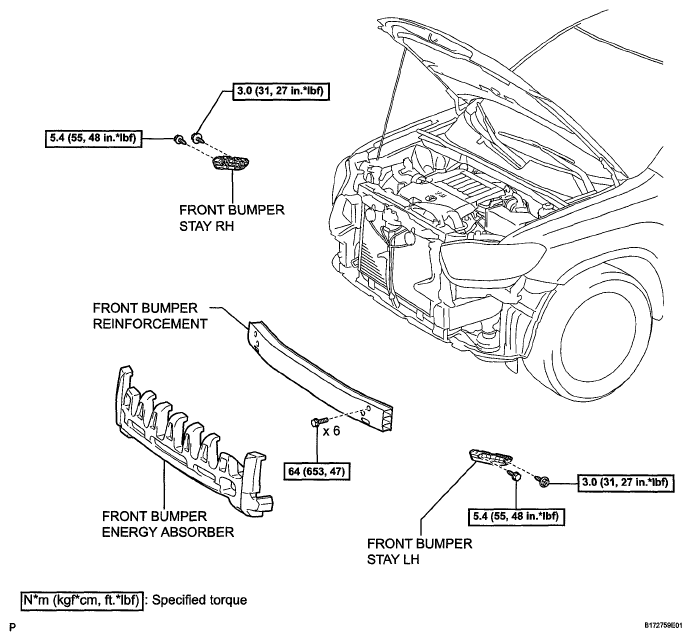

Fig 3: Front Bumper Replacement Components With Torque Specifications (3 Of 3)
G05422364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
