Steering Pad Switch: Inspection

INSPECT STEERING PAD SWITCH

Measure the resistance according to the value(s) in the table below.

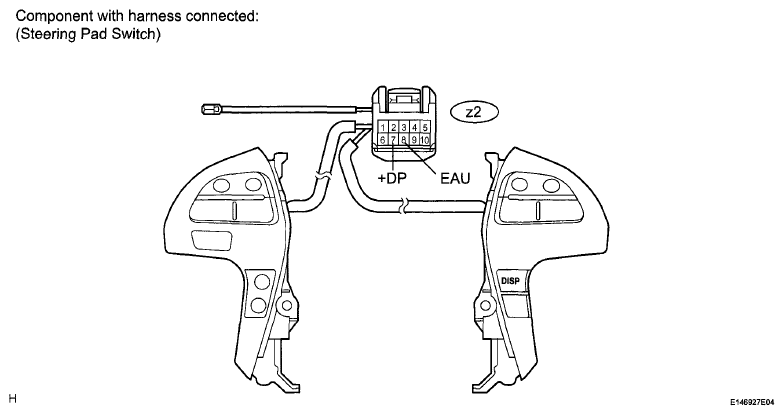

Fig 1: Identifying Steering Pad Switch And Pins

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Steering Pad Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
z2-7 (+DP) - 22-8 (EAU)	DISP switch is not pushed in	10 kΩ or higher
z2-7 (+DP) - 22-8 (EAU)	DISP switch is pushed in	Below 1 Ω

HINT:

If the value is not as specified, replace the steering pad switch (See REMOVAL ).
