Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram

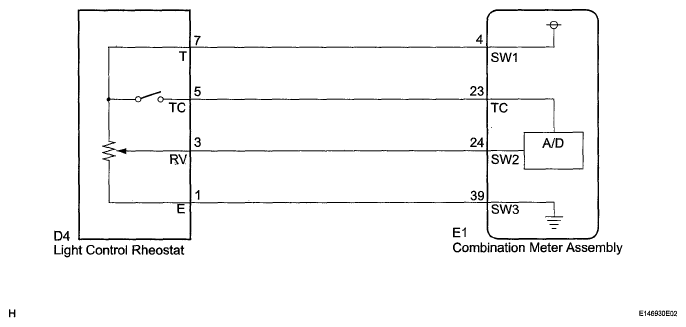

Fig 1: Light Control Rheostat - Wiring Diagram
G05626424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
