Engine Coolant Temperature Receiver Gauge Malfunction: Wiring Diagram

  1. for 2GR-FE
    Fig 1: Engine Coolant Temperature Receiver Gauge Malfunction - Wiring Diagram (2GR-FE)
    G05420390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 1AR-FE

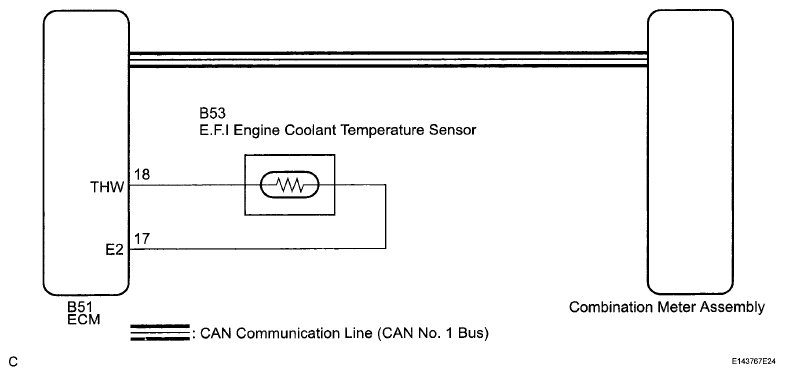

    Fig 2: Engine Coolant Temperature Receiver Gauge Malfunction - Wiring Diagram (1AR-FE)
    G06121535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
