DTC B1500 Fuel Sender Open Detected: Wiring Diagram

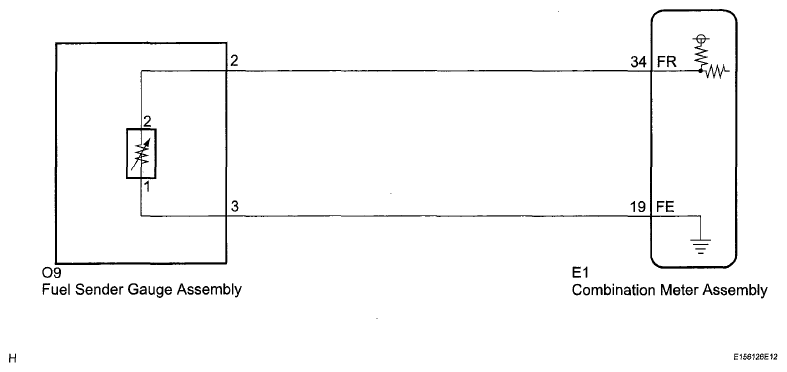

Fig 1: Fuel Sender Gauge Assembly - Wiring Diagram

G06121521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
