Front Suspension Member: Installation

1. INSTALL FRONT STABILIZER BAR  (See INSPECTION )
2. INSTALL STEERING LINK ASSEMBLY  (See INSTALLATION )
3. TEMPORARILY INSTALL FRONT LOWER SUSPENSION ARM LH  (See INSTALLATION )
4. TEMPORARILY INSTALL FRONT LOWER SUSPENSION ARM RH

HINT:

Perform the same procedure as the LH side.

5. INSTALL FRONT SUSPENSION MEMBER DYNAMIC DAMPER (for TMC Made)
   1. Install the front suspension member dynamic damper with the bolt.

   Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

   Fig 1: Locating Front Suspension Member Dynamic Damper Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL FRONT SUSPENSION MEMBER DYNAMIC DAMPER (except TMC Made)
   1. Install the front suspension member dynamic damper.
   Fig 2: Identifying Front Suspension Member Dynamic Damper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. TEMPORARILY INSTALL CENTER ENGINE MOUNTING MEMBER SUB-ASSEMBLY
   1. Temporarily install the center engine mounting member sub-assembly with the 4 bolts.
8. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (for TMC Made)
   1. While alternately inserting SST into the guide holes on both sides of the front suspension crossmember RH and LH, tighten 2 bolts (A), 2 bolts (B), 3 bolts (C), and 3 nuts (D) on the RH and LH sides to the respective specified torque in several steps.

   SST 09670-00010

   Fig 3: Locating Center Engine Mounting Member Sub-Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

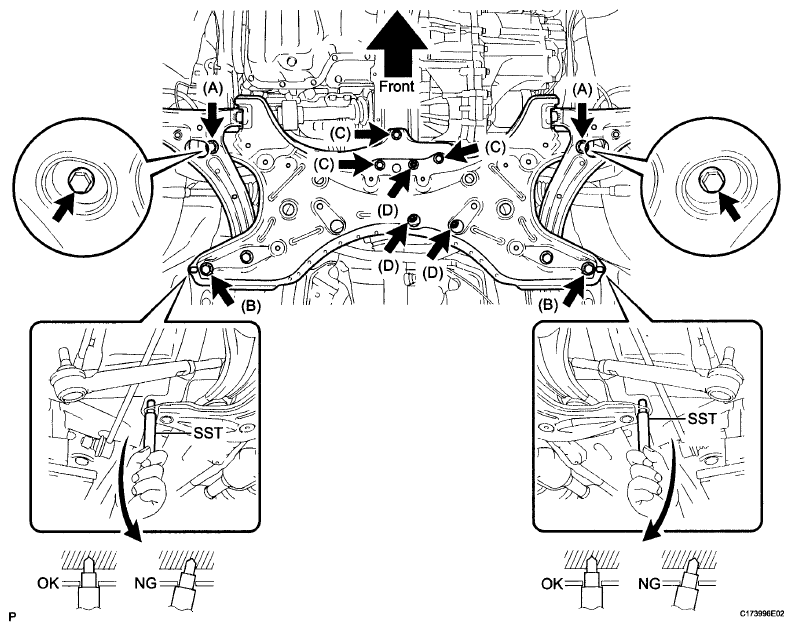

   Fig 4: Installing Front Suspension Crossmember Sub-Assembly (For TMC Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: Bolt A

   113 N*m (1152 kgf*cm, 83 ft.*lbf)

   Bolt B

   157 N*m (1600 kgf*cm, 116 ft.*lbf)

   Bolt C

   52 N*m (530 kgf*cm, 38 ft.*lbf)

   Nut D

   52 N*m (530 kgf*cm, 38 ft.*lbf)

9. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (except TMC Made)
   1. While alternately inserting SST into the guide holes on both sides of the front suspension crossmember RH and LH, tighten 2 bolts (A), 2 bolts (B), 2 bolts (C), bolt (D) and 3 nuts (E) on the RH and LH sides to the respective specified torque in several steps.

   SST 09670-00010

   Fig 5: Installing Front Suspension Crossmember Sub-Assembly (Except TMC Made)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: Bolt A

   113 N*m (1152 kgf*cm, 83 ft.*lbf)

   Bolt B

   157 N*m (1600 kgf*cm, 116 ft.*lbf)

   Bolt C

   52 N*m (530 kgf*cm, 38 ft.*lbf)

   Bolt D

   87 N*m (887 kgf*cm, 64 ft.*lbf)

   Nut E

   52 N*m (530 kgf*cm, 38 ft.*lbf)

10. FULLY TIGHTEN CENTER ENGINE MOUNTING MEMBER SUB-ASSEMBLY
    1. Fully tighten the center engine mounting member sub-assembly with the 4 bolts.

    Torque: Bolt A (TMC Made)

    39 N*m (398 kgf*cm, 29 ft.*lbf)

    Bolt A (except TMC Made)

    60 N*m (612 kgf*cm, 44 ft.*lbf)

    Bolt B (TMC Made)

    52 N*m (530 kgf*cm, 38 ft.*lbf)

    Bolt B (except TMC Made)

    81 N*m (827 kgf*cm, 160 ft.*lbf)

    Fig 6: Locating Center Engine Mounting Member Sub-Assembly Bolts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. INSTALL FRONT HOOK ASSEMBLY
    1. Install the front hook assembly with the 2 bolts.

    Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

12. CONNECT FRONT LOWER SUSPENSION ARM LH  (See INSTALLATION )
13. CONNECT FRONT LOWER SUSPENSION ARM RH

    HINT:

    Perform the same procedure as the LH side.

14. CONNECT FRONT STABILIZER LINK ASSEMBLY LH  (See INSTALLATION )
    Fig 7: Locating Front Hook Assembly Bolts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. CONNECT FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

16. CONNECT TIE ROD END SUB-ASSEMBLY LH  (See INSTALLATION )
17. CONNECT TIE ROD END SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

18. INSTALL ENGINE UNDER COVER LH
19. INSTALL ENGINE UNDER COVER RH
20. CONNECT NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY  (See INSTALLATION )
21. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY  (See INSTALLATION )
22. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
23. INSTALL COLUMN HOLE COVER SILENCER SHEET  (See INSTALLATION )
24. INSTALL FRONT WHEELS

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

25. STABILIZE SUSPENSION  (See INSTALLATION )
26. FULLY TIGHTEN FRONT LOWER SUSPENSION ARM LH  (See INSTALLATION )
27. FULLY TIGHTEN FRONT LOWER SUSPENSION ARM RH

    HINT:

    Perform the same procedure as the LH side.

28. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

HINT:

Inspect and adjust front wheel alignment (See FRONT WHEEL ALIGNMENT ).
