Steering Pad: Removal

PRECAUTION
CAUTION: Be sure to read Precaution thoroughly before servicing (See AIRBAG SYSTEM ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
REMOVE LOWER NO. 3 STEERING WHEEL COVER
1. Disengage the claw and remove the lower No. 3 steering wheel cover.
Fig 1: Identifying Lower No. 3 Steering Wheel Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER NO. 2 STEERING WHEEL COVER
1. Disengage the claw and remove the lower No. 2 steering wheel cover.
REMOVE STEERING PAD

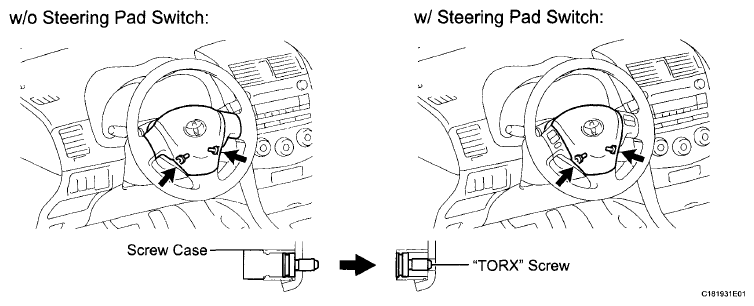

1. Using a "TORX" socket wrench (T30), loosen the 2 "TORX" screws until the groove along the screw circumference catches on the screw case.

  Fig 3: Identifying Steering Pad Switch Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the steering pad from the steering wheel assembly and support the steering pad with one hand as shown in the illustration.
  NOTE: When removing the steering pad, do not pull the airbag wire harness.

  Fig 4: Identifying Steering Wheel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the horn connector from the steering pad.
4. Using a screwdriver with the tip wrapped with protective tape, disconnect the 2 airbag connectors and remove the steering pad.
NOTE: When disconnecting the airbag connector, take care not to damage the airbag wire harness.

Fig 5: Identifying Horn Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
