Rear Crankshaft Oil Seal: Components

WARNING: This page is about a different variant/trim than selected.

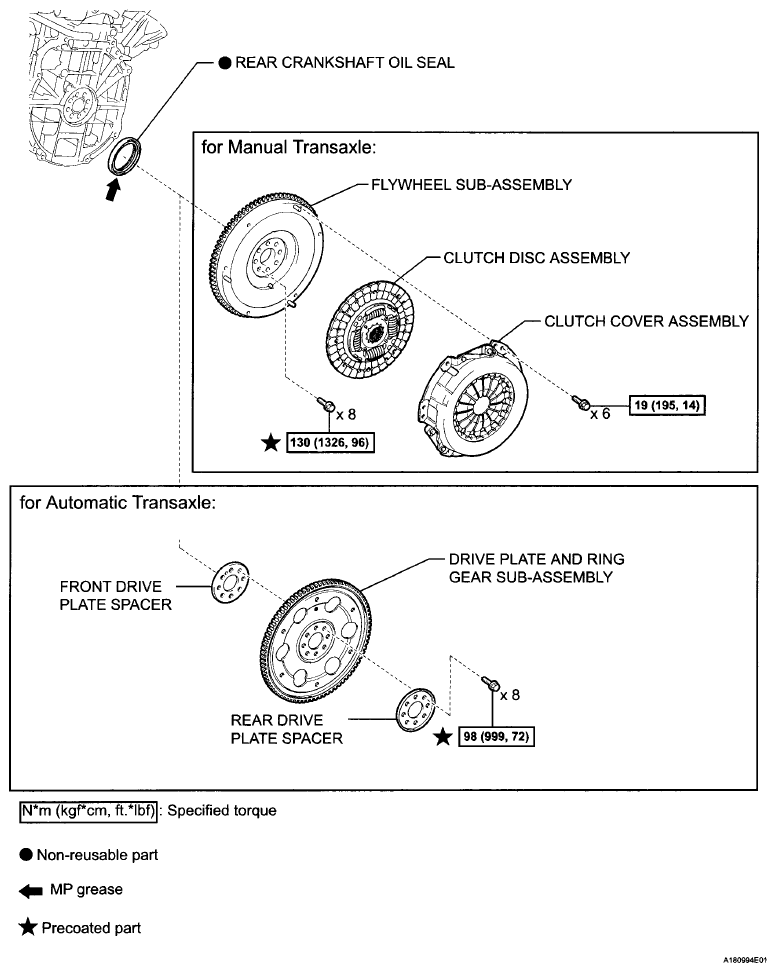

Fig 1: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications
G06008340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
