Cylinder Head Gasket: Components

WARNING: This page is about a different variant/trim than selected.

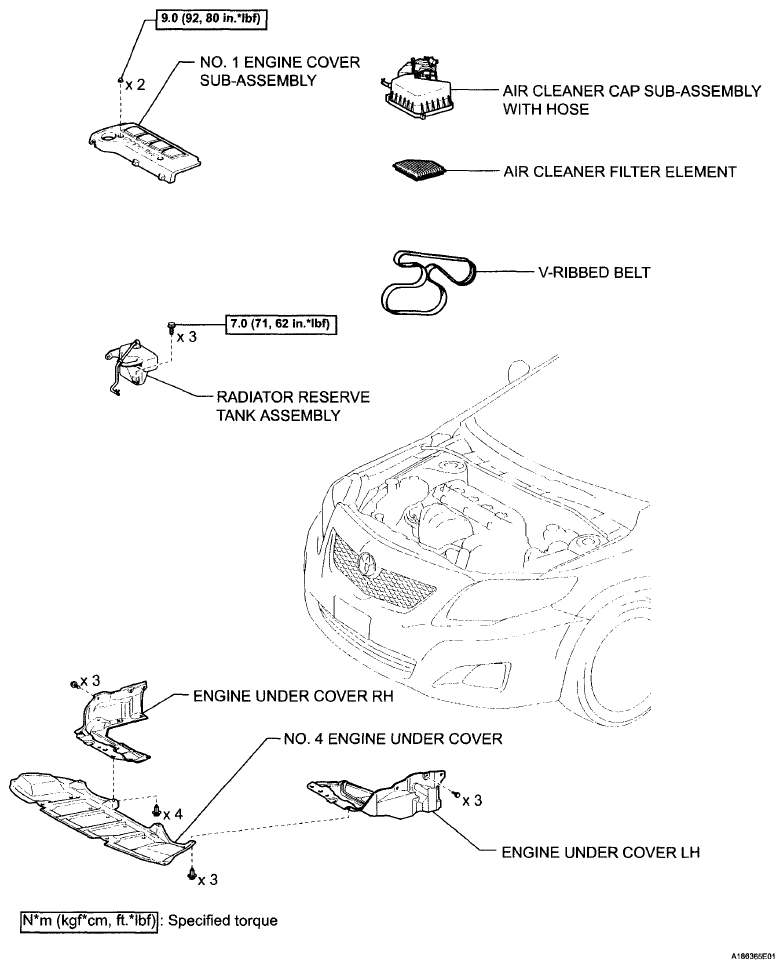

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

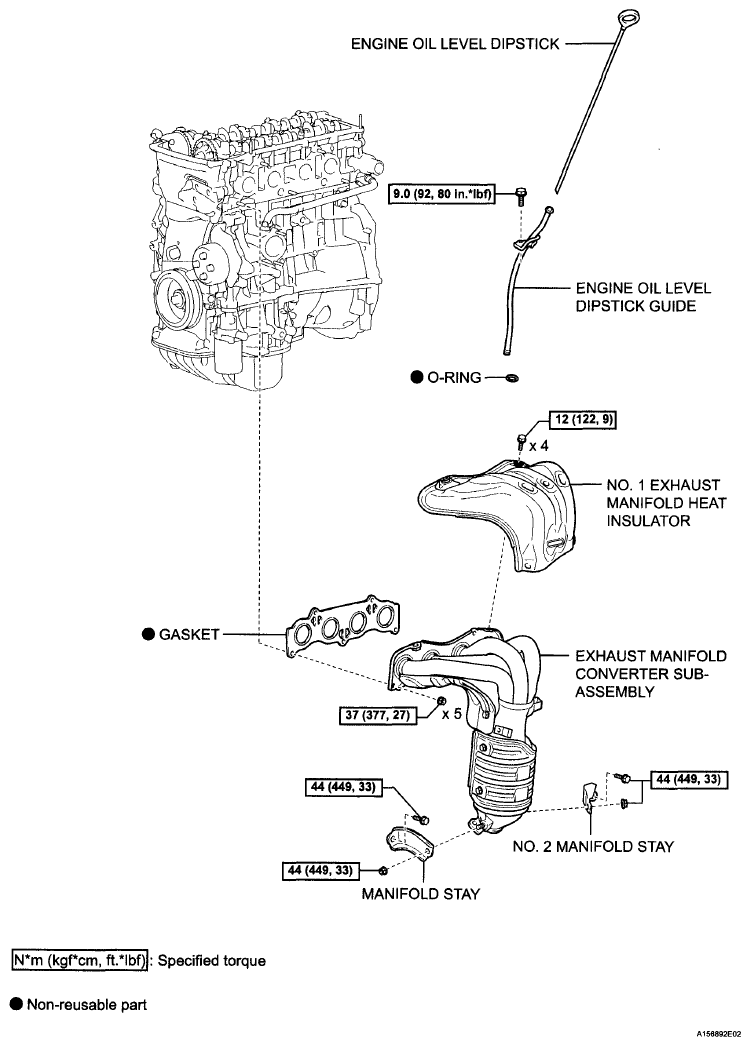

Fig 2: Cylinder Head Gasket Replacement Components With Torque Specifications (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

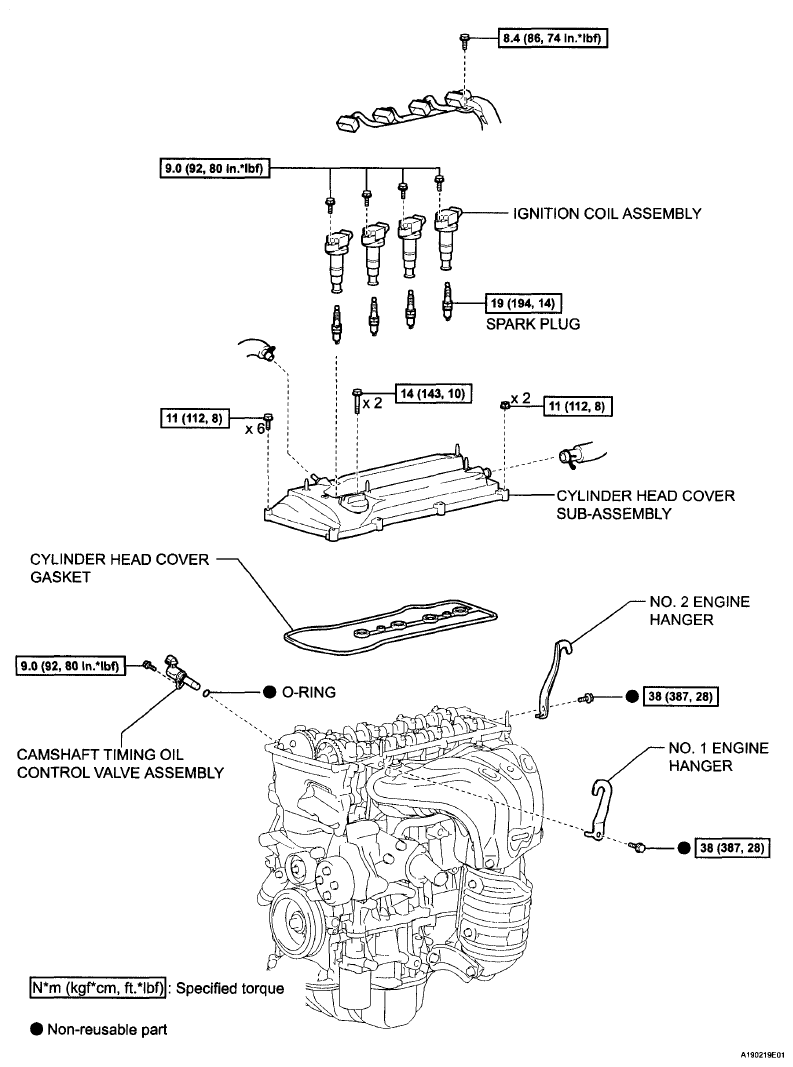

Fig 3: Cylinder Head Gasket Replacement Components With Torque Specifications (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

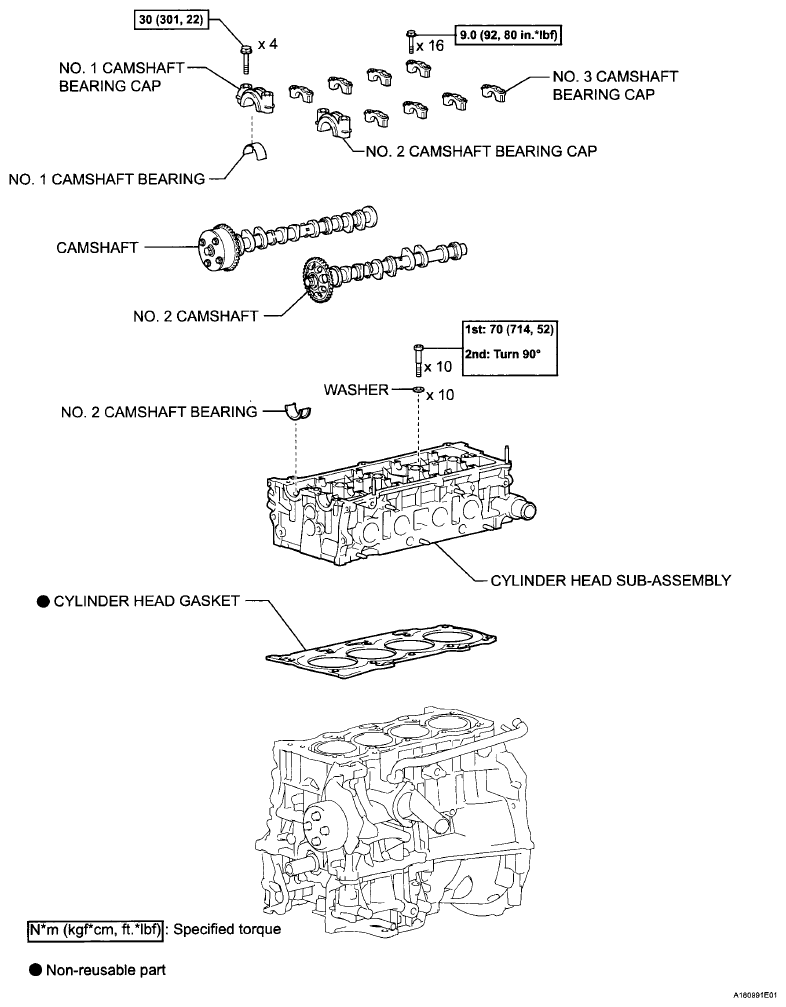

Fig 4: Engine Assembly Replacement Components With Torque Specifications (7 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

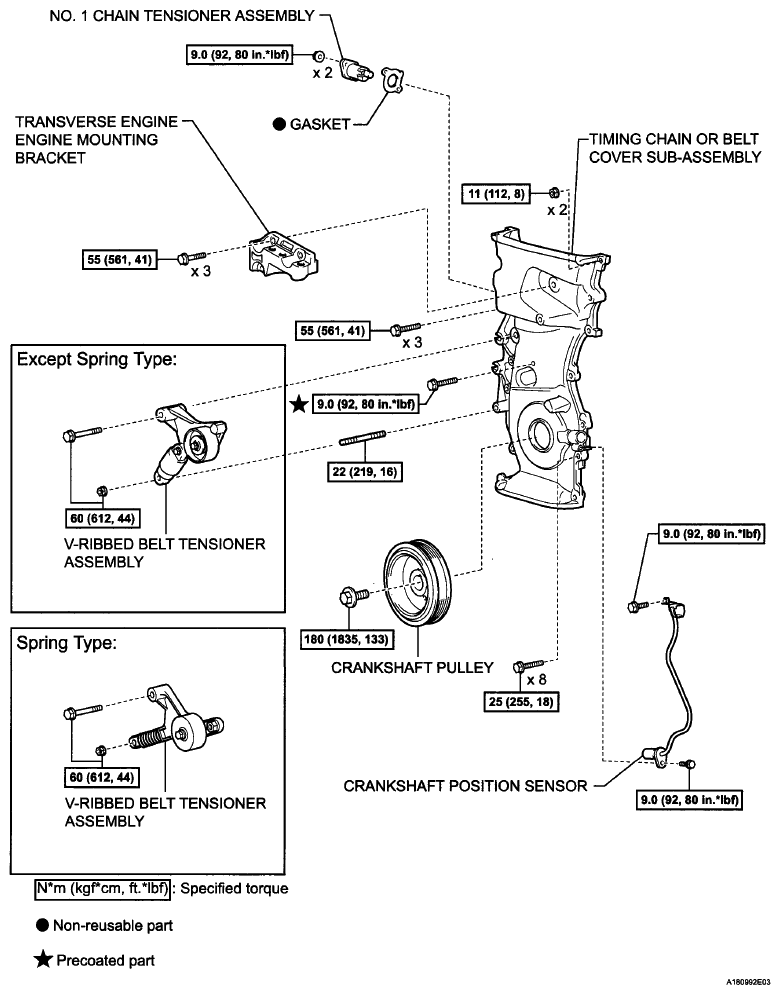

Fig 5: Cylinder Head Gasket Replacement Components With Torque Specifications (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

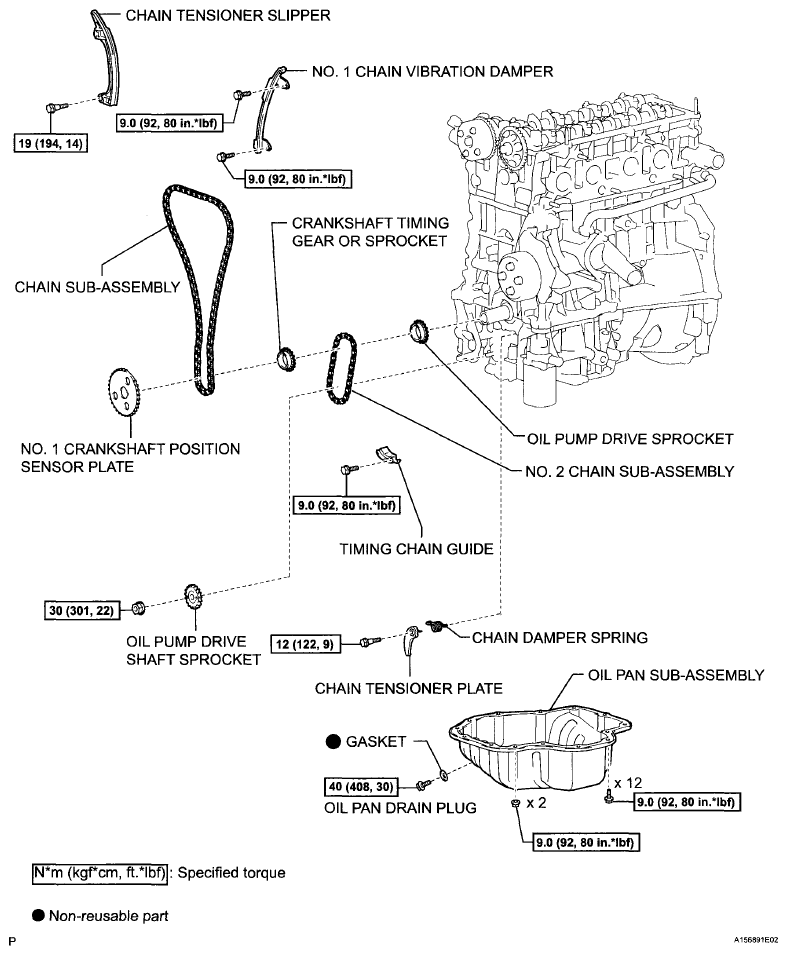

Fig 6: Cylinder Head Gasket Replacement Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

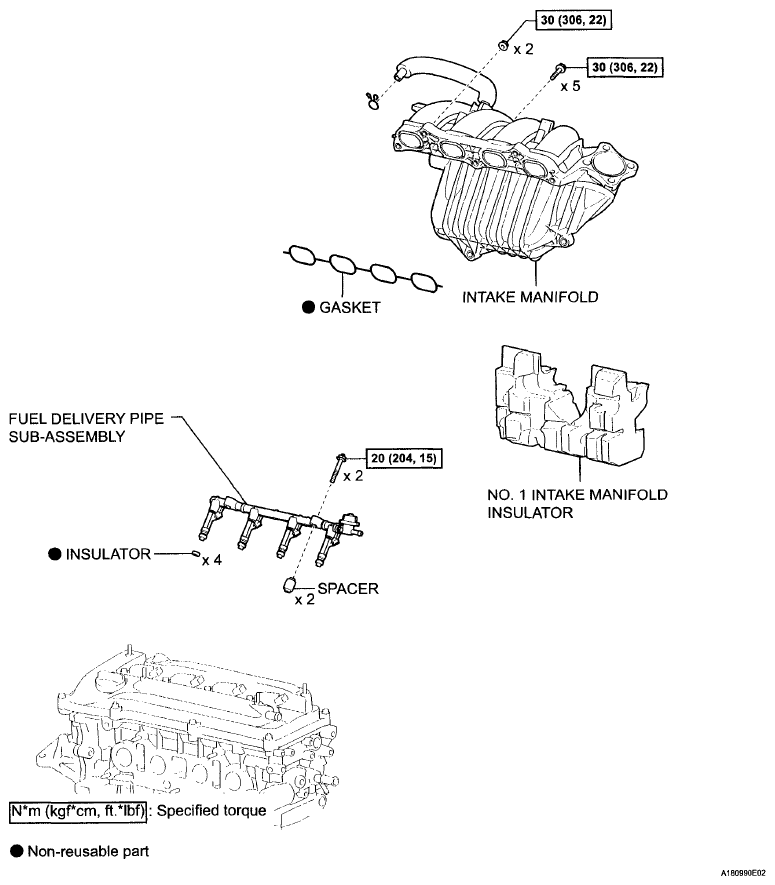

Fig 7: Cylinder Head Gasket Replacement Components With Torque Specifications (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

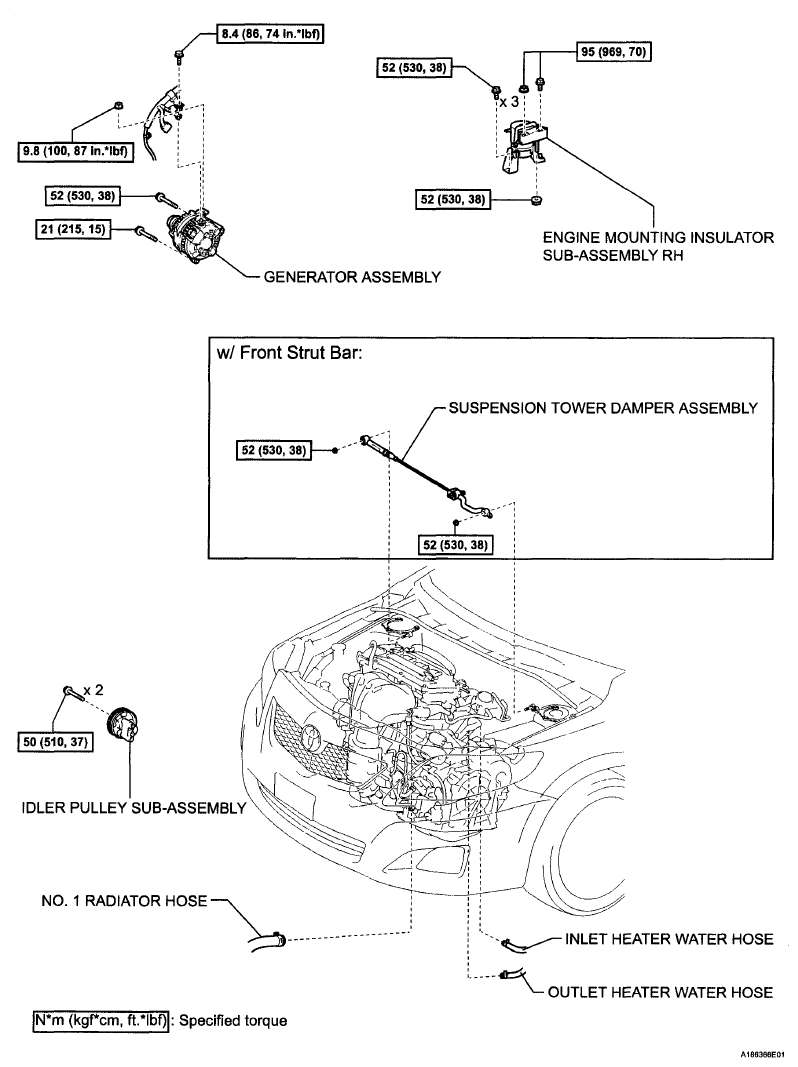

Fig 8: Cylinder Head Gasket Replacement Components With Torque Specifications (8 Of 11)

Fig 9: Cylinder Head Gasket Replacement Components With Torque Specifications (9 Of 11)

Fig 10: Cylinder Head Gasket Replacement Components With Torque Specifications (10 Of 11)

Fig 11: Cylinder Head Gasket Replacement Components With Torque Specifications (11 Of 11)
