Section 3 (Engine Mechanical (2AZ-FE)): Camshaft: Removal

1. Remove the 2 ventilation hoses from the cylinder head cover sub-assembly.
   Fig 1: Locating Ventilation Hoses

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and separate the 2 wire harness brackets.
   Fig 2: Locating Bolts And Wire Harness Brackets

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 8 bolts and 2 nuts, then remove the cylinder head cover sub-assembly and gasket.

Fig 3: Locating Bolts And Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Turn the crankshaft pulley until the groove and the timing mark "0" on the timing chain cover are aligned.
2. Check that each timing mark on the camshaft timing gear and sprocket is aligned with each timing mark located on the No. 1 and No. 2 bearing caps as shown in the illustration.

   If not, turn the crankshaft pulley 1 revolution (360°) to align the timing marks as illustrated.

3. Place paint marks on the chain in alignment with the timing marks on the camshaft timing gear and camshaft timing sprocket.

1. While holding the No. 2 camshaft with a wrench, loosen the No. 2 camshaft timing set bolt.

Fig 5: Loosening No. 2 Camshaft Timing Set Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using several steps, uniformly loosen and remove the 10 bearing cap bolts in the sequence shown in the illustration.
2. Remove the 5 bearing caps.
   Fig 6: Identifying Bearing Cap Bolts In Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. While holding the No. 2 camshaft by hand, remove the camshaft timing sprocket set bolt.
4. Remove the camshaft timing sprocket from the No. 2 camshaft with the timing chain wrapped on the sprocket.
5. Remove the camshaft timing sprocket from the timing chain.

Fig 7: Holding No. 2 Camshaft By Hand

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. In several steps, uniformly loosen and remove the 10 bearing caps bolts in the sequence shown in the illustration.
2. Remove the 5 bearing caps.
3. Remove the camshaft and camshaft timing gear assembly while holding the timing chain by hand.
   Fig 8: Identifying Bearing Caps Bolts In Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Support the timing chain with a string to prevent it from slipping off the crankshaft sprocket as shown in the illustration.

Fig 9: Winding Timing Chain With String

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Clamp the camshaft in a vise, and make sure that the camshaft timing gear assembly does not rotate.

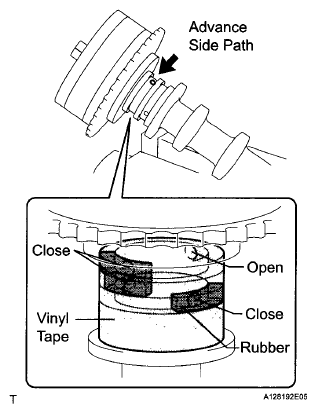

2. Cover all the oil path with vinyl tape except the advance side path shown in the illustration.
   Fig 10: Locating Advance Side Path

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Apply air pressure of 150 kPa (1.5 kgf/cm² , 22 psi) to the oil path, then turn the camshaft timing gear assembly to the advance direction (counterclockwise) by hand.

Fig 11: Applying Air Pressure To Oil Path

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Depending on the air pressure, the camshaft timing gear assembly may turn to the advance side without applying force by hand. Also, if the pressure is difficult to apply because of air leakage from a path, the lock pin may be difficult to release.
