Clutch Pedal: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Clutch Pedal Replacement Components With Torque Specifications (1 Of 3)
G06012558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

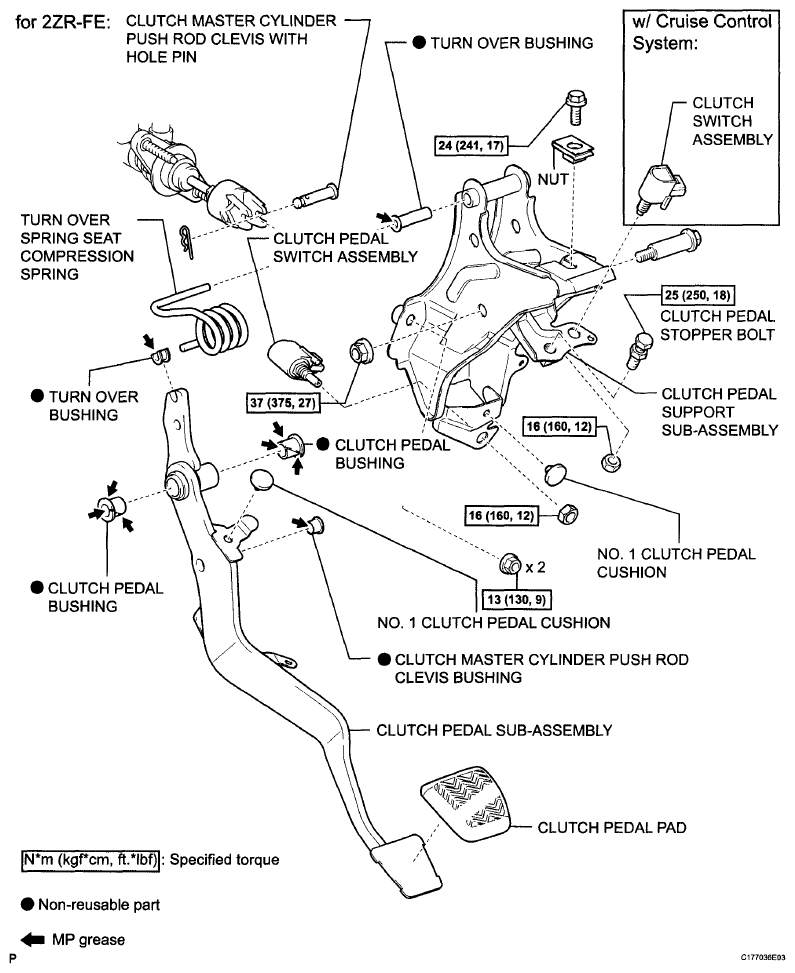

Fig 2: Clutch Pedal Replacement Components With Torque Specifications (2 Of 3)
G06012559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

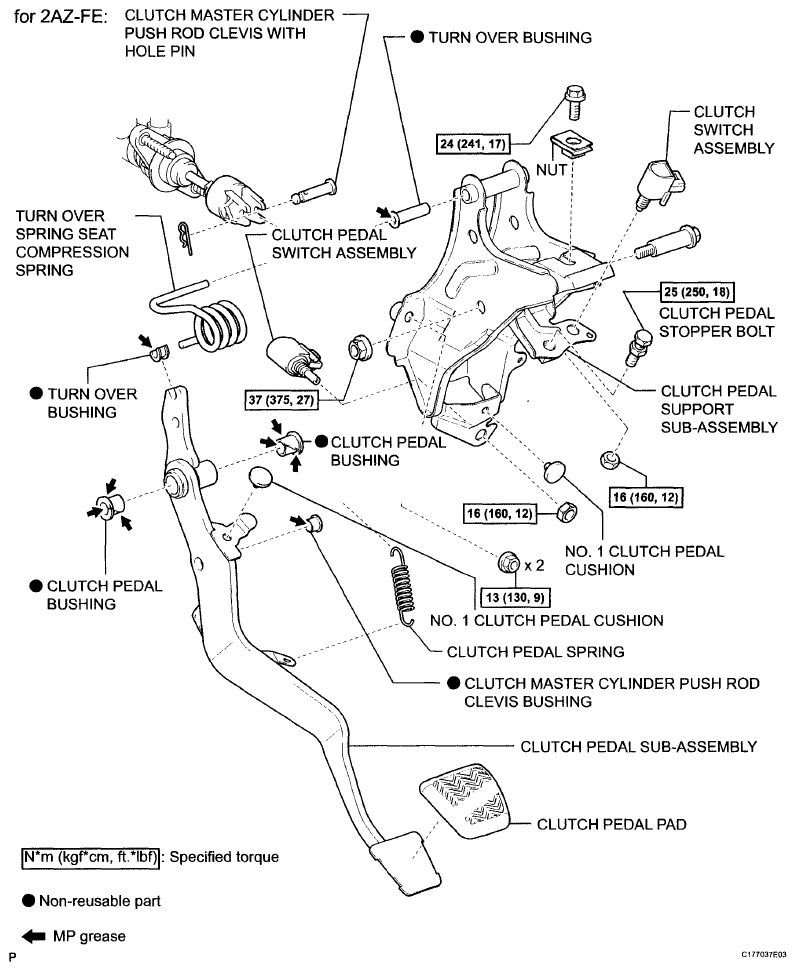

Fig 3: Clutch Pedal Replacement Components With Torque Specifications (3 Of 3)
G06012560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
