CLUTCH UNIT (for C59): Components

WARNING: This page is about a different variant/trim than selected.

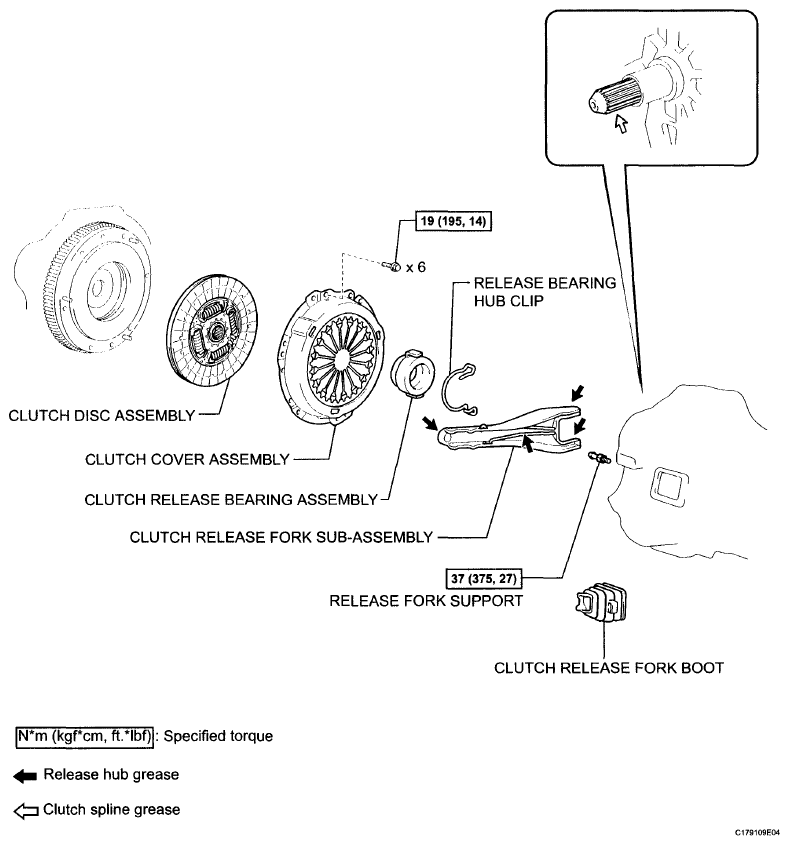

Fig 1: Clutch Unit Components With Torque Specification (For C59)
G06012623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
