CLUTCH RELEASE CYLINDER (for E351): Components

WARNING: This page is about a different variant/trim than selected.

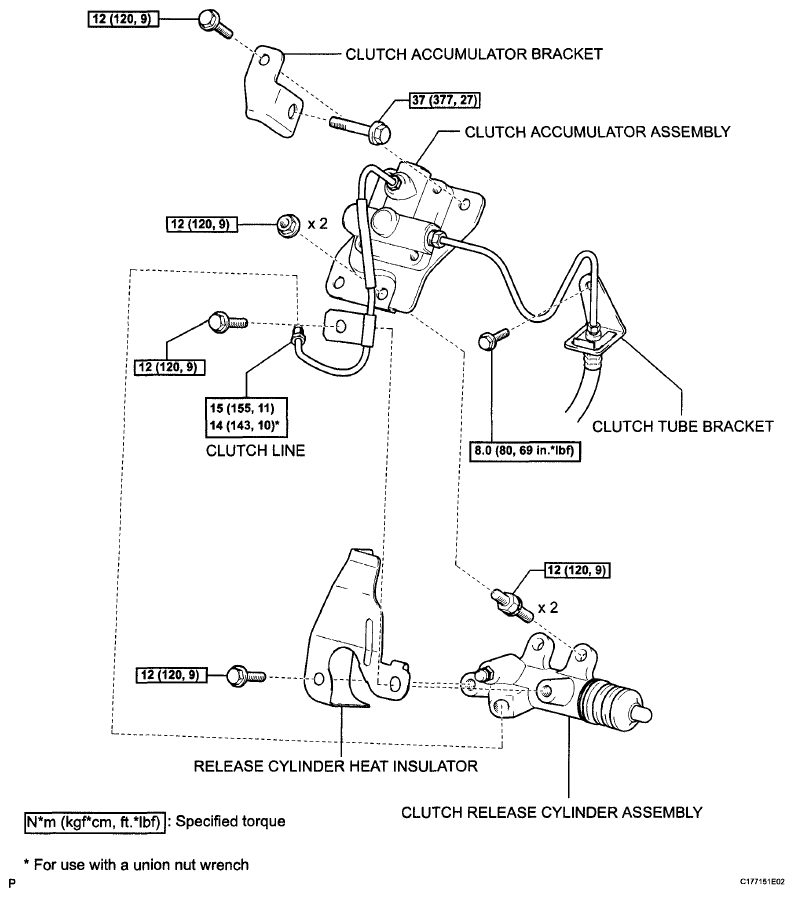

Fig 1: Clutch Release Cylinder Replacement Components With Torque Specifications - For E351 (1 Of 2)
G06012602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

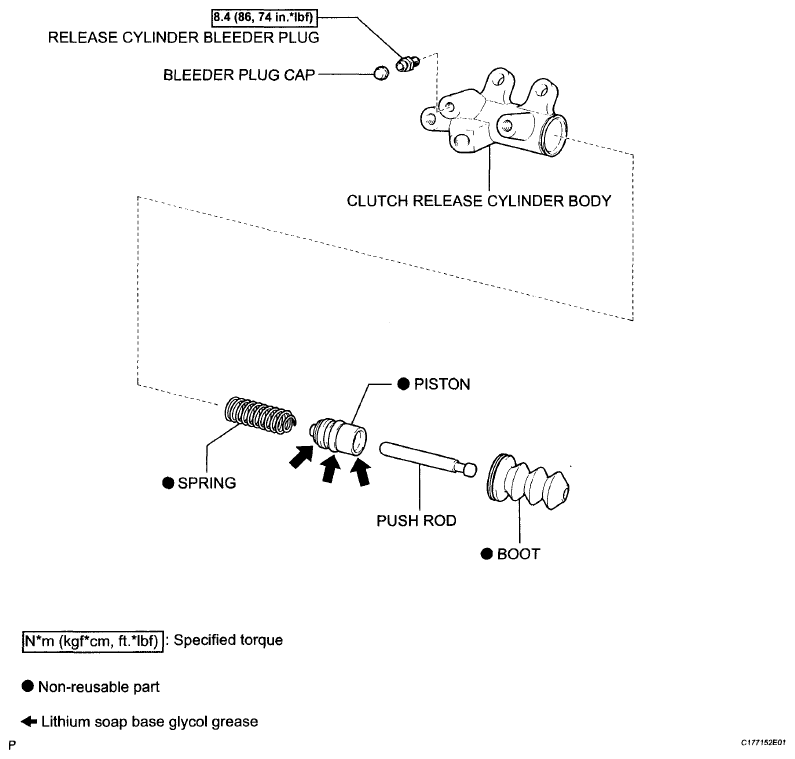

Fig 2: Clutch Release Cylinder Replacement Components With Torque Specifications - For E351 (2 Of 2)
G06012603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
