CLUTCH RELEASE CYLINDER (for C59): Components

WARNING: This page is about a different variant/trim than selected.

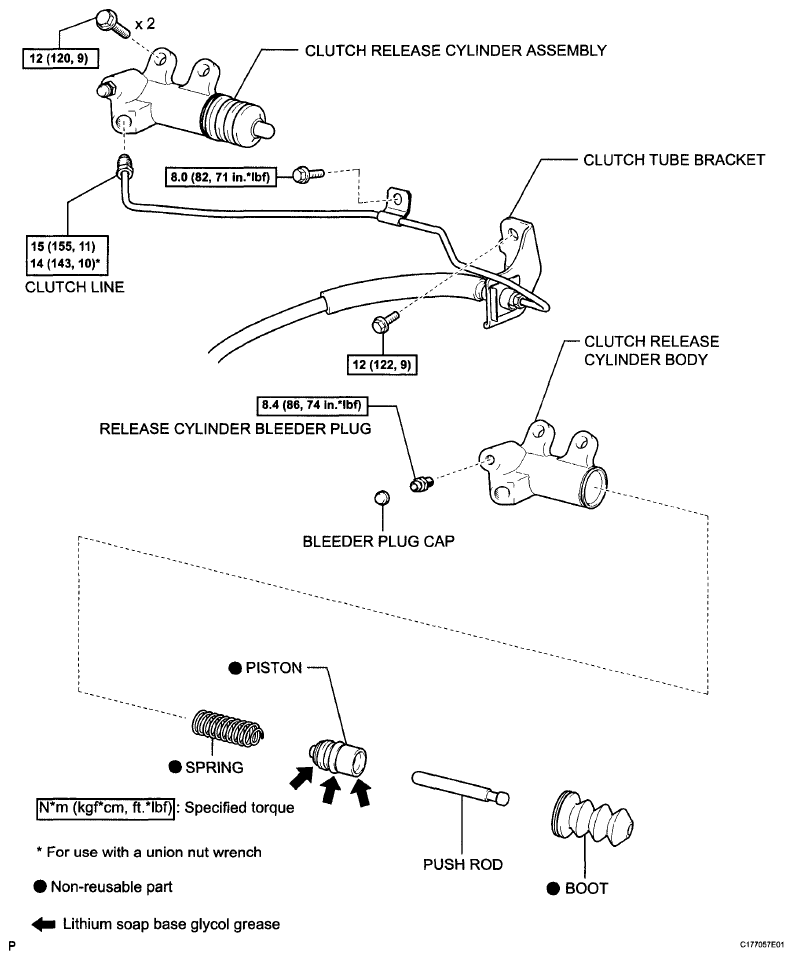

Fig 1: Clutch Release Cylinder Replacement Components With Torque Specifications (For C59)
G06012592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
