CLUTCH ACCUMULATOR (for E351): Components

WARNING: This page is about a different variant/trim than selected.

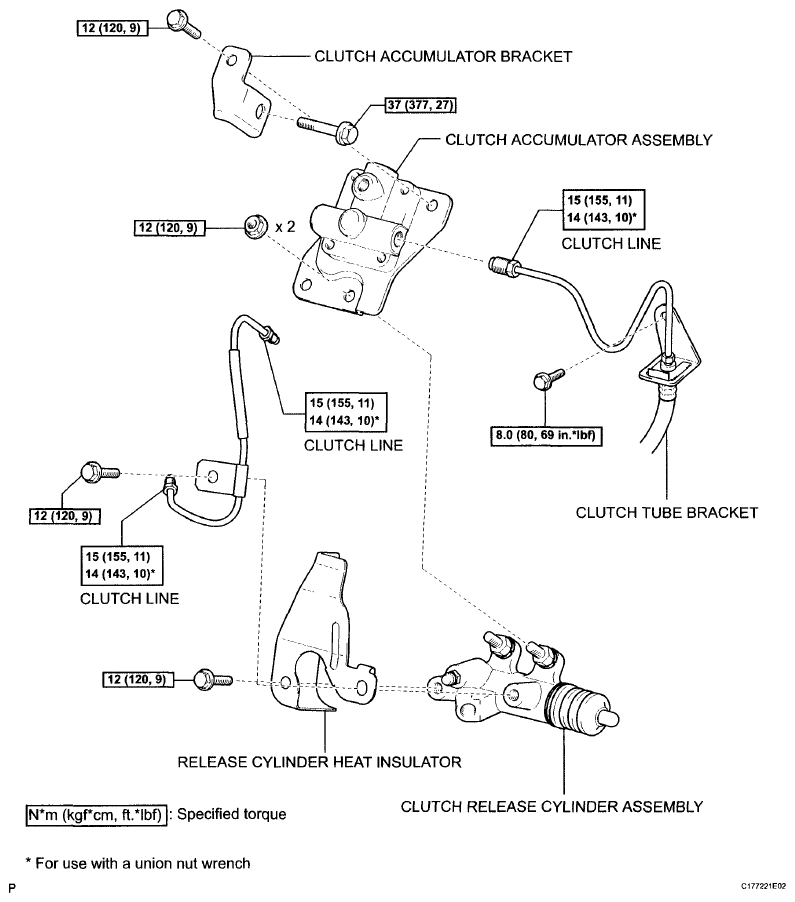

Fig 1: Clutch Accumulator Replacement Components With Torque Specifications (For E351)
G06012612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
