DTC P0300 Random / Multiple Cylinder Misfire Detected; DTC P0301 Cylinder 1 Misfire Detected; DTC P0302 Cylinder 2 Misfire Detected; DTC P0303 Cylinder 3 Misfire Detected; DTC P0304 Cylinder 4 Misfire Detected: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

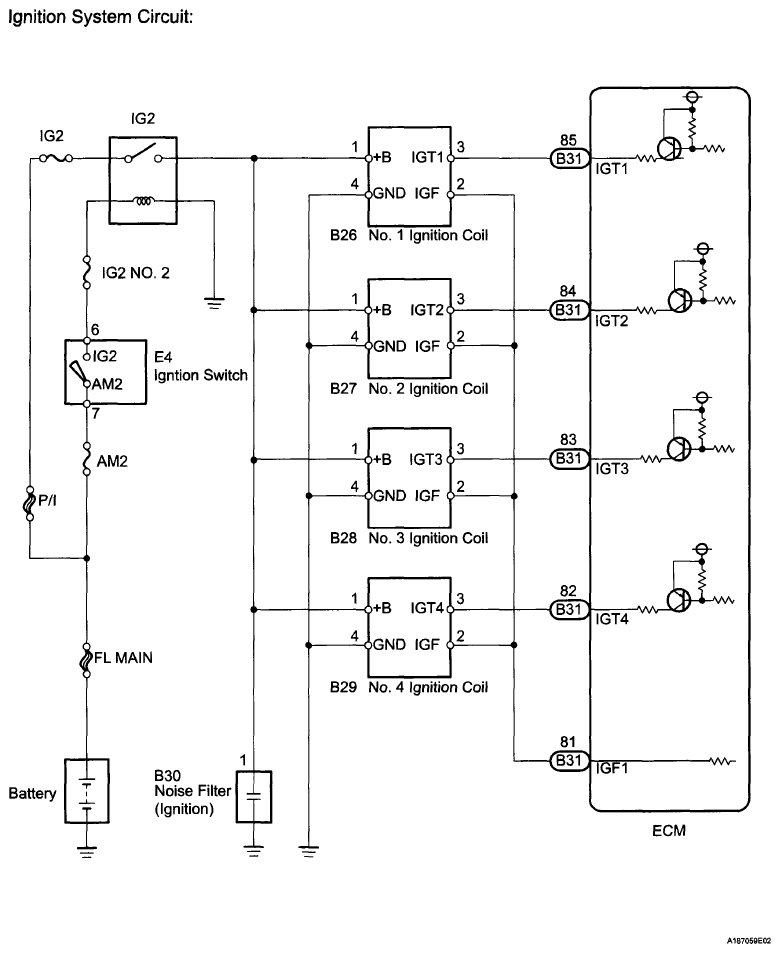

Fig 1: Ignition System And ECM - Wiring Diagram (1 Of 2)
G06007361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

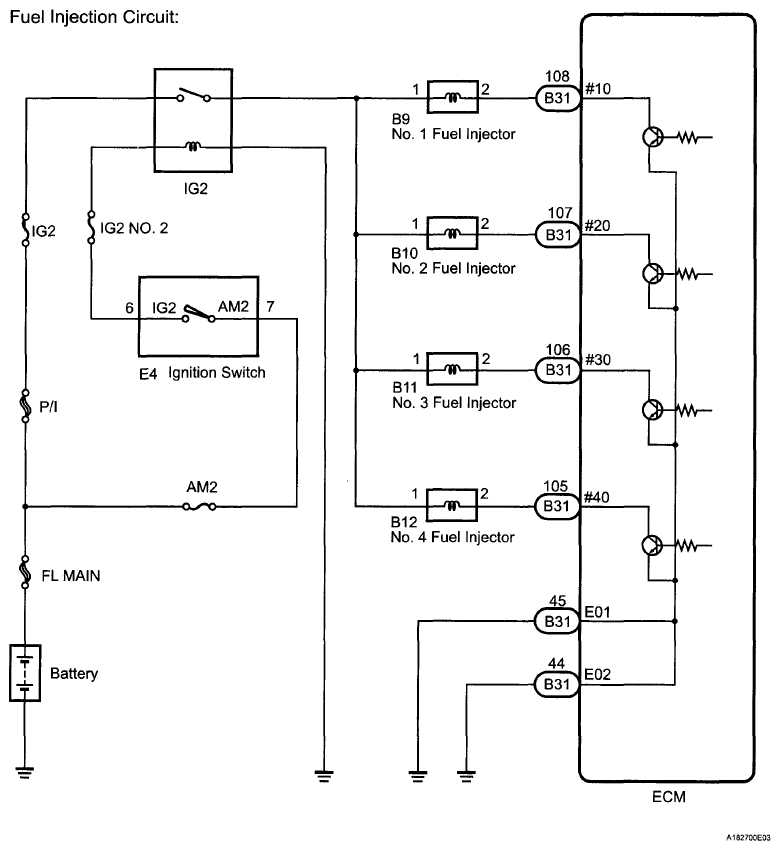

Fig 2: Ignition System And ECM - Wiring Diagram (2 Of 2)
G06007362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
