Section 11 (Manual Transmission - C59)
>>
Transmission Control Cable
>>
Components
Transmission Control Cable: Components
WARNING:
This page is about a different variant/trim than selected.

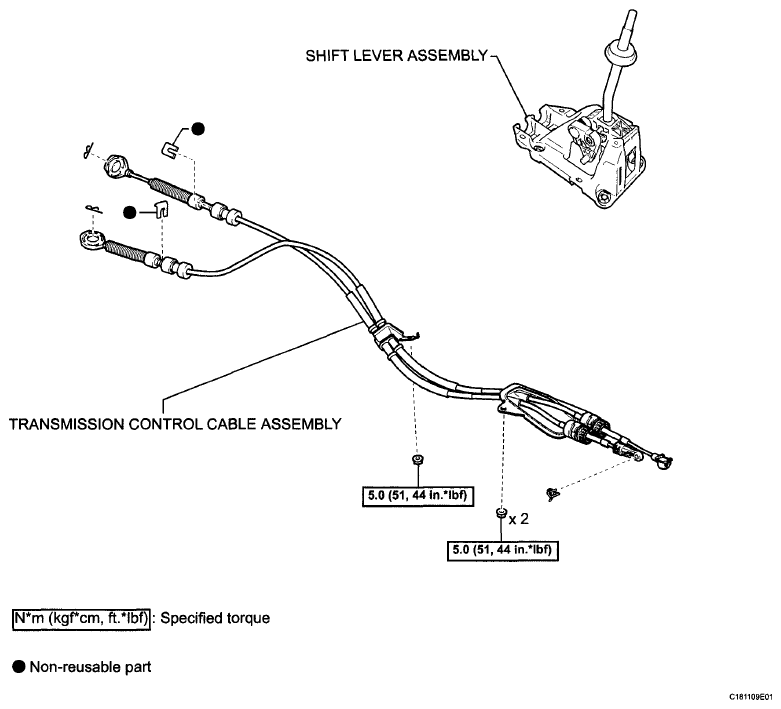

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Transmission Control Cable Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Transmission Control Cable Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Transmission Control Cable Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
