Section 11 (Manual Transmission - C59)
>>
Shift And Select Lever Shaft
>>
Components
Shift And Select Lever Shaft: Components
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Identifying Shift And Select Lever Shaft Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

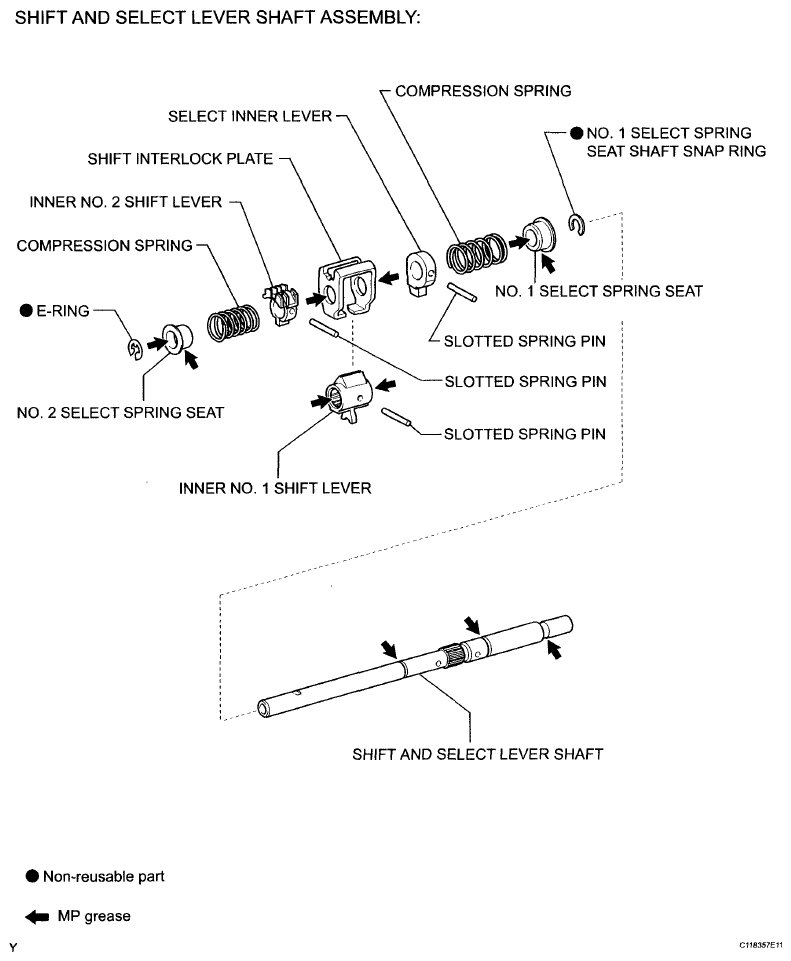

Fig 2: Identifying Shift And Select Lever Shaft Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
