Back-Up Light Switch: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Back-Up Light Switch Replacement Components With Torque Specifications (1 Of 2)
G06012702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

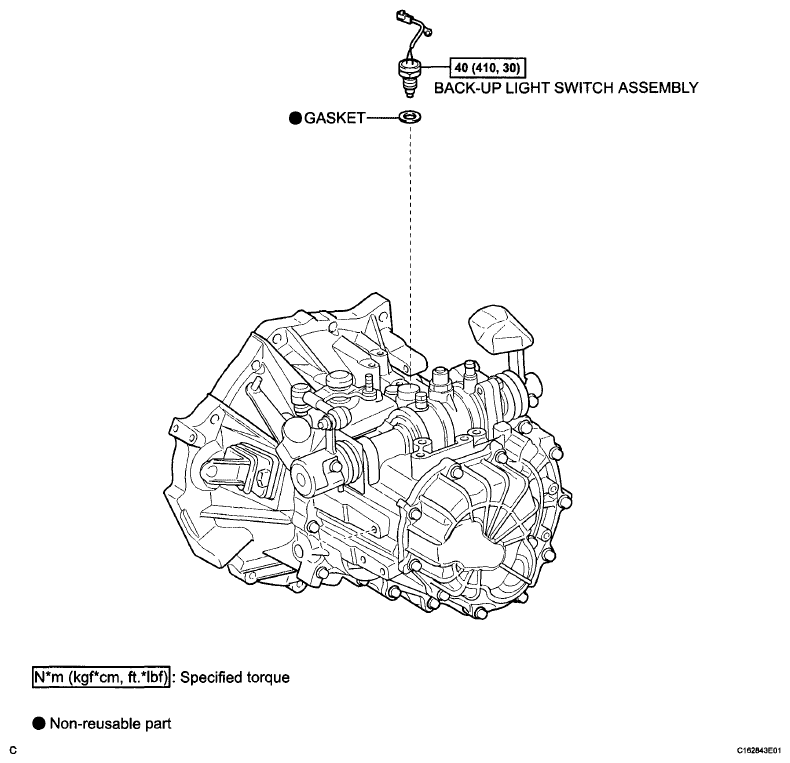

Fig 2: Back-Up Light Switch Replacement Components With Torque Specifications (2 Of 2)
G06012703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
