Automatic Transaxle Unit: Components

WARNING: This page is about a different variant/trim than selected.

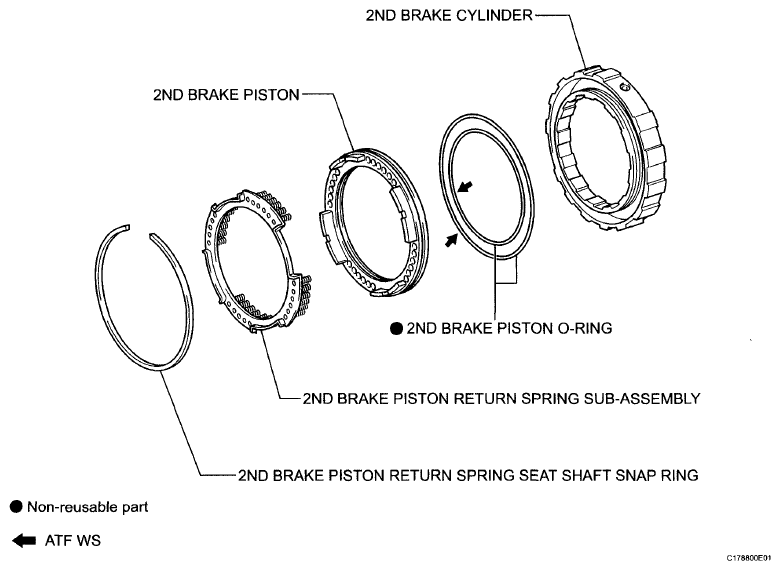

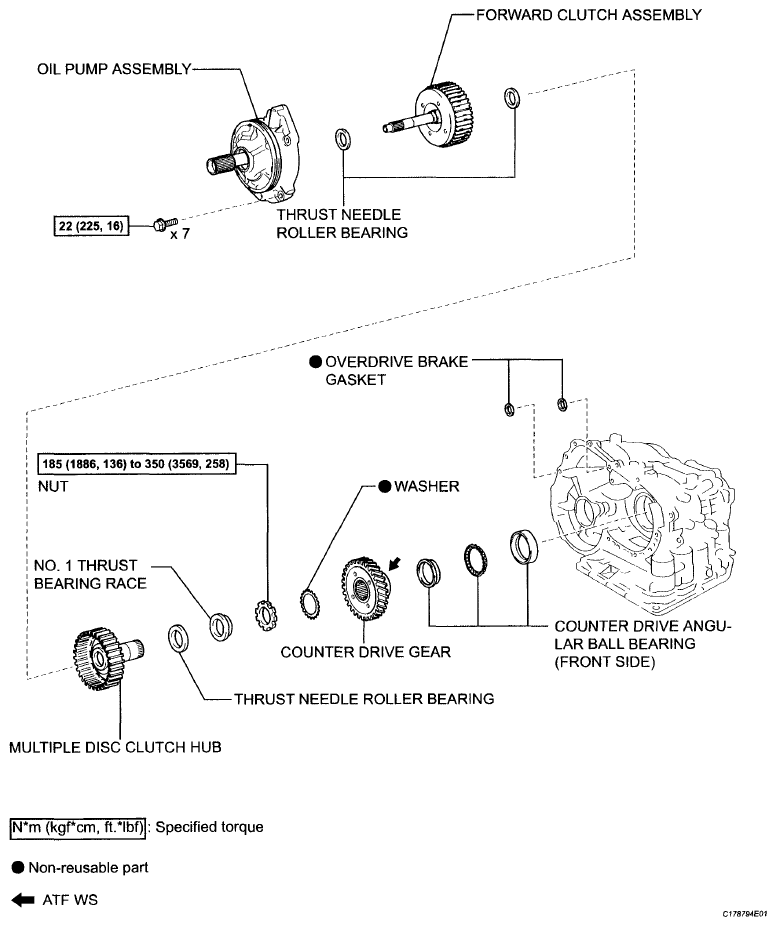

Fig 1: Automatic Transaxle Unit Components With Torque Specification (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

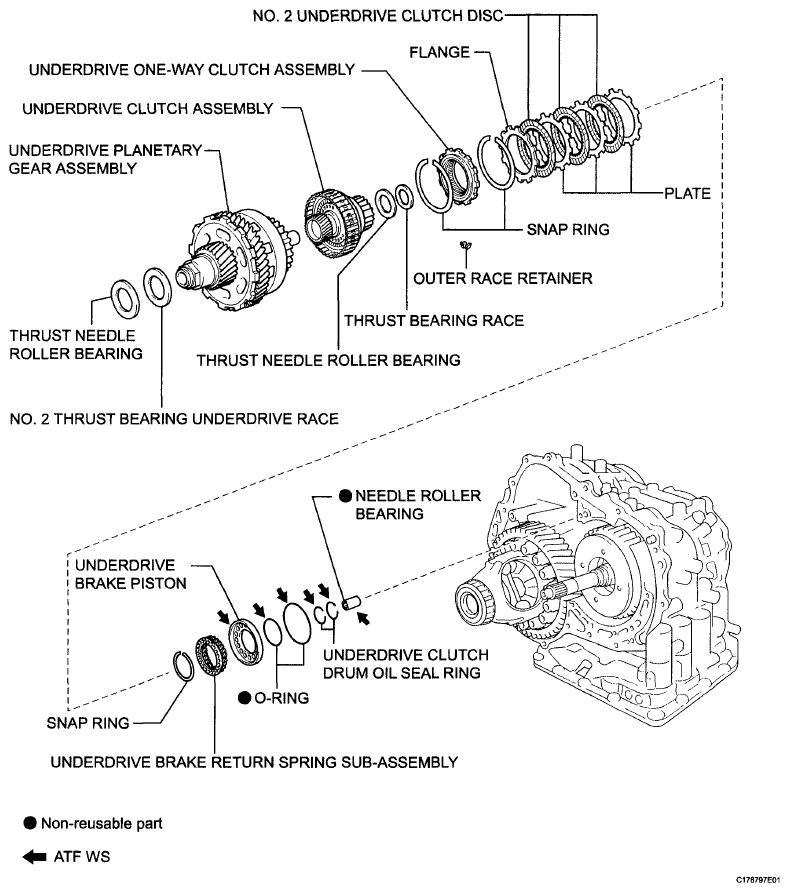

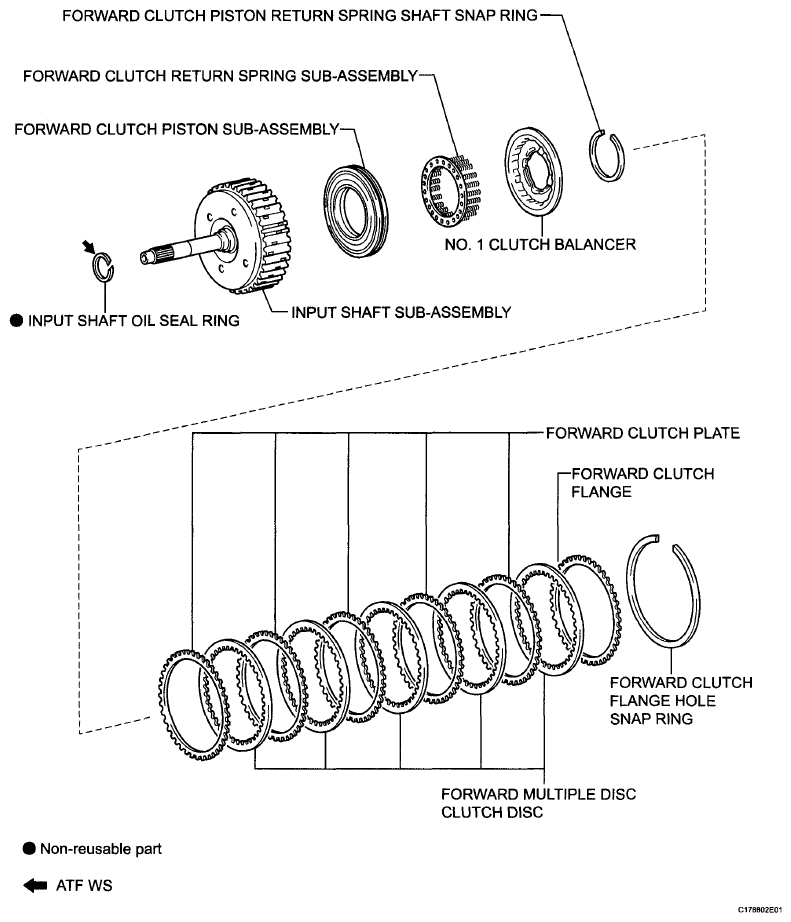

Fig 2: Automatic Transaxle Unit Components With Torque Specification (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

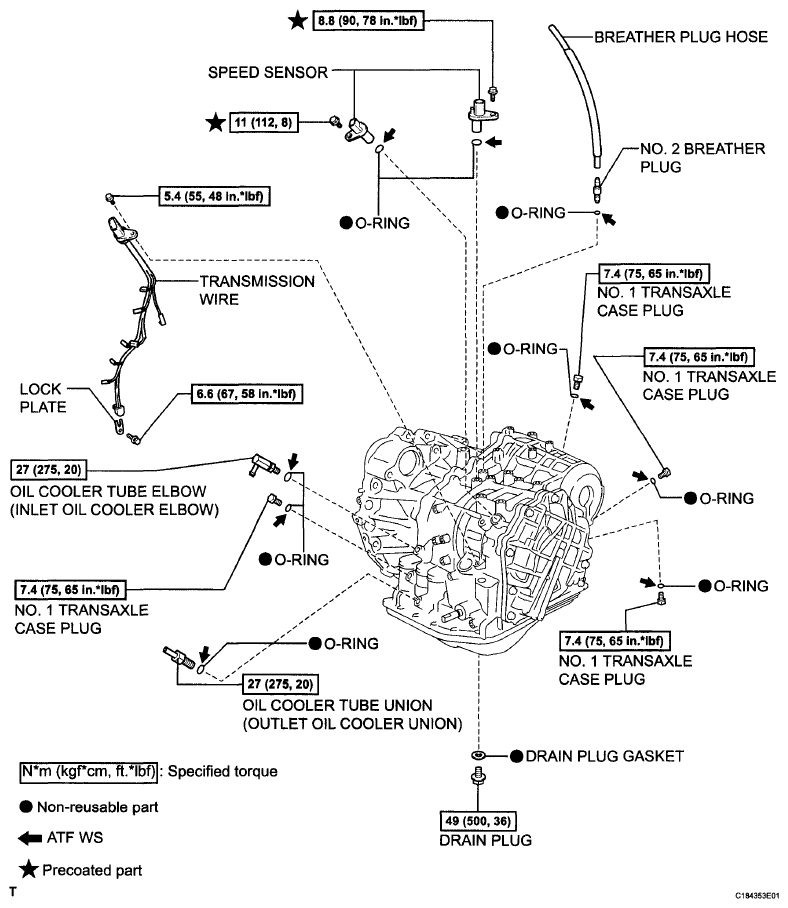

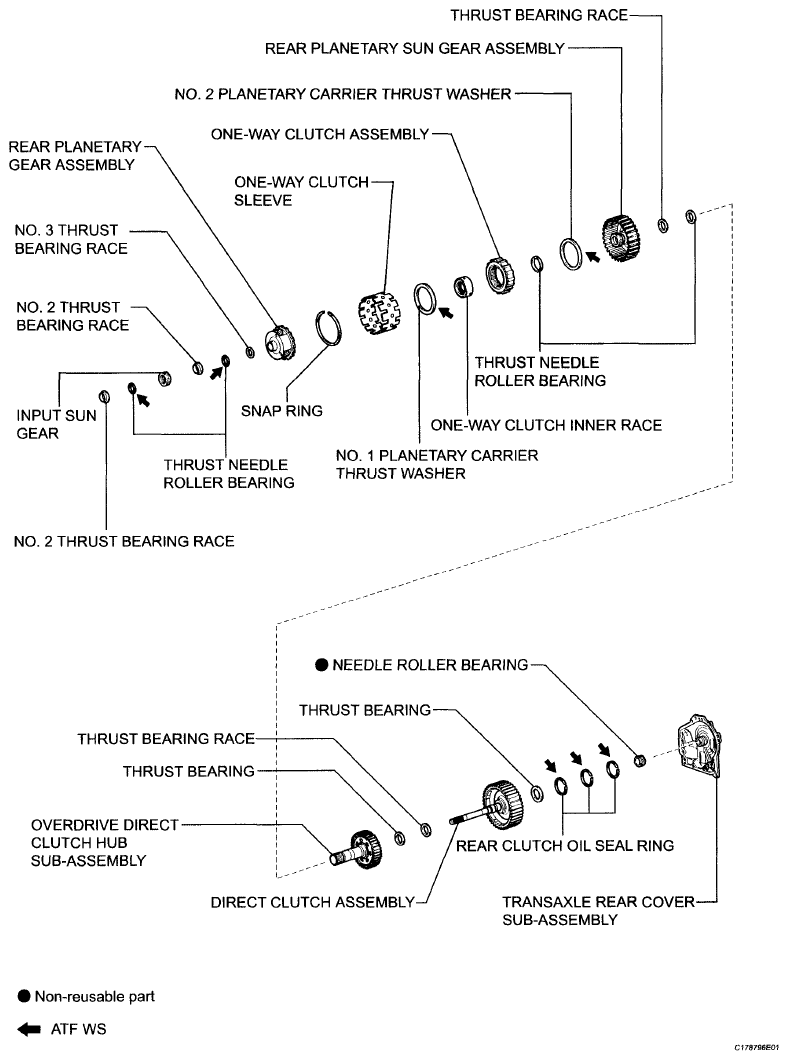

Fig 3: Automatic Transaxle Unit Components With Torque Specification (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

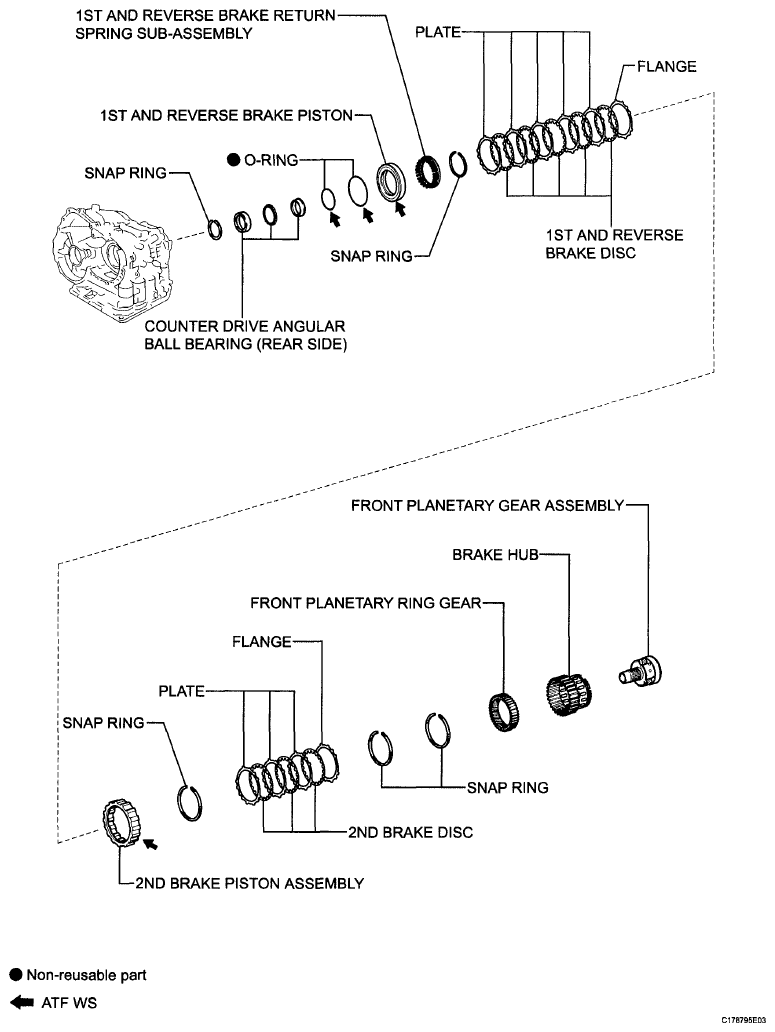

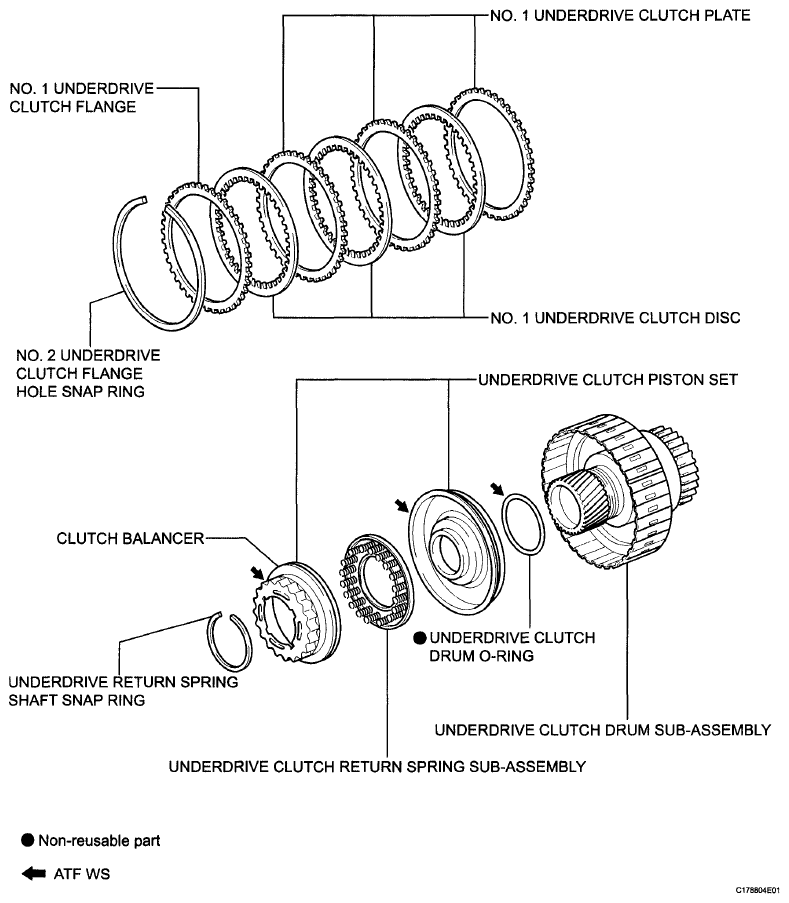

Fig 4: Automatic Transaxle Unit Components With Torque Specification (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

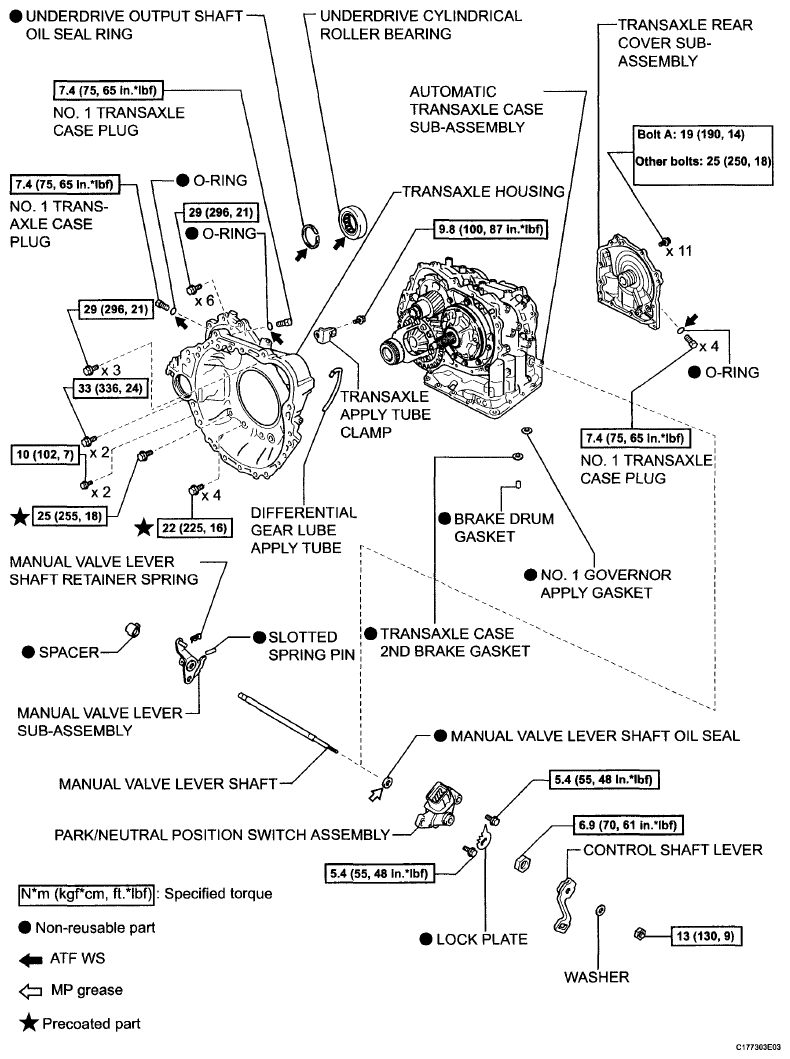

Fig 5: Automatic Transaxle Unit Components With Torque Specification (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

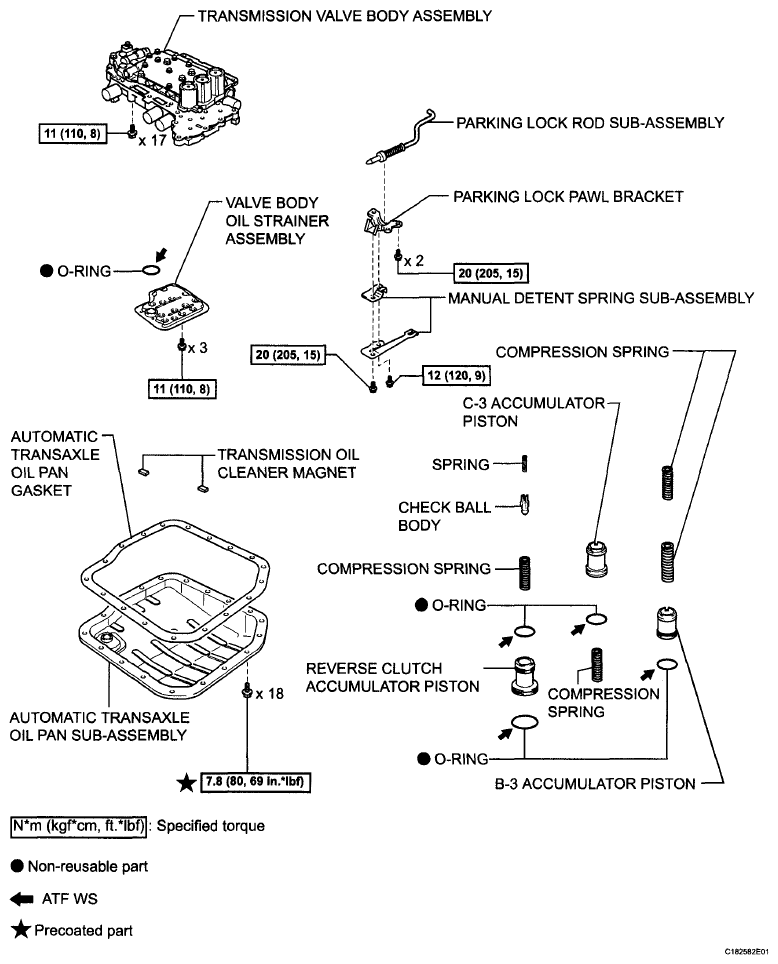

Fig 6: Automatic Transaxle Unit Components With Torque Specification (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

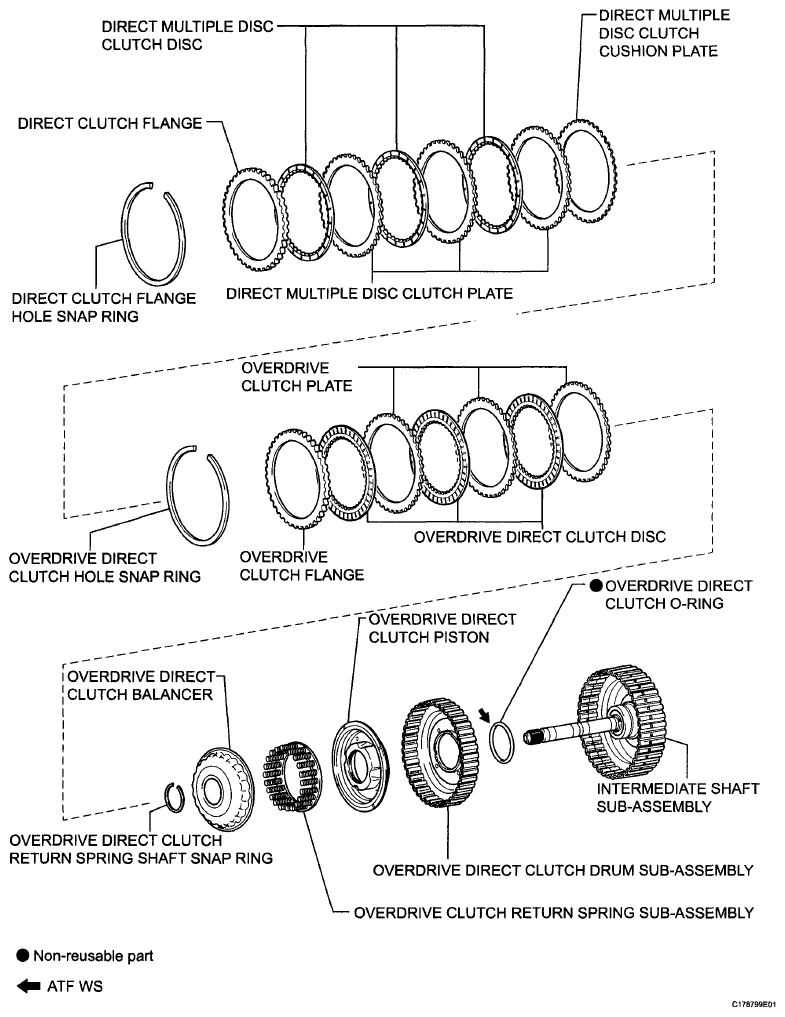

Fig 7: Automatic Transaxle Unit Components With Torque Specification (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

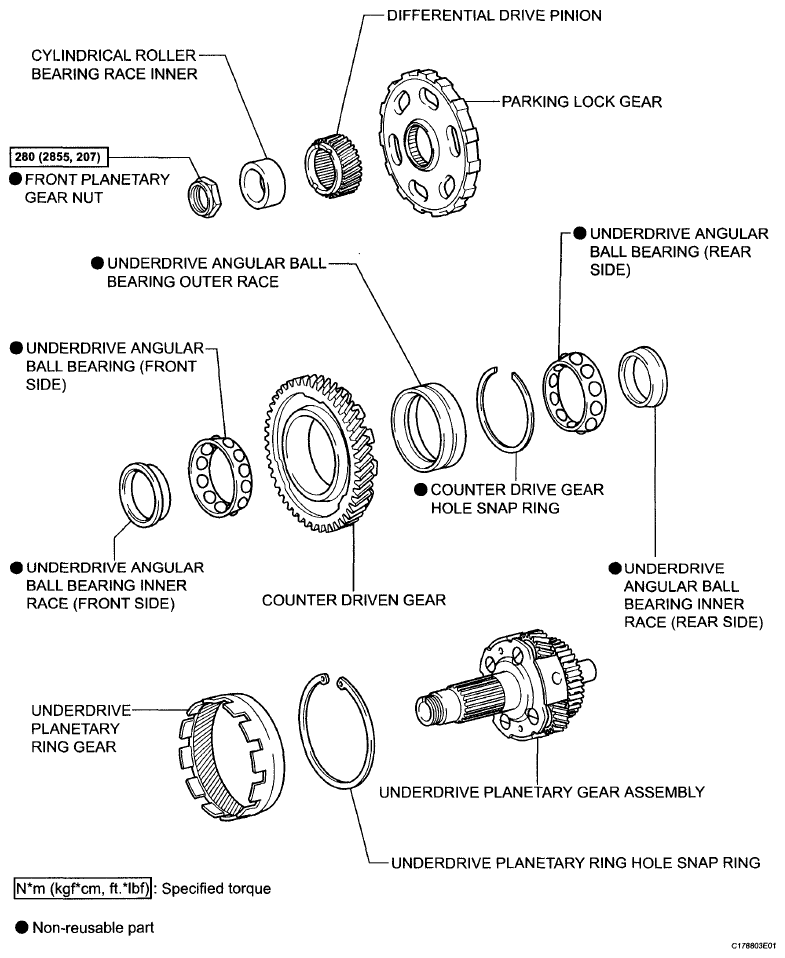

Fig 8: Automatic Transaxle Unit Components With Torque Specification (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Automatic Transaxle Unit Components With Torque Specification (9 Of 13)

Fig 10: Automatic Transaxle Unit Components With Torque Specification (10 Of 13)

Fig 11: Automatic Transaxle Unit Components With Torque Specification (11 Of 13)

Fig 12: Automatic Transaxle Unit Components With Torque Specification (12 Of 13)

Fig 13: Automatic Transaxle Unit Components With Torque Specification (13 Of 13)
