Smart Key System (Except TMC Made)

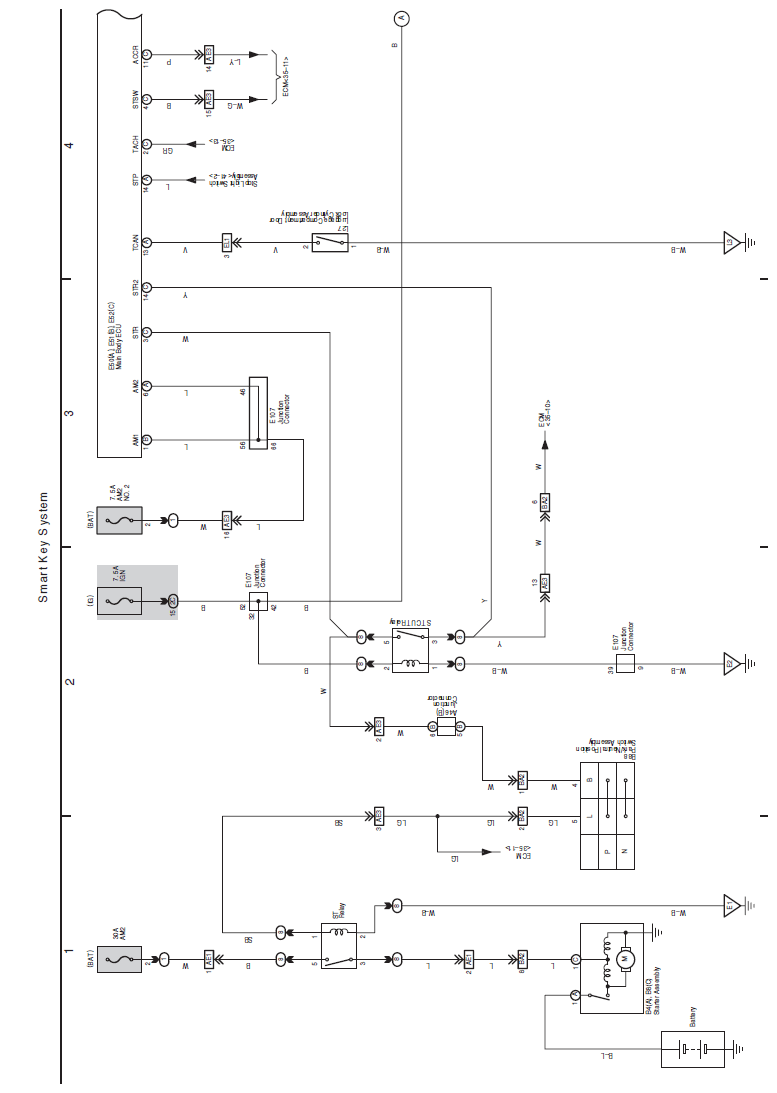

Fig 1: Smart Key System - Electrical Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

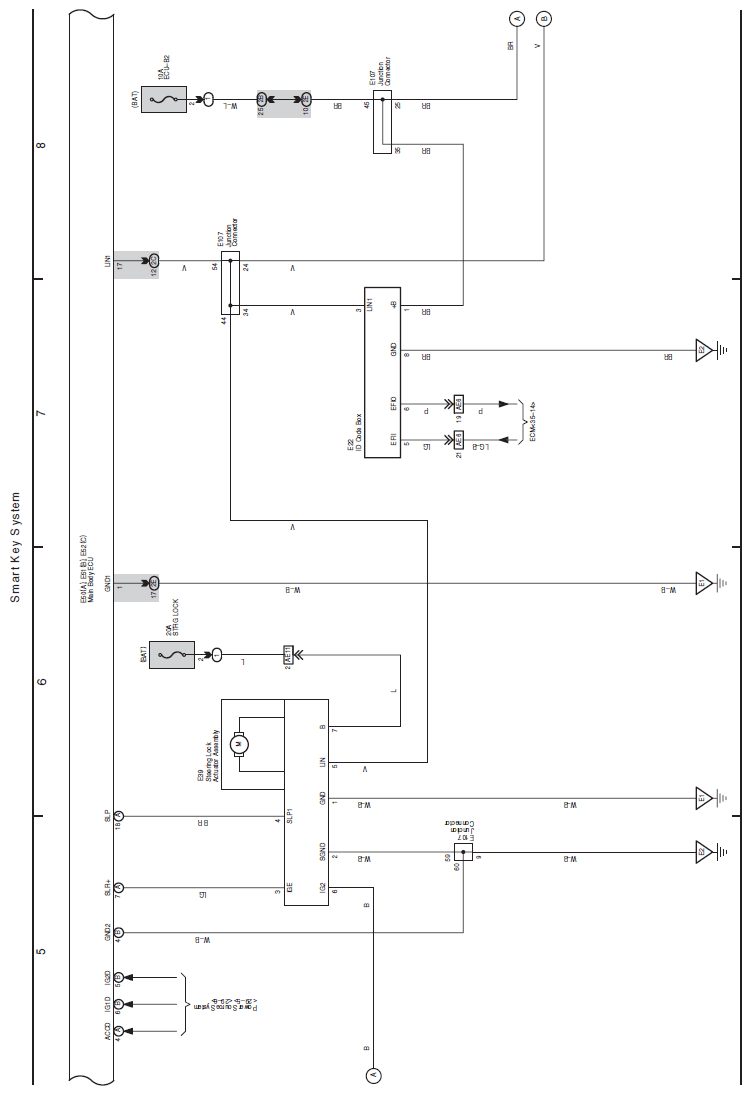

Fig 2: Smart Key System - Electrical Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

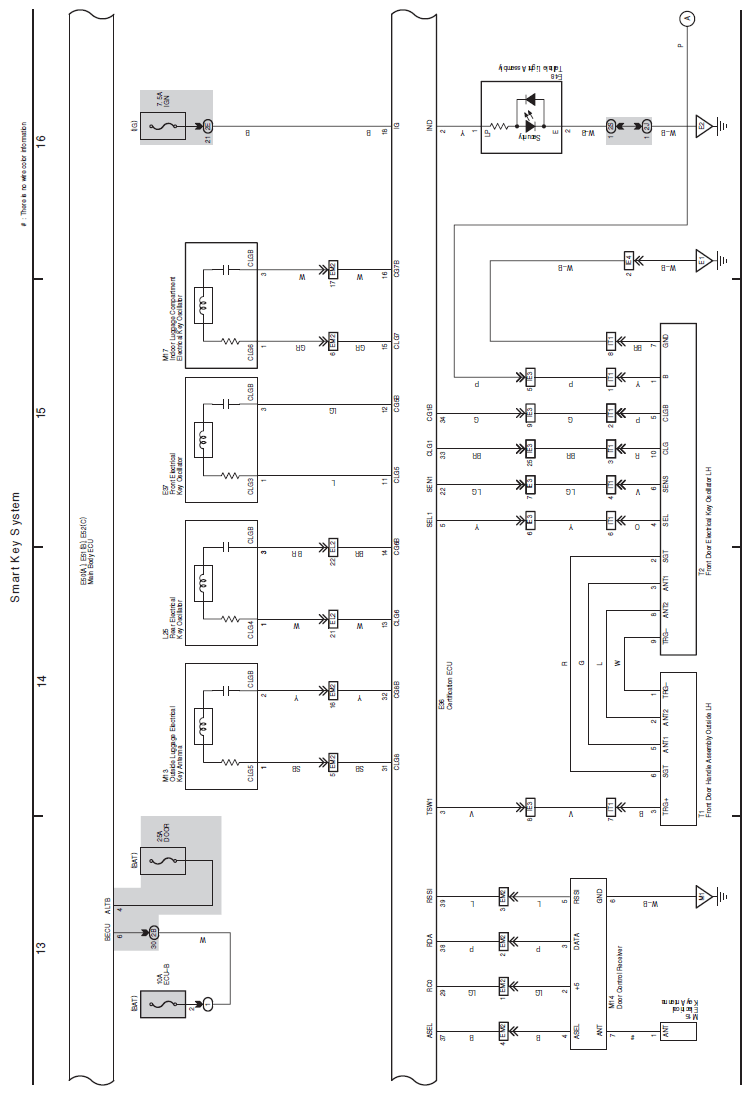

Fig 3: Smart Key System - Electrical Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

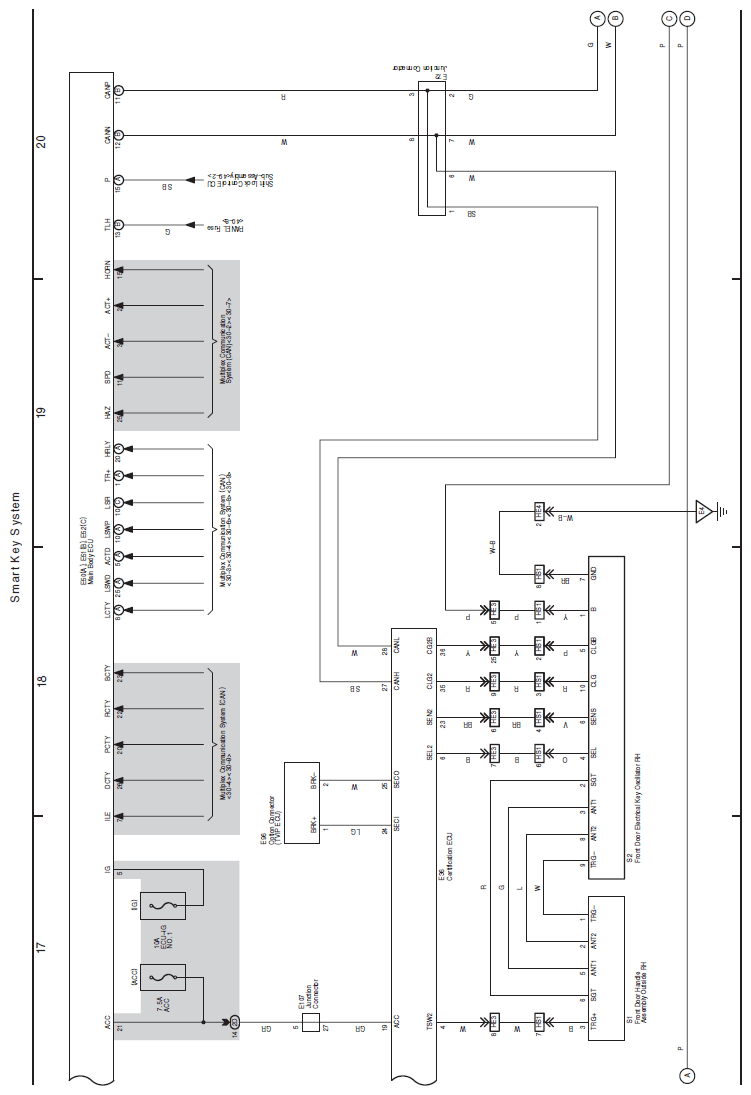

Fig 4: Smart Key System - Electrical Wiring Diagram (4 Of 6)

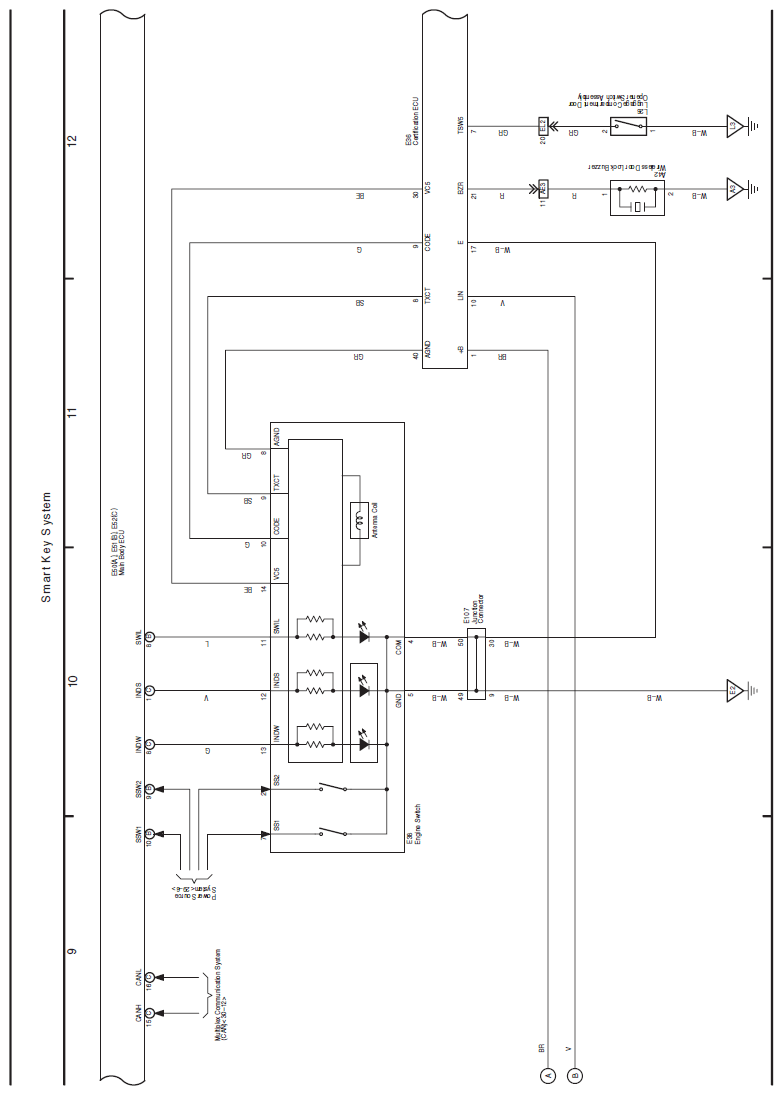

Fig 5: Smart Key System - Electrical Wiring Diagram (5 Of 6)

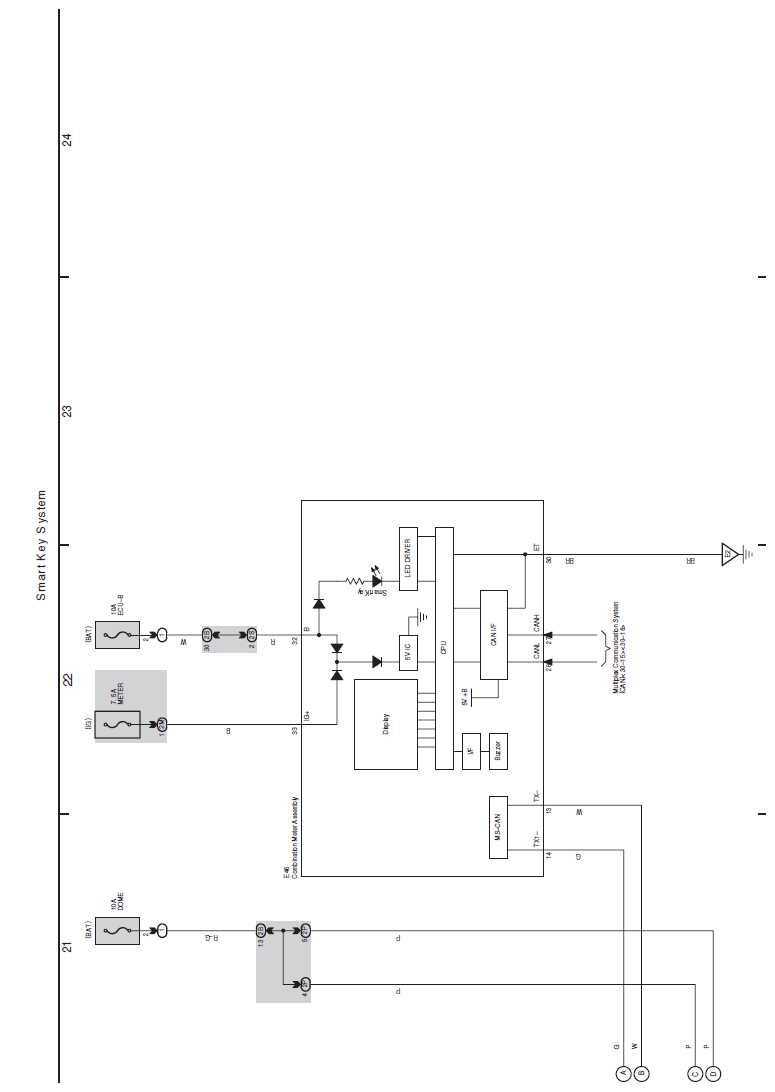

Fig 6: Smart Key System - Electrical Wiring Diagram (6 Of 6)
