How To Read This Section

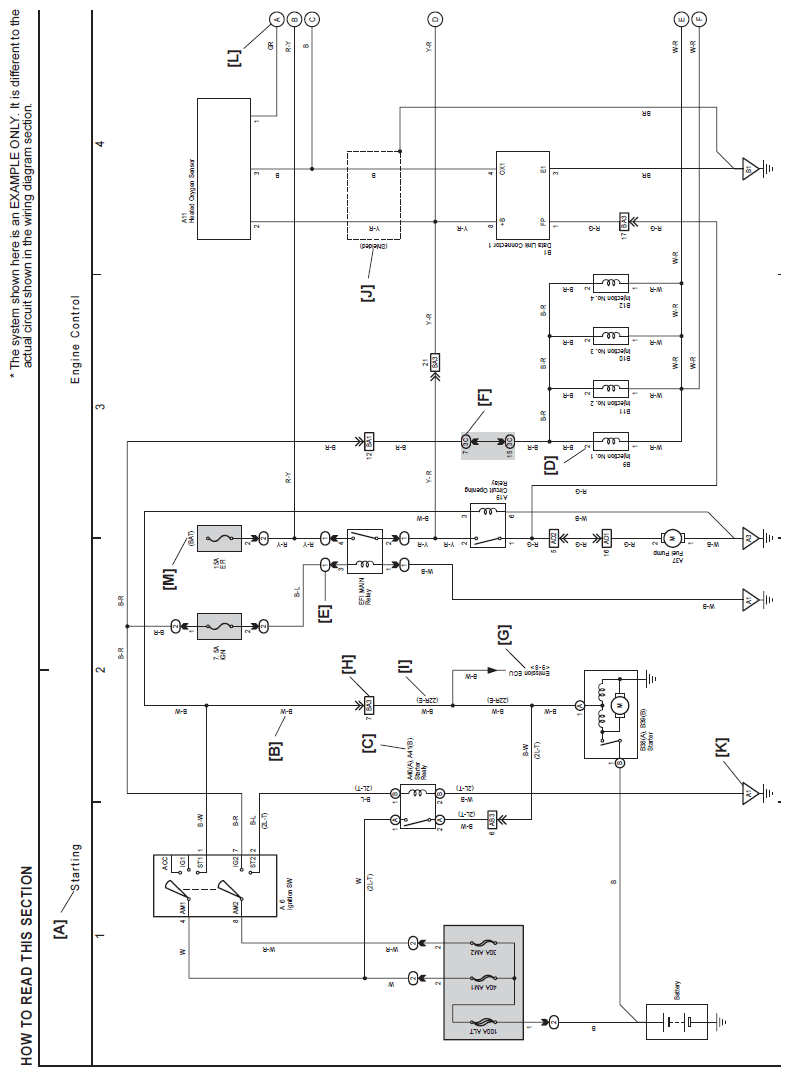

Fig 1: Electrical Wiring Diagram Example
G07605089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

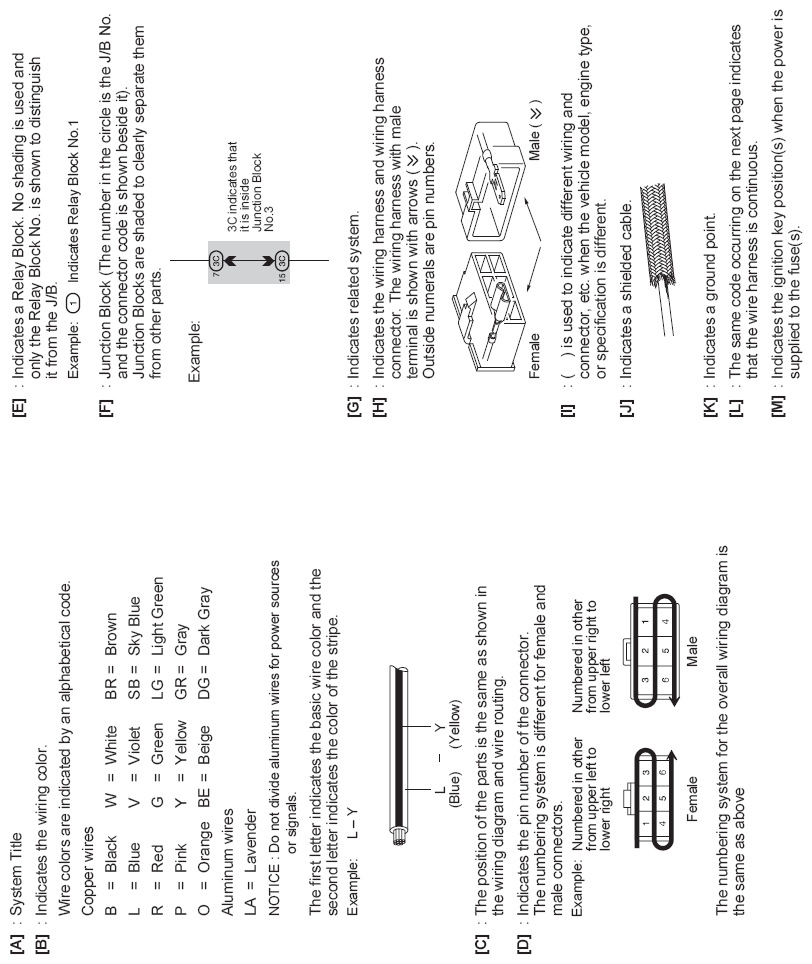

Fig 2: Electrical Wiring Reference Chart
G07605090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
