Data Link Connector 3 (Except TMC Made), Engine Immobiliser System (w/o Smart Key System) (Except TMC Made)

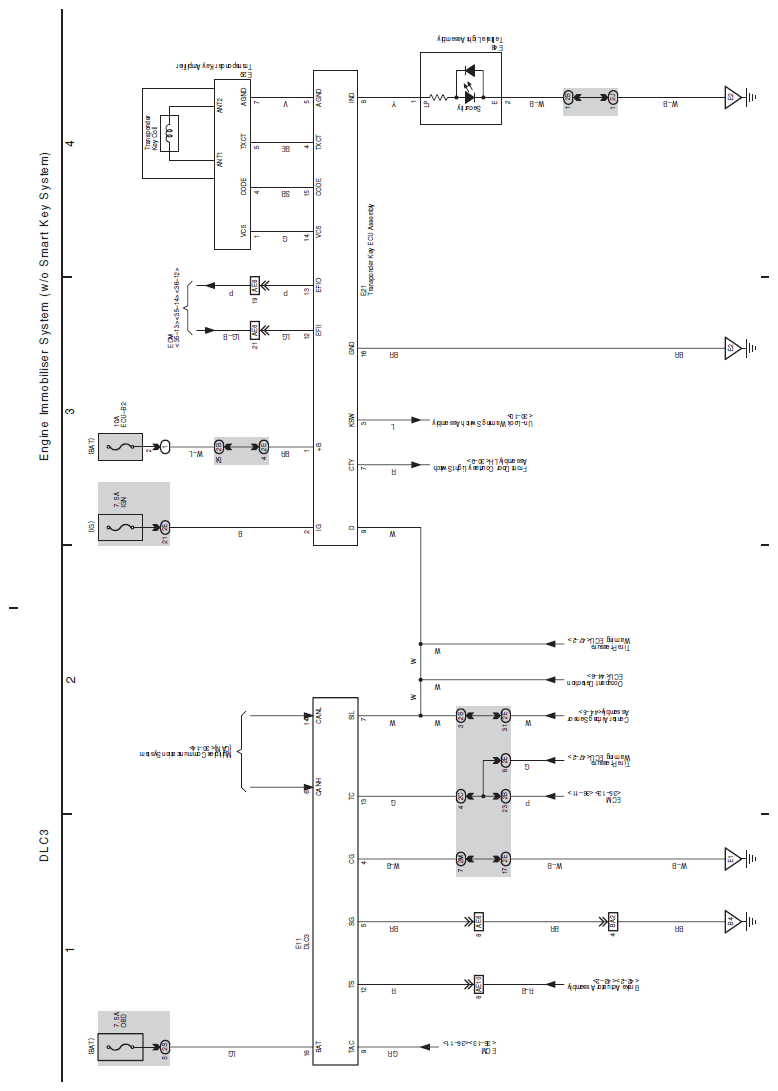

Fig 1: DLC3 And Engine Immobiliser System (w/o Smart Key System) - Electrical Wiring Diagram
G07605166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
