Brake Pedal: Components

Fig 1: Brake Pedal Replacement Components With Torque Specifications (1 Of 2)
G06009975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

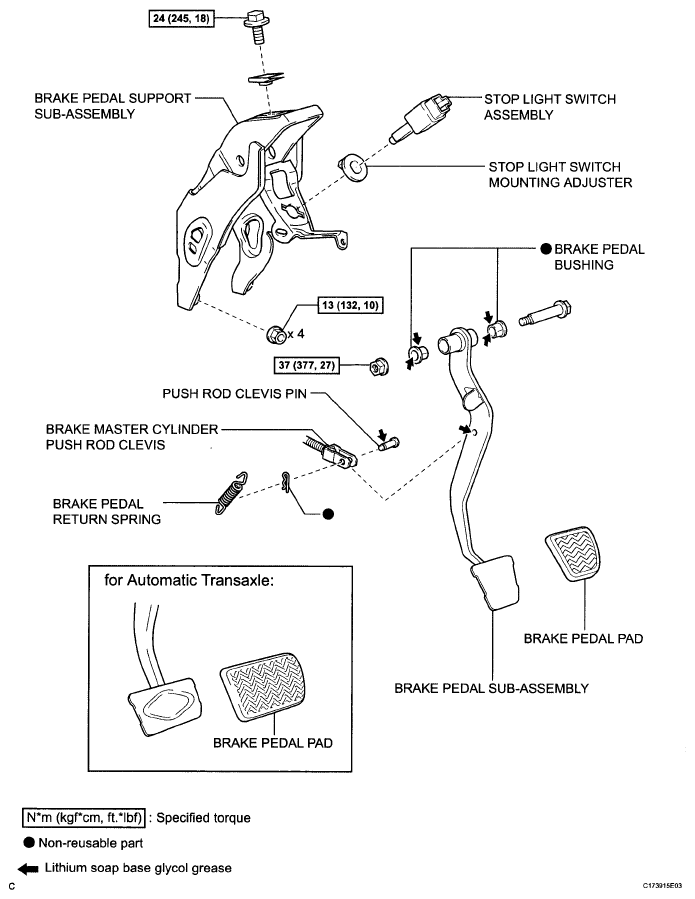

Fig 2: Brake Pedal Replacement Components With Torque Specifications (2 Of 2)
G06009976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
