Brake Master Cylinder: Components

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 5)
G06008265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 5)
G06009994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Brake Booster Replacement Components With Torque Specifications (3 Of 5)
G06009187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

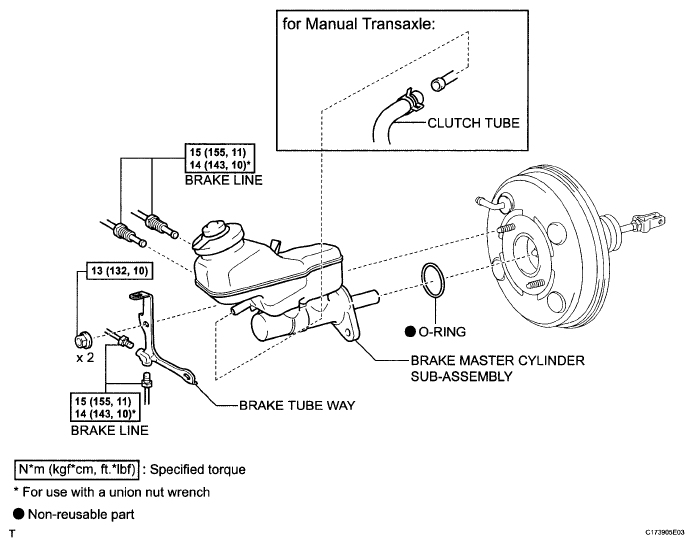

Fig 4: Brake Booster Replacement Components With Torque Specifications (4 Of 5)
G06009996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

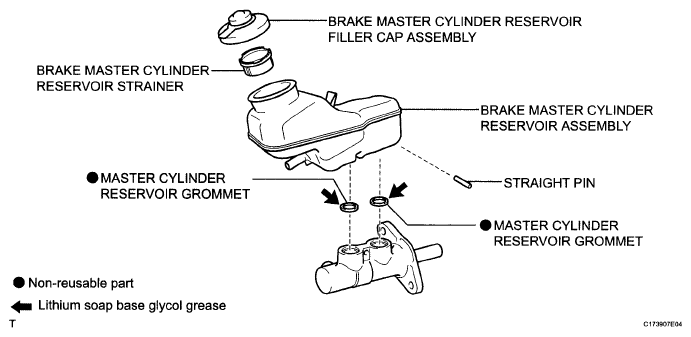

Fig 5: Brake Master Cylinder Replacement Components With Torque Specifications (5 Of 5)
G06009997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
