Fuel Lid Lock Control Cable Assembly: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system (See AIRBAG SYSTEM ).
  2. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
  3. REMOVE OUTER SEAT TRACK COVER (for Manual Seat)  (See REMOVAL )
  4. REMOVE INNER SEAT TRACK COVER (for Manual Seat)  (See REMOVAL )
  5. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)  (See DISASSEMBLY )
  6. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
  7. REMOVE OUTER SEAT TRACK COVER (for Power Seat)  (See REMOVAL )
  8. REMOVE INNER SEAT TRACK COVER (for Power Seat)  (See REMOVAL )
  9. REMOVE FRONT SEAT ASSEMBLY (for Power Seat)  (See REMOVAL )
  10. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  11. REMOVE COWL SIDE TRIM BOARD LH  (See REMOVAL )
  12. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  13. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  14. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  15. REMOVE LAP BELT OUTER ANCHOR COVER  (See REMOVAL )
  16. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  17. REMOVE LOWER CENTER PILLAR GARNISH LH  (See REMOVAL )
  18. REMOVE SPARE WHEEL COVER
    1. Remove the spare wheel cover.
      Fig 1: Identifying Spare Wheel Cover
      G06016326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR SEAT HEADREST ASSEMBLY LH
  20. REMOVE REAR SEAT CUSHION ASSEMBLY  (See REMOVAL )
  21. REMOVE REAR SEATBACK ASSEMBLY LH  (See REMOVAL )
  22. REMOVE REAR SEAT SIDE GARNISH LH  (See REMOVAL )
  23. REMOVE ROOF SIDE INNER GARNISH BOARD LH  (See REMOVAL )
  24. REMOVE REAR FLOOR FINISH PLATE  (See REASSEMBLY )
  25. REMOVE INNER LUGGAGE COMPARTMENT TRIM COVER LH
    1. Remove the 4 clips and inner luggage compartment trim cover LH.

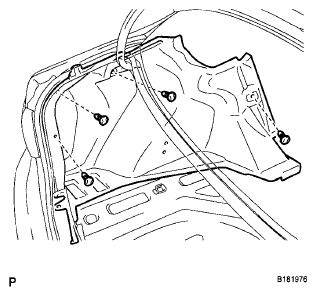

    Fig 2: Identifying Inner Luggage Compartment Trim Cover LH Clips
    G06016327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. DISCONNECT LUGGAGE DOOR LOCK OPEN LEVER SUB-ASSEMBLY
    1. Remove the bolt.
      Fig 3: Identifying Luggage Door Lock Open Lever Sub-Assembly Bolt
      G06016328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the fuel lid lock control cable sub-assembly and the luggage door lock open lever sub-assembly as shown in the illustration.
    Fig 4: Disconnecting Fuel Lid Lock Control Cable Sub-Assembly And Luggage Door Lock Open Lever Sub-Assembly
    G06016329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
    1. Disengage the 2 claws and disconnect the fuel lid lock control cable sub-assembly.
      Fig 5: Disconnecting Fuel Lid Lock Control Cable Sub-Assembly
      G05422817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 7 clamps and remove the fuel lid lock control cable sub-assembly.

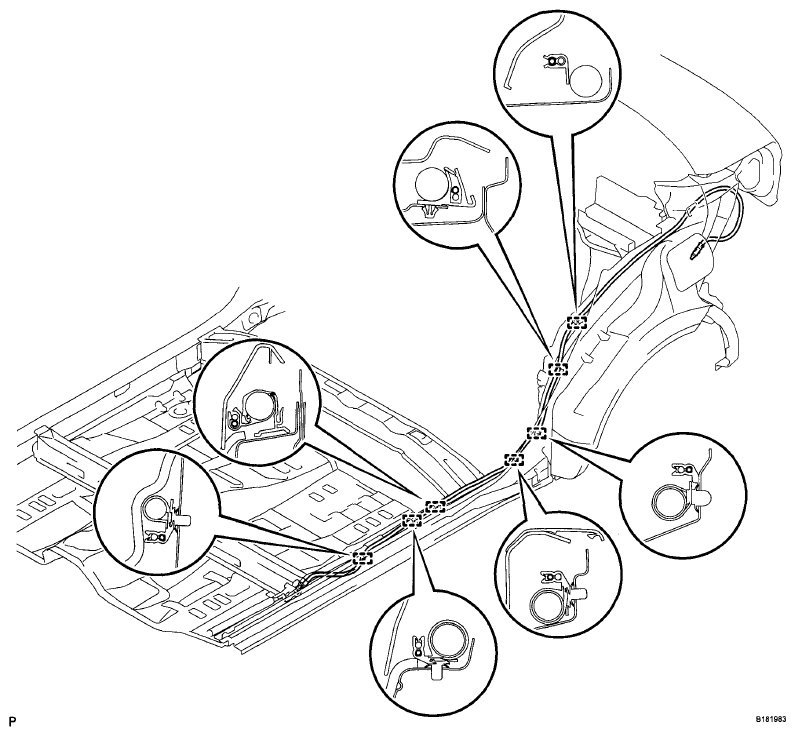

      Fig 6: Identifying Fuel Lid Lock Control Cable Sub-Assembly Clamps
      G06016331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
