Front Wiper Motor: Removal

  1. REMOVE FRONT WIPER ARM HEAD CAP
    1. Remove the 2 windshield wiper arm covers.
    Fig 1: Locating Windshield Wiper Arm Covers
    G06016598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
    1. Remove the nut and the front wiper arm and blade assembly LH.
    Fig 2: Identifying Front Wiper Arm And Blade Assembly LH Nut
    G06016599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
    1. Remove the nut and the front wiper arm and blade assembly RH.
    Fig 3: Identifying Front Wiper Arm And Blade Assembly RH Nut
    G06016600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE HOOD TO COWL TOP SEAL
    1. Disengage the 7 clips and remove the hood to cowl top seal.
    Fig 4: Identifying Hood To Cowl Top Seal Clips
    G06016601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CENTER NO. 1 COWL TOP VENTILATOR LOUVER
    1. Disengage the clip and 14 claws, and remove the center No. 1 cowl top ventilator louver.

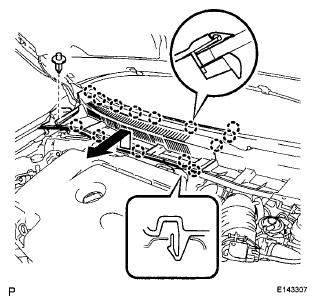

    Fig 5: Installing Center No. 1 Cowl Top Ventilator Louver
    G06016602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE COWL TOP VENTILATOR LOUVER LH
    1. Disengage the clip and 8 claws, and remove the cowl top ventilator louver LH.

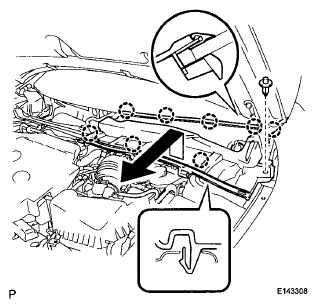

    Fig 6: Removing Cowl Top Ventilator Louver LH
    G06016603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 2 bolts and the windshield wiper motor and link assembly.
    Fig 7: Removing Windshield Wiper Motor And Link Assembly
    G06016604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY
    1. Using a screwdriver with its tip taped, disconnect the rod of the windshield wiper link assembly from the crank arm pivot of the windshield wiper motor assembly as shown in the illustration.
      Fig 8: Disconnecting Rod Of Windshield Wiper Link Assembly
      G06016605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the electrical tape from the wire harness so that the connector can be disconnected.
      Fig 9: Identifying Windshield Wiper Motor Assembly Connector
      G06016606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector.
    4. Remove the 3 bolts and the windshield wiper motor assembly.

      HINT:

      If the windshield wiper motor assembly cannot be removed from the windshield wiper link assembly, turn the crank arm so that the windshield wiper motor assembly can be removed.

      Fig 10: Identifying Windshield Wiper Motor Assembly Bolts
      G06016607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
