| MIL (Check engine warning light) |
ECM |
Combination Meter |

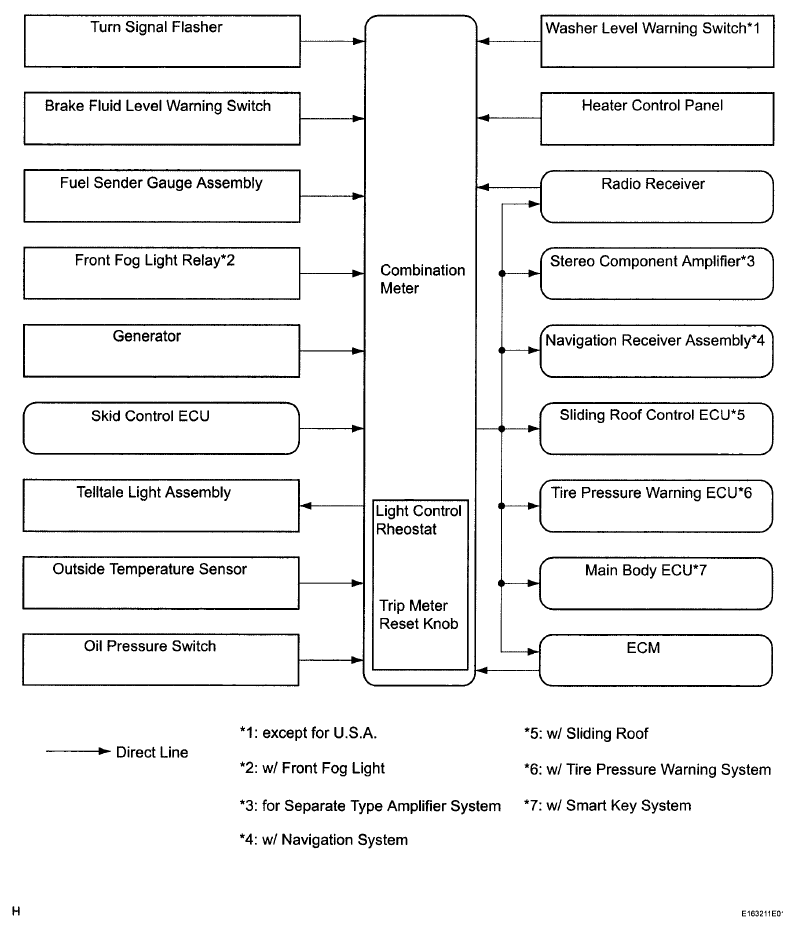

Direct Line |
| Starter |

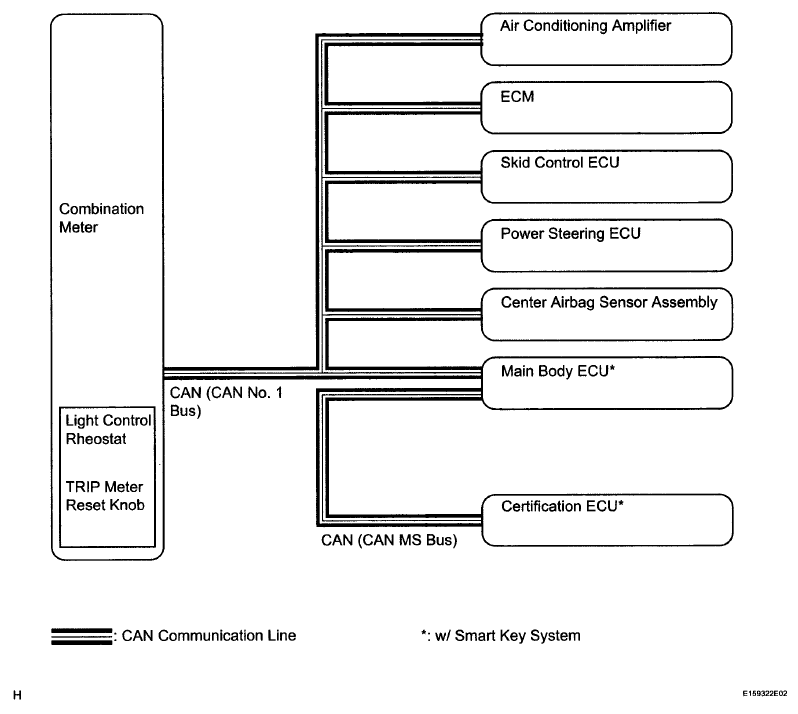

CAN (CAN No. 1 Bus) |
| Test mode |
| Tachometer |
| Engine coolant temperature |
| Cruise indicator light |
| Cruise control warning |
| Sports shift reject buzzer request |
| A/T shift position |
| Engine type information |
| Vehicle speed |
Skid Control ECU |
Combination Meter |
Direct Line and CAN (CAN No. 1 Bus) |
| ABS warning light |
CAN (CAN No. 1 Bus) |
| Brake warning light |
| Slip indicator light |
| VSC off indicator light |
| Parking brake |
| Each door courtesy switch |
Main Body ECU |
Combination Meter |
CAN (CAN No. 1 Bus) |
| Driver side seat belt buckle switch |
| Parking brake switch |
| Wireless buzzer |
| Sliding roof |
| Sliding roof warning buzzer request |
| Front passenger side seat belt buckle switch |
Center Airbag Sensor Assembly |
Combination Meter |
CAN (CAN No. 1 Bus) |
| SRS warning light |
| Front passenger side seat condition |
| Diagnosis information |
Center Airbag Sensor Assembly |
Combination Meter |
CAN (CAN No. 1 Bus) |
| ECM |
| Skid Control ECU |
| Power Steering ECU |
| EPS warning light |
Power Steering ECU |
Combination Meter |
CAN (CAN No. 1 Bus) |
| Vehicle speed |
Combination Meter |
Air Conditioning Amplifier |
CAN (CAN No. 1 Bus) |
| Certification ECU |
| Power Steering ECU |
| Center Airbag Sensor Assembly |
| ECM |
Direct Line |
| Radio Receiver |
| Sliding Roof Control ECU |
| Tire Pressure Warning ECU |
| Main Body ECU |
| Navigation Receiver Assembly |
| Stereo Component Amplifier |
| Illumination |
Combination Meter |
Main Body ECU |
CAN (CAN No. 1 Bus) |
| Vehicle specification |
Combination Meter |
Air Conditioning Amplifier |
CAN (CAN No. 1 Bus) |
| Smart key indicator light |
Certification ECU |
Combination Meter |
|
| Fuel level |
Fuel Sender Gauge Assembly |
Combination Meter |
Direct Line |
| Turn indicator light |
Turn Signal Flasher |
Combination Meter |
Direct Line |
| High beam indicator light |
H-LP HI Fuse |
Combination Meter |
Direct Line |
| Head indicator light |
DRL Relay |
Combination Meter |
Direct Line |
| Tail indicator light |
TAIL Relay |
Combination Meter |
Direct Line |
| Front fog indicator light |
FR Fog Relay |
Combination Meter |
Direct Line |
| Outside temperature |
Outside Temperature Sensor |
Combination Meter |
Direct Line |
| Brake fluid level |
Brake Fluid Level Warning Switch |
Combination Meter |
Direct Line |
| Charge warning light |
Generator |
Combination Meter |
Direct Line |
| Oil pressure warning light |
Oil Pressure Switch |
Combination Meter |
Direct Line |
| Washer level warning light |
Washer Level Warning Switch |
Combination Meter |
Direct Line |
| Tire pressure warning light |
Tire Pressure Warning ECU |
Combination Meter |
Direct Line |
| Front passenger side seat belt warning light |
Combination Meter |
Telltale Light Assembly |
Direct Line |
