Shift Lever Assembly: Installation

INSTALL SHIFT LEVER ASSEMBLY
1. Install the shift lever assembly with the 4 bolts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  Fig 1: Locating Shift Lever Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Rotate the transmission control cable nut counterclockwise approximately 180° and, while holding the nut in that position, push in the stopper until it makes 2 "click" sounds.

  Fig 2: Rotating Transmission Control Cable Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

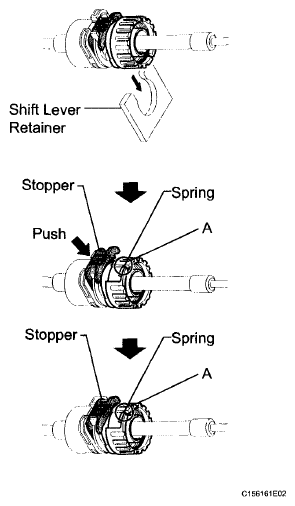

2. Install the outer part of the transmission control cable to the shift lever retainer, check that the position of the spring is the same as A shown in the illustration, and push in the stopper.
  HINT:

  If the stopper cannot be pushed in, slightly rotate the nut clockwise and then push in the stopper.

  Fig 3: Installing Outer Part Of Transmission Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Push the two claws together at the top of the transmission control cable lock piece. While holding the two claws together, push the two lugs on the bottom of the lock piece toward each other and upward to pull out the lock piece.

  Fig 4: Pushing Claws Of Transmission Control Cable Lock Piece
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the transmission control shift cable to the shift lever assembly.
5. Install the control select cable to the shift lever assembly.
  NOTE:
  - Make sure to adjust the length at the neutral shift position.
  - Make sure that the lock piece is protruding from the adjuster case.
  Fig 5: Locating Shift Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the clip to the shift lever assembly.
7. Press in and lock the lock piece to the adjuster case.
  NOTE: Securely press in the lock piece until the lock engages.
8. Install the wire harness to the shift lever assembly with the 3 clamps.
ADJUST TRANSMISSION CONTROL SELECT CABLE (See ADJUSTMENT )
INSTALL CONSOLE BOX ASSEMBLY (See INSTALLATION )

Fig 6: Identifying Shift Lever Assembly And Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX CARPET (See INSTALLATION )
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (See INSTALLATION )
INSTALL FRONT NO. 1 CONSOLE BOX INSERT (See INSTALLATION )
INSTALL FRONT NO. 2 CONSOLE BOX INSERT (See INSTALLATION )
INSTALL INSTRUMENT PANEL BOX ASSEMBLY (See INSTALLATION )
INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (See INSTALLATION )
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (See INSTALLATION )
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH (See INSTALLATION )
