Front Passenger Airbag Assembly: Removal

  1. PRECAUTION
    CAUTION: Be sure to read Precaution thoroughly before servicing (See AIRBAG SYSTEM ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH  (See REMOVAL )
  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH  (See REMOVAL )
  5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  (See REMOVAL )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL END RH  (See REMOVAL )
  7. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY  (See REMOVAL )
  8. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY  (See REMOVAL )
  9. REMOVE COMBINATION METER ASSEMBLY  (See REMOVAL )
  10. REMOVE FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag)  (See REMOVAL )
  11. REMOVE FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag)  (See REMOVAL )
  12. REMOVE FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)

    HINT:

    Use the same procedure for the RH side and LH side (See REMOVAL ).

  13. REMOVE FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag)  (See REMOVAL )
  14. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  (See REMOVAL )
  15. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  16. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  (See REMOVAL )
  17. REMOVE NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY  (See REMOVAL )
  18. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and LH side (See REMOVAL ).

  19. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    3. Disconnect the connector.
    NOTE: When disconnecting the airbag connector, take care not to damage the airbag wire harness.

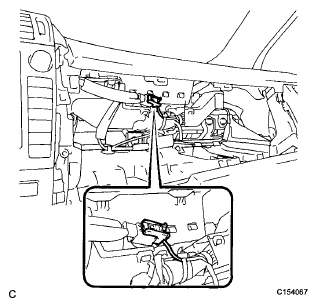

    Fig 1: Identifying Airbag Connector Location
    G06014861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See REMOVAL )
  21. REMOVE DEFROSTER NOZZLE ASSEMBLY  (See DISASSEMBLY )
  22. REMOVE NO. 3 HEATER TO REGISTER DUCT  (See DISASSEMBLY )
  23. REMOVE NO. 4 INSTRUMENT PANEL CUSHION (for TMC Made)  (See DISASSEMBLY )
  24. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
    1. Remove the 2 screws.
      Fig 2: Identifying Front Passenger Airbag Assembly And Screws
      G06014862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lean the instrument panel as shown the illustration and disengage the 5 hooks.
      Fig 3: Identifying Instrument Panel
      G06014863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 5 hooks and remove the front passenger airbag assembly from the instrument panel as shown in the illustration.
    Fig 4: Identifying Front Passenger Airbag Assembly
    G06014864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE INSTRUMENT PANEL WIRE ASSEMBLY
    1. Using a screwdriver with the tip wrapped with protective tape, disconnect the 2 airbag connectors and remove the clamp.
      NOTE: When disconnecting the airbag connector, take care not to damage the airbag wire harness.
      Fig 5: Identifying Instrument Panel Wire Assembly
      G06014865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clamp and instrument panel wire assembly from the front passenger airbag assembly.
    Fig 6: Identifying Instrument Panel Wire Assembly And Clamp
    G06014866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
