Fuel Tank: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
G06009794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

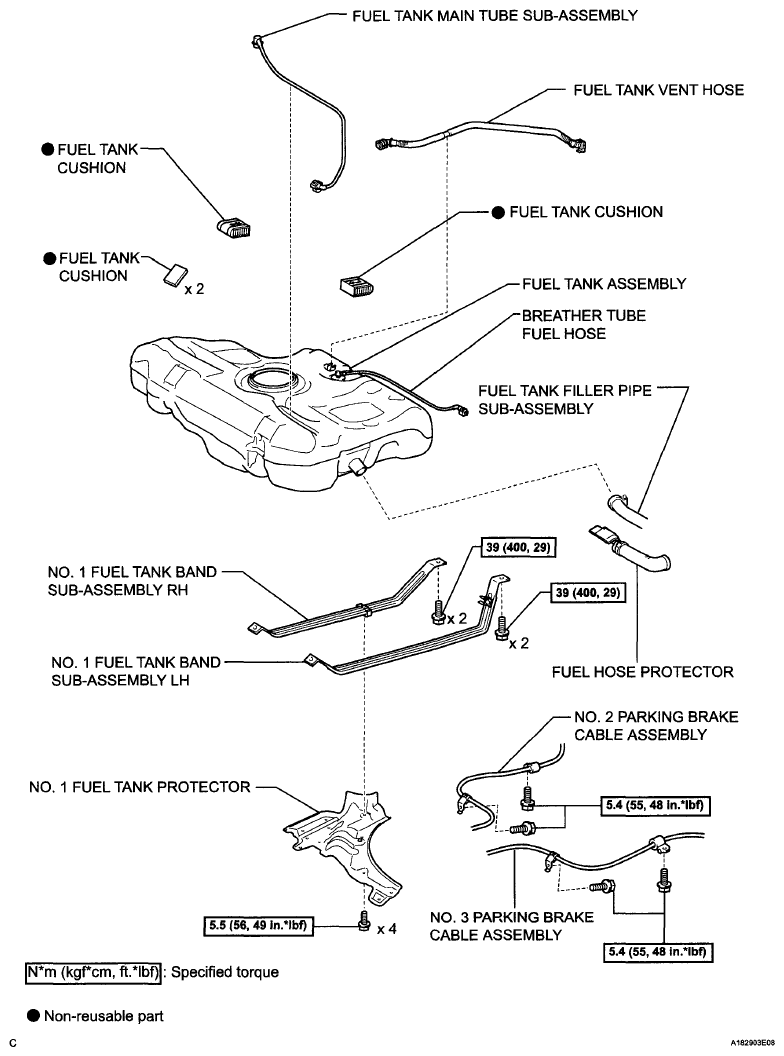

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
G06009795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
