Section 4 (Engine Cooling System (2AZ-FE))
>>
Cooling Fan System
>>
Parts Location
Parts Location
WARNING:
This page is about a different variant/trim than selected.

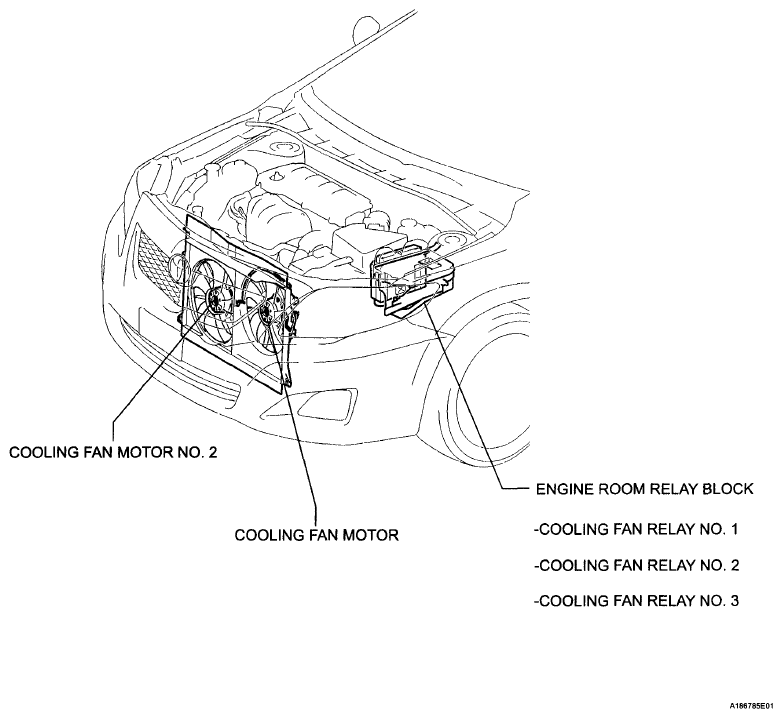

Fig 1: Identifying Cooling Fan System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
