Cooling Fan Motor: Components

WARNING: This page is about a different variant/trim than selected.

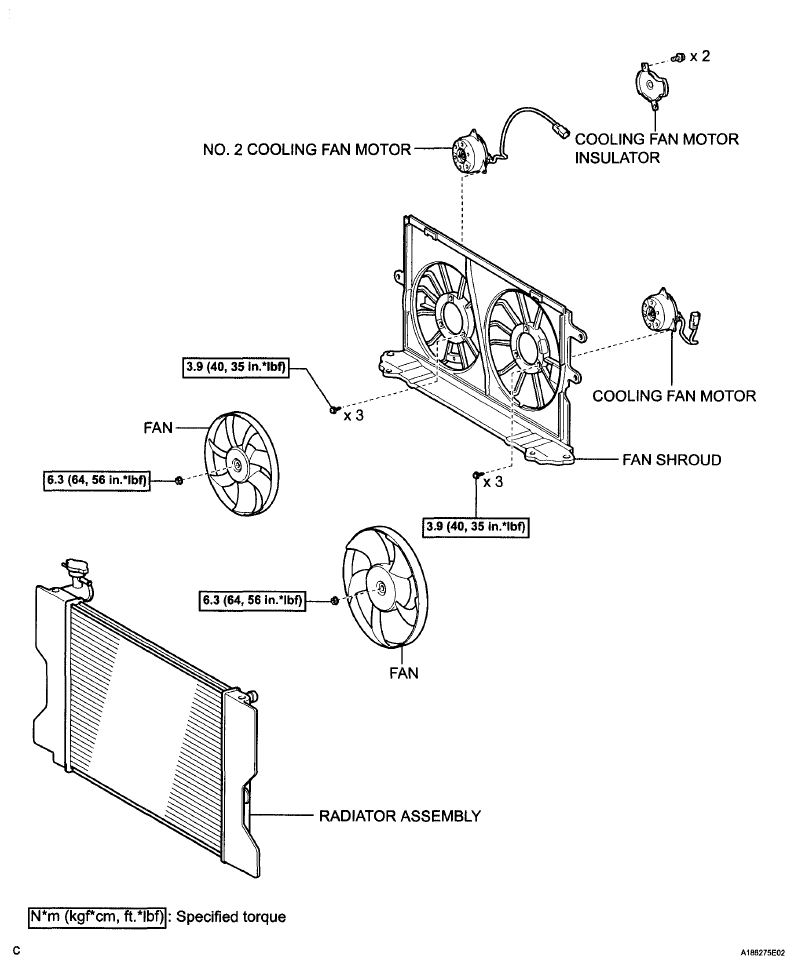

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications
G06009296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
