DTC P0504 Brake Switch "A" / "B" Correlation: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

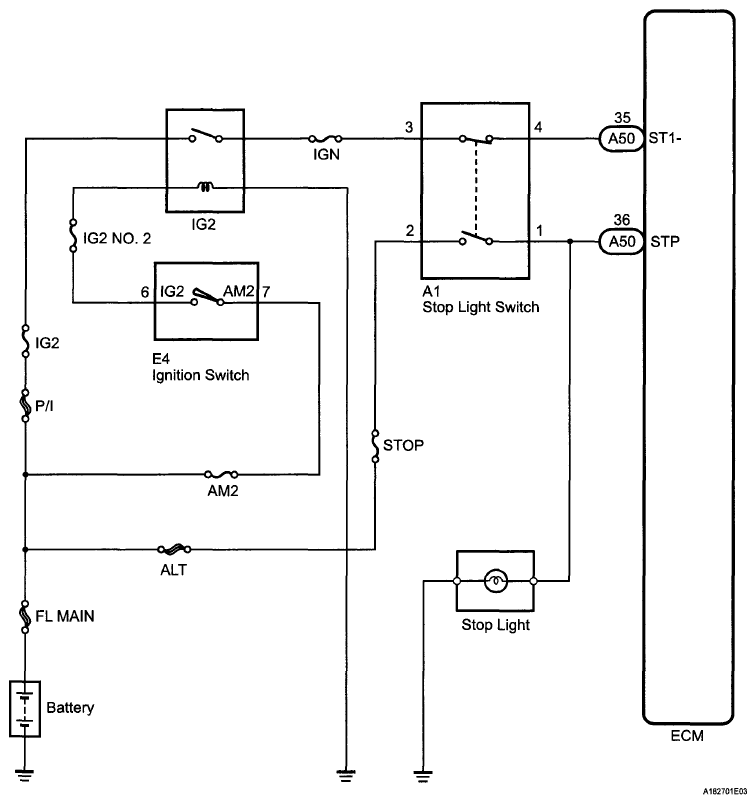

Fig 1: Stop Light Switch And ECM - Wiring Diagram
G06007427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
