Camshaft Oil Control Valve: Components

WARNING: This page is about a different variant/trim than selected.

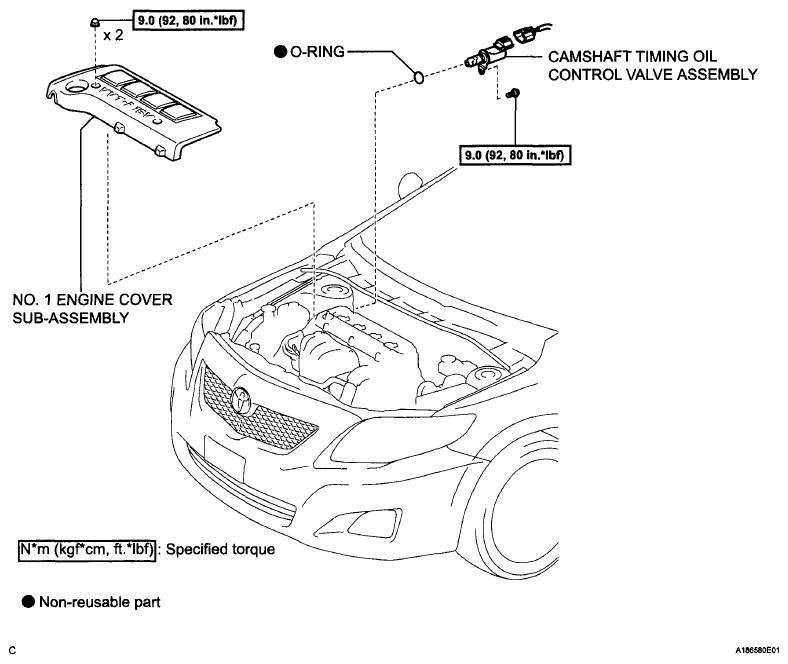

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
G06007584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
