Differential Oil Seal: Replacement

WARNING: This page is about a different variant/trim than selected.

REMOVE ENGINE UNDER COVER LH
REMOVE ENGINE UNDER COVER RH
DRAIN AUTOMATIC TRANSAXLE FLUID (See REMOVAL )
REMOVE FRONT DRIVE SHAFT ASSEMBLY
(See REMOVAL )
REMOVE NO. 1 TRANSAXLE CASE OIL SEAL
1. Using SST, remove the No. 1 transaxle case oil seal from the transaxle case.
  SST 09308-00010
Fig 1: Removing No. 1 Transaxle Case Oil Seal From Transaxle Case Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 TRANSAXLE CASE OIL SEAL
1. Using SST, remove the No. 2 transaxle case oil seal from the transaxle housing.
  SST 09308-00010
Fig 2: Removing No. 2 Transaxle Case Oil Seal From Transaxle Housing Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 TRANSAXLE CASE OIL SEAL
1. Using SST and a hammer, install a new oil seal to the transaxle case.
  SST 09387-00010, 09950-70010 (09951-07200)

  Standard depth:

  -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

  NOTE: Do not damage the oil seal lip.
2. Coat the lip of the oil seal with MP grease.

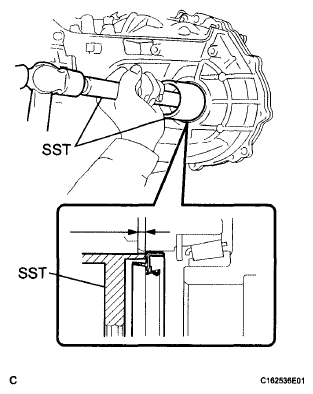

Fig 3: Installing Oil Seal To Transaxle Case Using SST And Hammer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 TRANSAXLE CASE OIL SEAL
1. Using SST and a hammer, install a new oil seal to the transaxle housing.
  SST 09726-27012 (09726-02041), 09950-70010 (09951-07200)

  Standard depth:

  2.2 to 3.2 mm (0.0866 to 0.126 in.)

  NOTE: Do not damage the oil seal lip.
2. Coat the lip of the oil seal with MP grease.
INSTALL FRONT DRIVE SHAFT ASSEMBLY
(See INSTALLATION )

Fig 4: Installing Oil Seal To Transaxle Housing Using SST And Hammer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD AUTOMATIC TRANSAXLE FLUID
INSPECT TRANSAXLE FLUID LEVEL (See ON-VEHICLE INSPECTION )
INSTALL ENGINE UNDER COVER LH
INSTALL ENGINE UNDER COVER RH
