Shift Lever: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
1. Engage the 3 claws and install the shift lock control ECU sub-assembly to the shift lock control unit.
2. Connect the shift lock solenoid connector to the shift lock control ECU sub-assembly.
INSTALL POSITION INDICATOR LIGHT BULB
1. Install the cap to the bulb.
2. Install the bulb to the position indicator light wire socket.

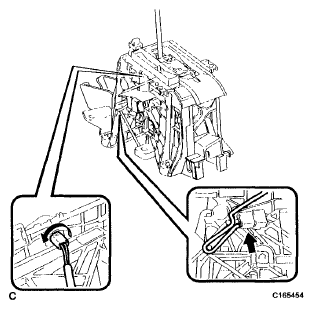

  Fig 1: Identifying Shift Lock Control ECU Sub-Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Connect terminals 7 and 14 to the connector as shown in the illustration.
2. Push in the stopper.

  Fig 2: Identifying Position Indicator Light Bulb Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the position indicator light wire socket and connector to the shift lock control unit.

  Fig 3: Identifying Indicator Light Wire Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 POSITION INDICATOR SLIDE COVER
1. Install the No. 2 position indicator slide cover to the position indicator slide cover.

  Fig 4: Identifying No 2 Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover with the No. 2 position indicator slide cover to the shift lock control unit.
INSTALL SHIFT LOCK RELEASE BUTTON COVER
1. Install the shift lock release button cover to the position indicator housing sub-assembly.

  Fig 5: Identifying Shift Lock Release Button Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
1. Engage the 4 claws and install the floor shift position indicator housing sub-assembly to the shift lock control unit.
  NOTE: Make sure that the claws are firmly engaged.
