INSTALL SHIFT LEVER ASSEMBLY
NOTE: Check that the park/neutral position switch and the shift lever are in N.

Fig 1: Identifying Floor Shift Position Indicator Housing Sub-Assembly And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the shift lever assembly with the 4 bolts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

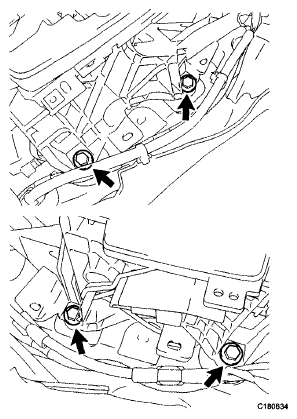

  Fig 2: Locating Bolts And Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 3 wire harness clamps to the shift lever assembly.

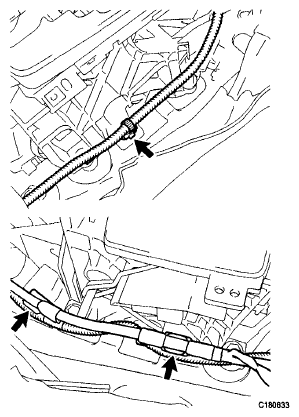

  Fig 3: Locating Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 2 connectors to the shift lever assembly.
INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Turn the nut of the transmission control cable 180° counterclockwise. While holding the nut in place, push in the stopper until the stopper clicks twice.

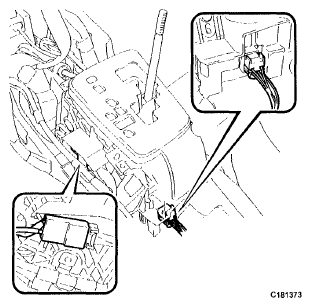

  Fig 4: Disconnecting Connectors From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 5: Turning Nut Of Transmission Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the outer part of the transmission control cable to the shift lever retainer. Check that the spring is positioned at "A" and push in the stopper.

  Fig 6: Checking Spring "A" And Push In Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.
3. Push the two claws together at the top of the transmission control cable lock piece. While holding the two claws together, push the two lugs on the bottom of the lock piece toward each other and upward to pull out the lock piece.

  Fig 7: Pushing Claws Of Transmission Control Cable Lock Piece
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the cable end to the shift lever assembly.
  NOTE:
  - Check that the lock piece is pulled up.
  - Install the cable end all the way to the base of the pin.
  Fig 8: Identifying Lock Piece
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Push the lock piece into the adjuster case.
  NOTE: Securely push in the lock piece until it locks.
INSTALL CONSOLE BOX ASSEMBLY (See INSTALLATION )
INSTALL CONSOLE BOX CARPET (See INSTALLATION )
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (See INSTALLATION )
INSTALL FRONT NO. 1 CONSOLE BOX INSERT (See INSTALLATION )
INSTALL FRONT NO. 2 CONSOLE BOX INSERT (See INSTALLATION )
INSTALL INSTRUMENT PANEL BOX ASSEMBLY (See INSTALLATION )
INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (See INSTALLATION )

Fig 9: Pushing Lock Piece Into Adjuster Case
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (See INSTALLATION )
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH (See INSTALLATION )
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
