Brake Pedal: Components: Illustration

WARNING: This page is about a different car, the 2010 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Brake Pedal Replacement Components (1 Of 2)
GTY168796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

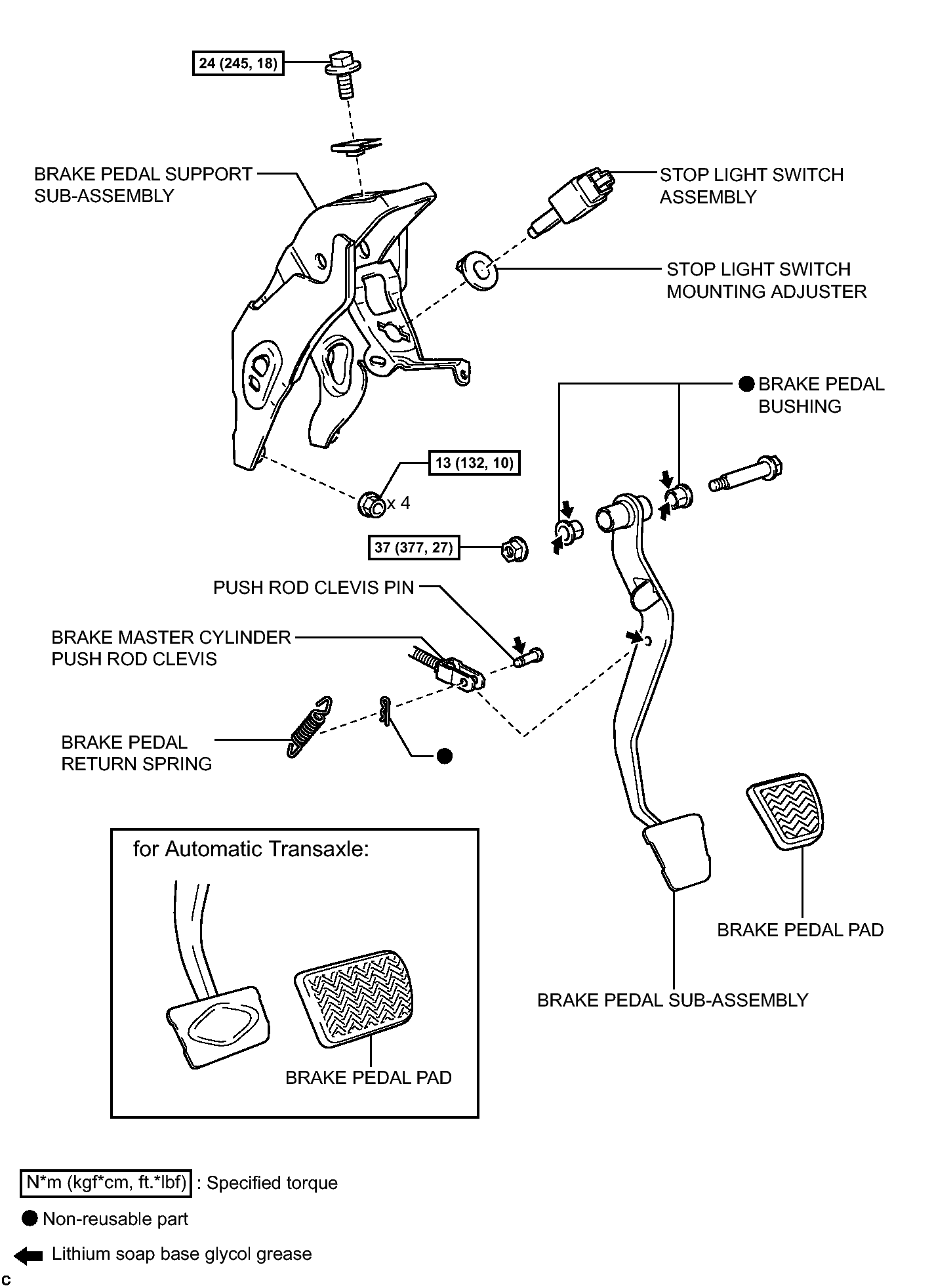

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (2 Of 2)
GTY177020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
