Brake Master Cylinder: Components: Illustration

WARNING: This page is about a different car, the 2010 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

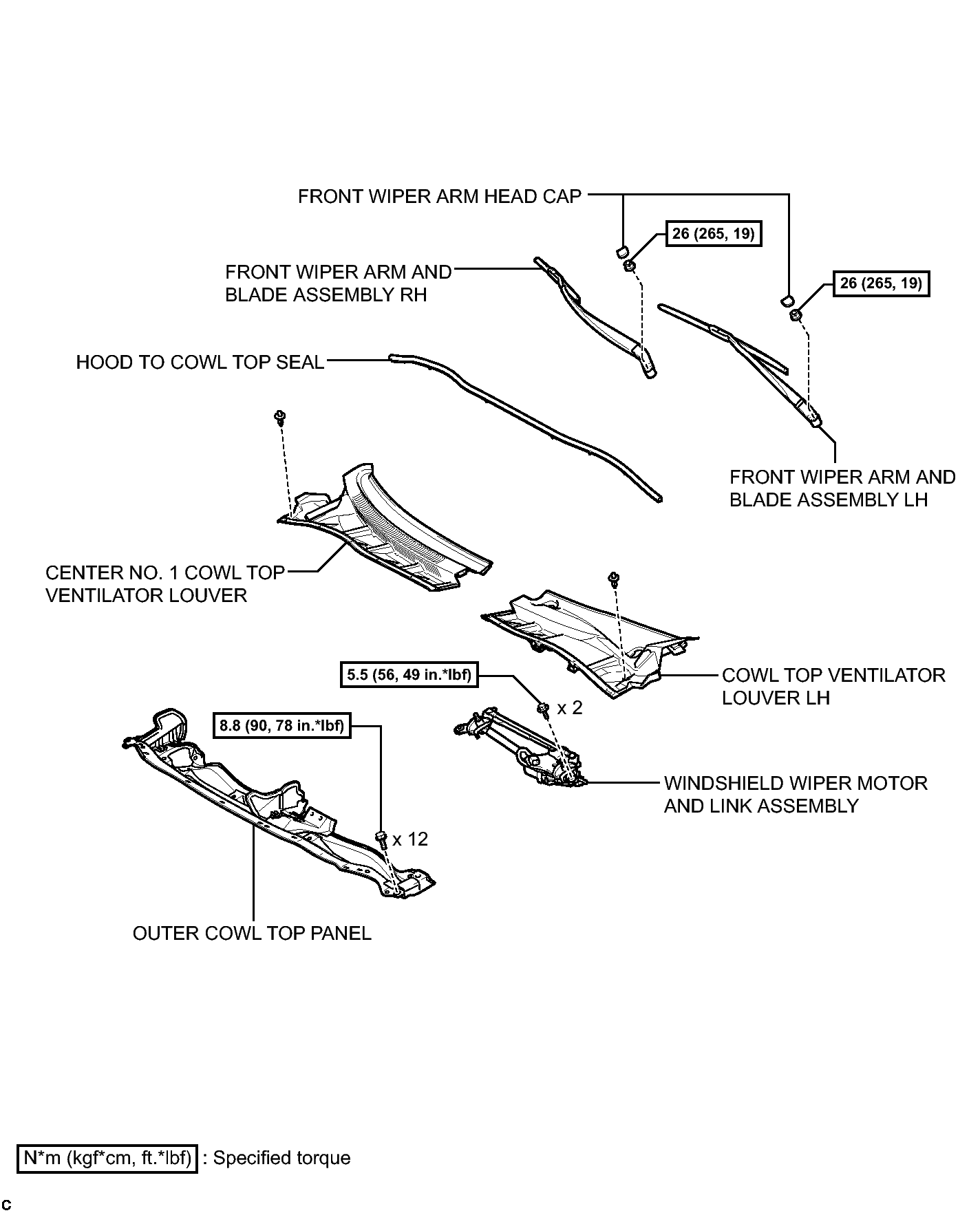

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 5)
GTY204857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 5)
GTY205155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


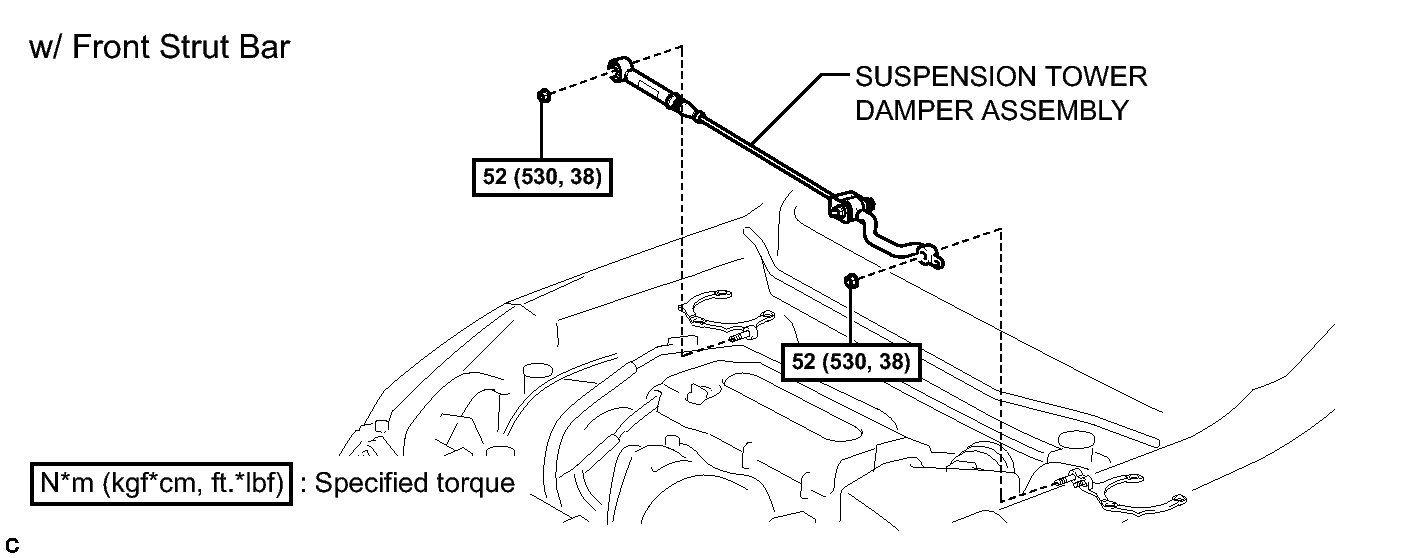

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (3 Of 5)
GTY205154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

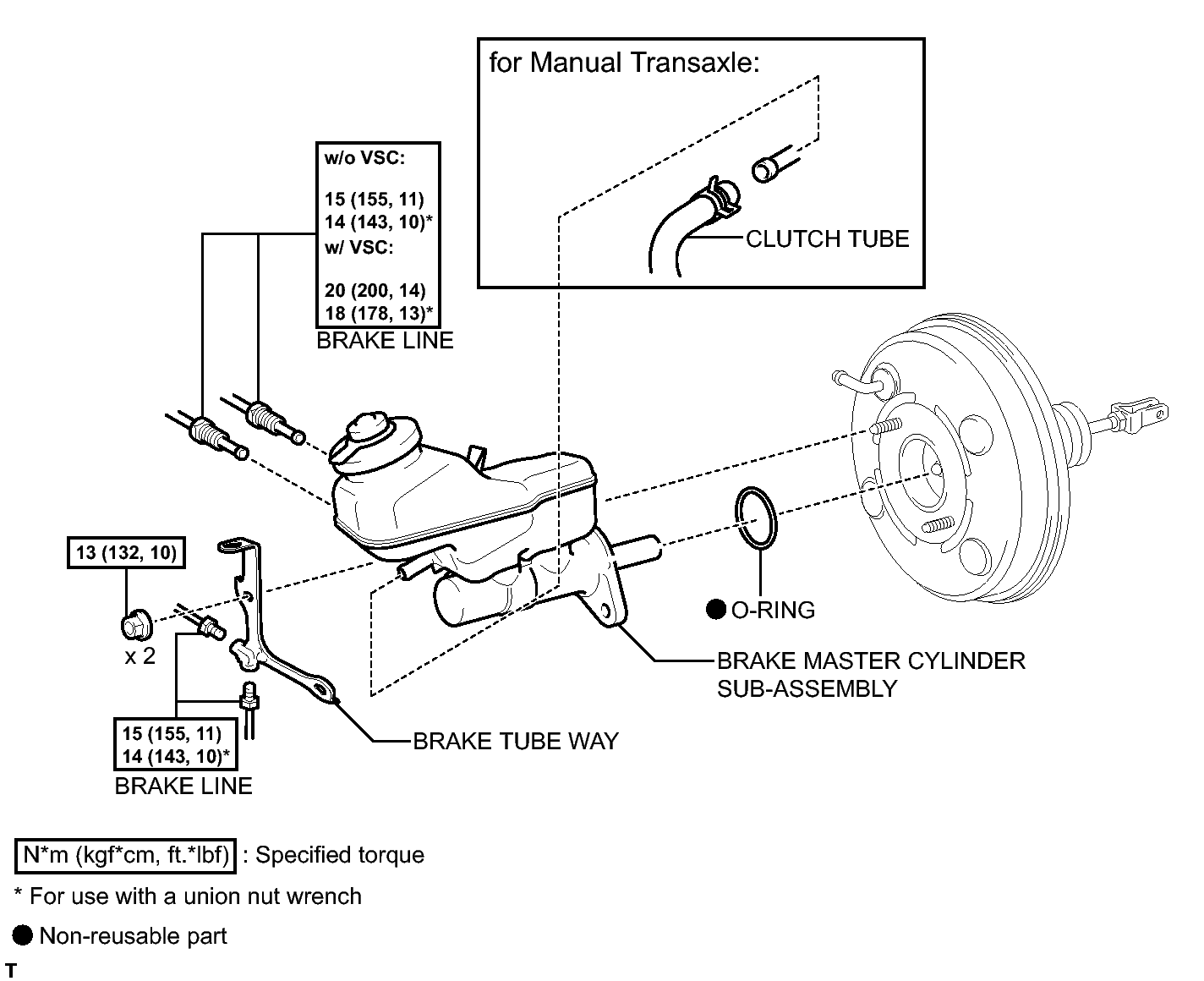

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (4 Of 5)
GTY186973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

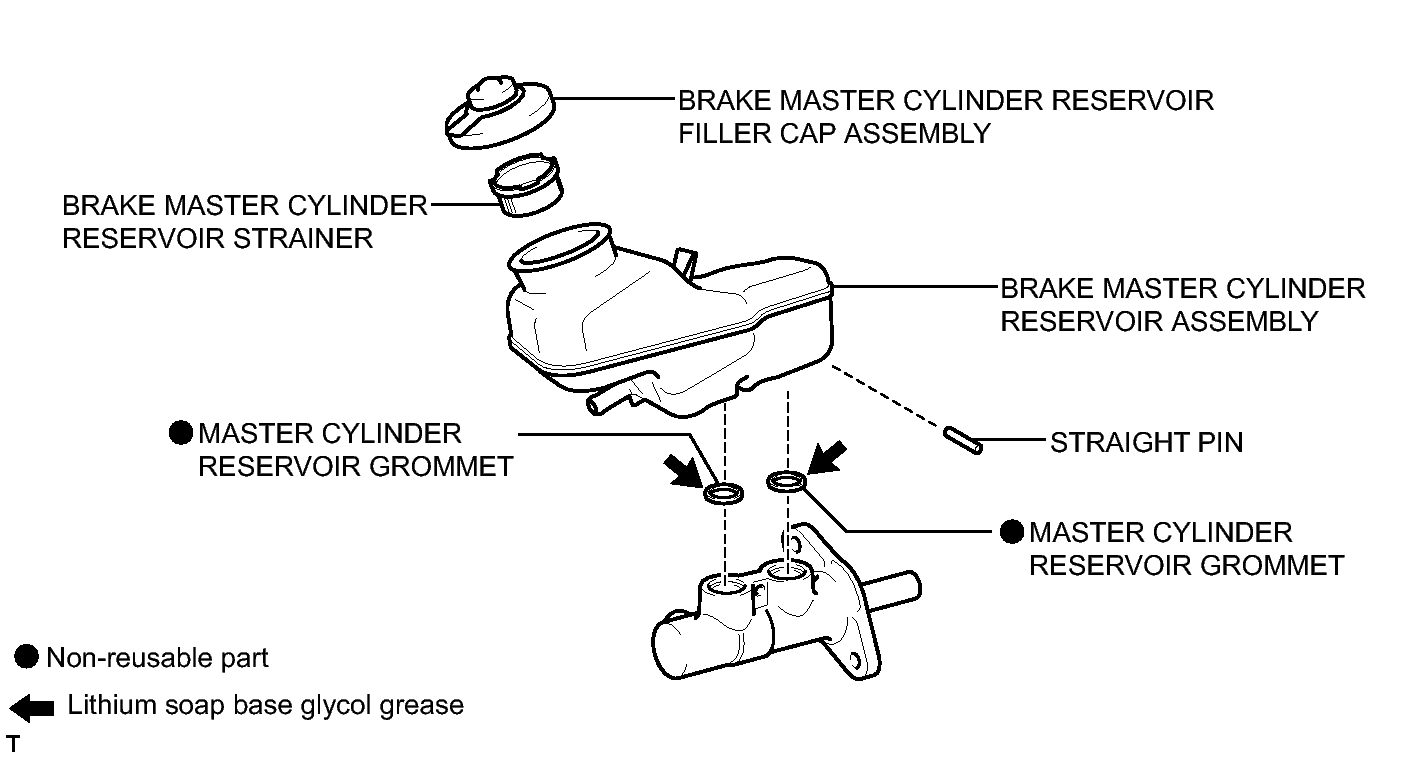

Fig 1: Identifying Brake Master Cylinder Replacement Components (5 Of 5)
GTY204830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
