Starting (w/o Smart Key System) (Except TMC Made)

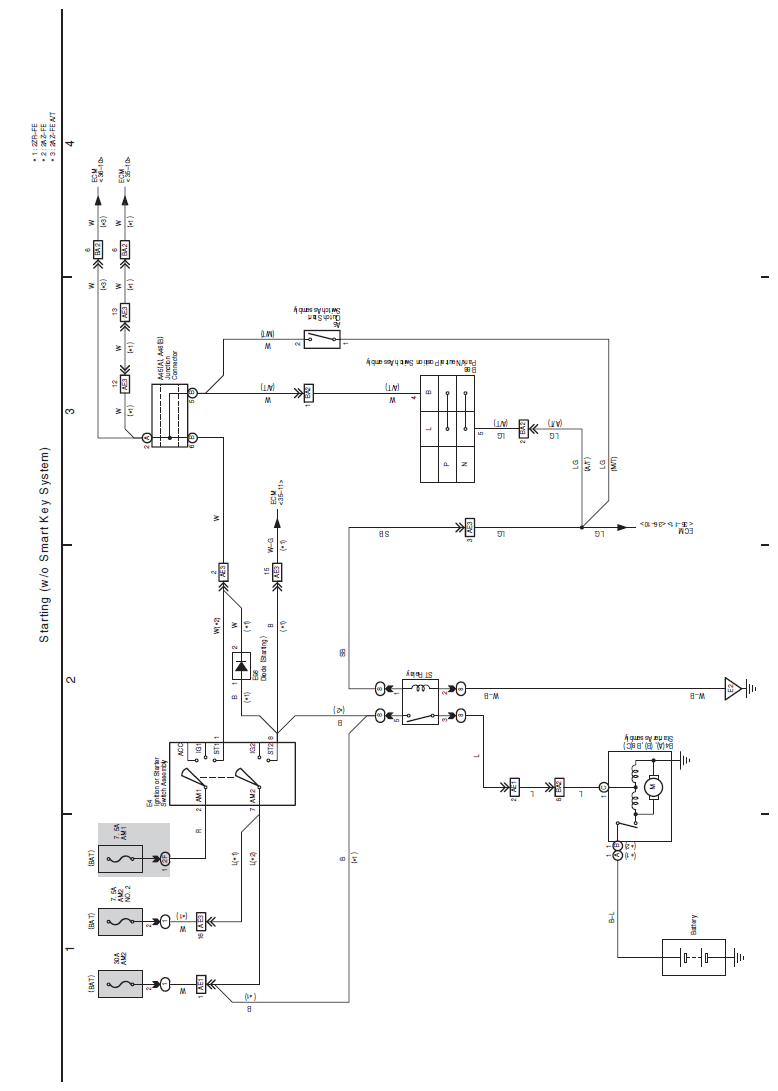

Fig 1: Starting (w/o Smart Key System) - Electrical Wiring Diagram

G07605153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
